MHAS-181-ZMGG-15 datasheet, PDF

MHAS-181-ZMGG-15: Descriptionsocket bga 181pos; CategoryThe connector socket; File Size233KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

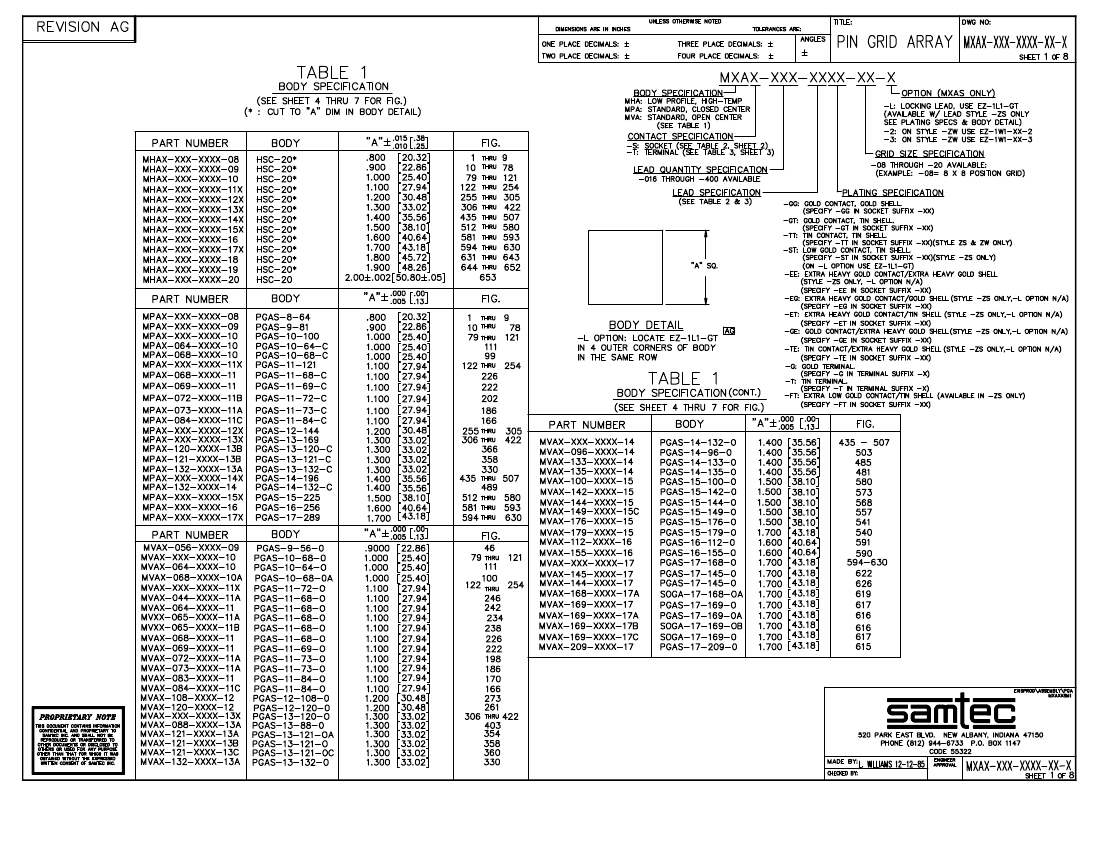

MHAS-181-ZMGG-15 Overview

socket bga 181pos

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	LOW PROFILE
body width	1.5 inch
subject depth	0.132 inch
body length	1.5 inch
Contact structure	15X15
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	BERYLLIUM COPPER
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PGA181
Dielectric withstand voltage	1000VAC V
Shell material	PLASTIC
Insulation resistance	5000000000 Ω
JESD-609 code	e4
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	181
Maximum operating temperature	170 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.1 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

	MHAS-181-ZMGG-15	MVAS-114-ZSGT-13
Description	socket bga 181pos	adaptor pin grid
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	SAMTEC	SAMTEC
Reach Compliance Code	compli	compli
ECCN code	EAR99	EAR99
Other features	LOW PROFILE	ULTRA LOW INSERTION FORCE
body width	1.5 inch	1.3 inch
subject depth	0.132 inch	0.175 inch
body length	1.5 inch	1.3 inch
Contact structure	15X15	13X13
Contact to complete cooperation	GOLD (30) OVER NICKEL (50)	GOLD (30) OVER NICKEL (50)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie	Tin (Sn) - with Nickel (Ni) barrie
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER
Contact style	RND PIN-SKT	RND PIN-SKT
current rating	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET
Type of equipment used	PGA181	PGA114
Dielectric withstand voltage	1000VAC V	1000VAC V
Shell material	PLASTIC	GLASS FILLED POLYESTER
Insulation resistance	5000000000 Ω	5000000000 Ω
JESD-609 code	e4	e3
Plug contact pitch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT
Number of contacts	181	114
Maximum operating temperature	170 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	0.1 mm	0.1 mm
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
