8-1546159-9 datasheet, PDF - EEWORLD Datasheet

8-1546159-9: Descriptionconn barrier block 3circ 11.12mm; CategoryThe connector; File Size148KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8-1546159-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-1546159-9	-	-	View	Buy Now

conn barrier block 3circ 11.12mm

Parameter Name	Attribute value
Datasheets

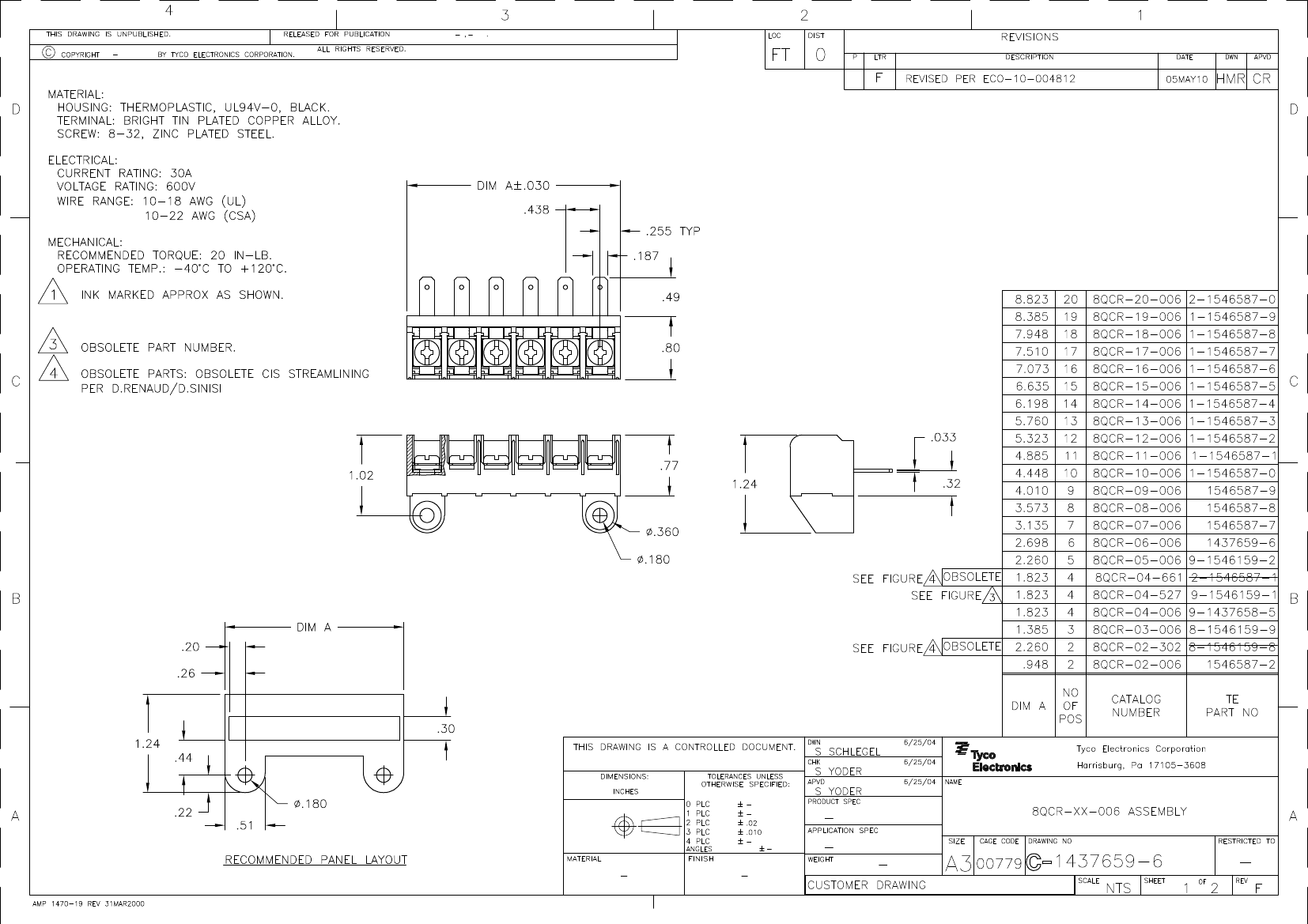

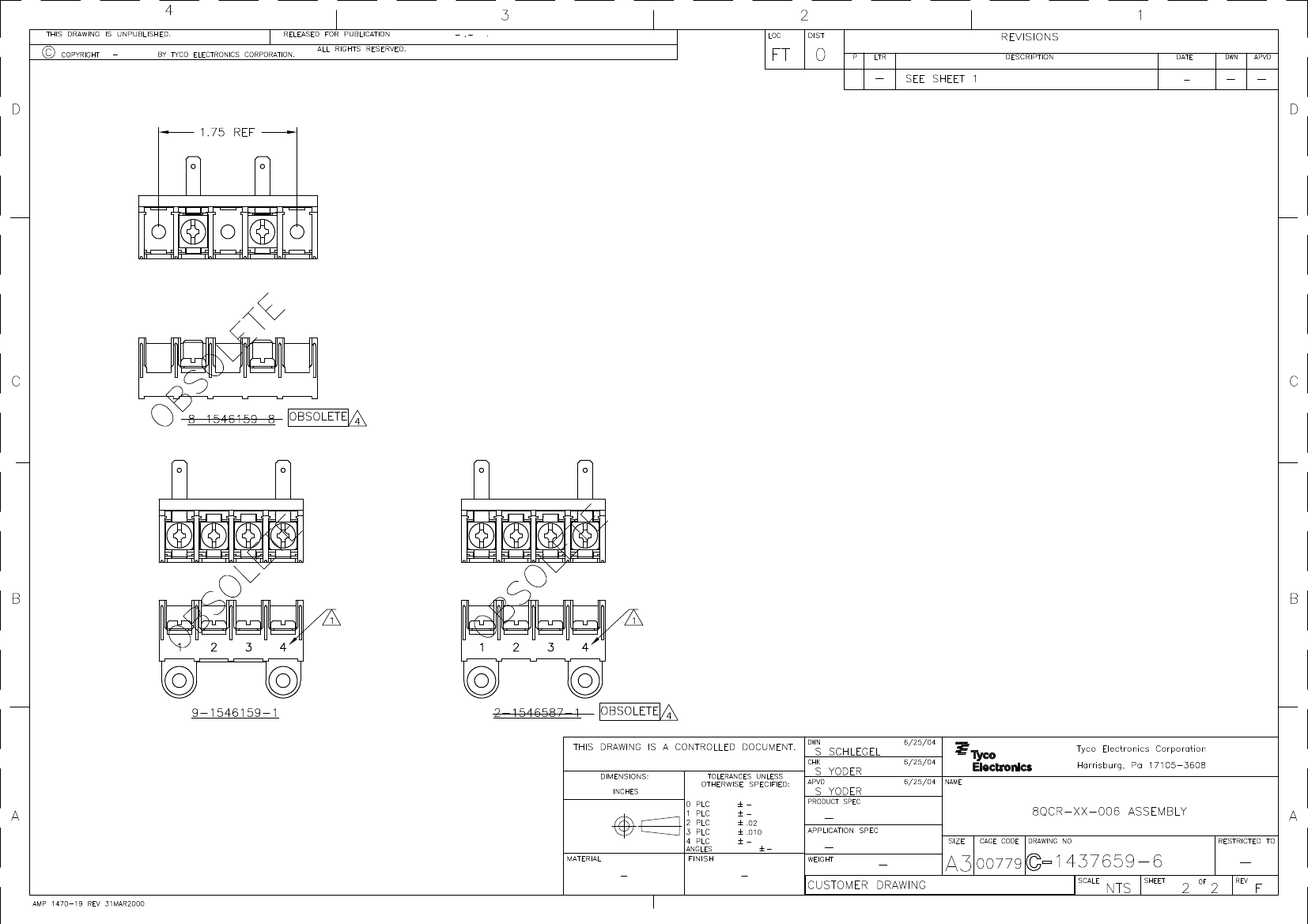

8QCR-xx-006 Assembly
RoHS Informati
8-1546159-9 Statement of Compliance
RoHS 2 Stateme
3D Model
8-1546159-9.pdf
Standard Package	320
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Barrier Block
Number of Circuits	3
Number of Wire Entries	3
Pitch	0.438" (11.12mm)
Number of Rows	1
Current Rating	30A
Voltage Rating	600V
Wire Gauge	10-18 AWG
Top Terminati	Screws with Captive Plate
Bottom Terminati	Quick Connect (0.187")
Barrier Type	3 Wall (Tri)
Features	Flange
Col	Black
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc
Mounting Type	Chassis, Panel
Operating Temperature	-40°C ~ 120°C
Material - Insulati	Thermoplastic
Material Flammability Rating	UL94 V-0
Other Names	8QCR-03-006

	8-1546159-9	1437659-6
Description	conn barrier block 3circ 11.12mm	conn barrier block 6circ 11.12mm
Standard Package	320	480
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk
Terminal Block Type	Barrier Block	Barrier Block
Number of Circuits	3	6
Number of Wire Entries	3	6
Pitch	0.438" (11.12mm)	0.438" (11.12mm)
Number of Rows	1	1
Current Rating	30A	30A
Voltage Rating	600V	600V
Wire Gauge	10-18 AWG	10-18 AWG
Top Terminati	Screws with Captive Plate	Screws with Captive Plate
Bottom Terminati	Quick Connect (0.187")	Quick Connect (0.187")
Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Features	Flange	Flange
Col	Black	Black
Terminal Screw Material	Steel	Steel
Terminal Screw Finish	Zinc	Zinc
Mounting Type	Chassis, Panel	Chassis, Panel
Operating Temperature	-40°C ~ 120°C	-40°C ~ 120°C
Material - Insulati	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Other Names	8QCR-03-006	8QCR-06-006
