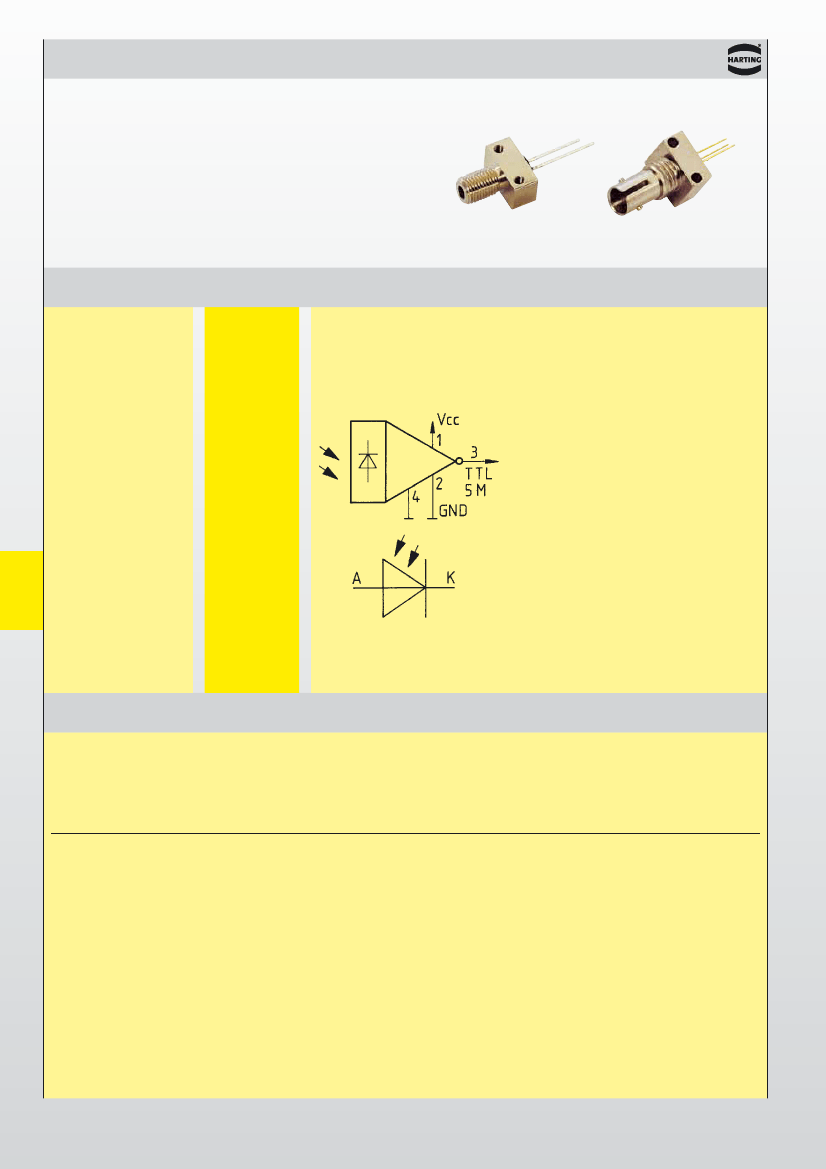

Electro-Optic Converters
Identification
Part No.
Drawing
The mounted, integrated
receivers are suitable for
applications in combination
with glass fibre as well as
polymer fibre.
Dimensions of housing see
page F70.01.
Dimensions in mm
F.O. receiver
for PBC mounting
receptacle (metall)
TTL 5 Mbit/s
in F-SMA housing
in F-ST housing
20 50 000 2112
20 50 000 2222
Si-PIN Fotodiode*
in F-SMA housing
in F-ST housing
Serial
Interfaces
20 50 000 2119
20 50 000 2229
* Technical data
on request
Technical characteristics
General data at T = 25 °C
Receiver type
Supply voltage
Supply current
Opt. power input
(minimum value)
Fan out
Storage temperature
Operating temperature
T
Str
V
CC
I
CC
:
:
:
:
:
0 ... 5 MBit/s
(DC coupled)
4.5 ... 5.5 V DC
15 mA max.
3 µW min.
5 µW min.
4
–65 °C ... + 100 °C
–55 °C ... + 70 °C
T
Opr
:
F
70
.
02
1)
The technical specifications for the
SERCOS
1)
-Interface
are fulfilled by the LED 660 nm and the receiver
5 MBit/s.
SERCOS =
SEriell Realtime COmmunication System
Stock items in bold type
