1-1776301-0 Overview

conn terminal block 5circ 10mm

1-1776301-0 Parametric

Parameter Name	Attribute value
Datasheets
1776301
RoHS Informati
1-1776301-0 Statement of Compliance
RoHS 2 Stateme
3D Model
1-1776301-0.pdf
Standard Package	100
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Eurostyle Terminal Stri
Number of Circuits	5
Number of Wire Entries	10
Pitch	0.394" (10.00mm)
Number of Rows	2
Current Rating	16A
Voltage Rating	400V
Wire Gauge	12-22 AWG
Top Terminati	Screws
Bottom Terminati	Closed
Barrier Type	Enclosed
Features	Fuse
Col	Gray
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc, Non-Hexavalent Chromate
Mounting Type	Chassis, Panel
Operating Temperature	-35°C ~ 100°C
Material - Insulati	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	-
Other Names	1-1776301-0-ND503SI05DSA111965

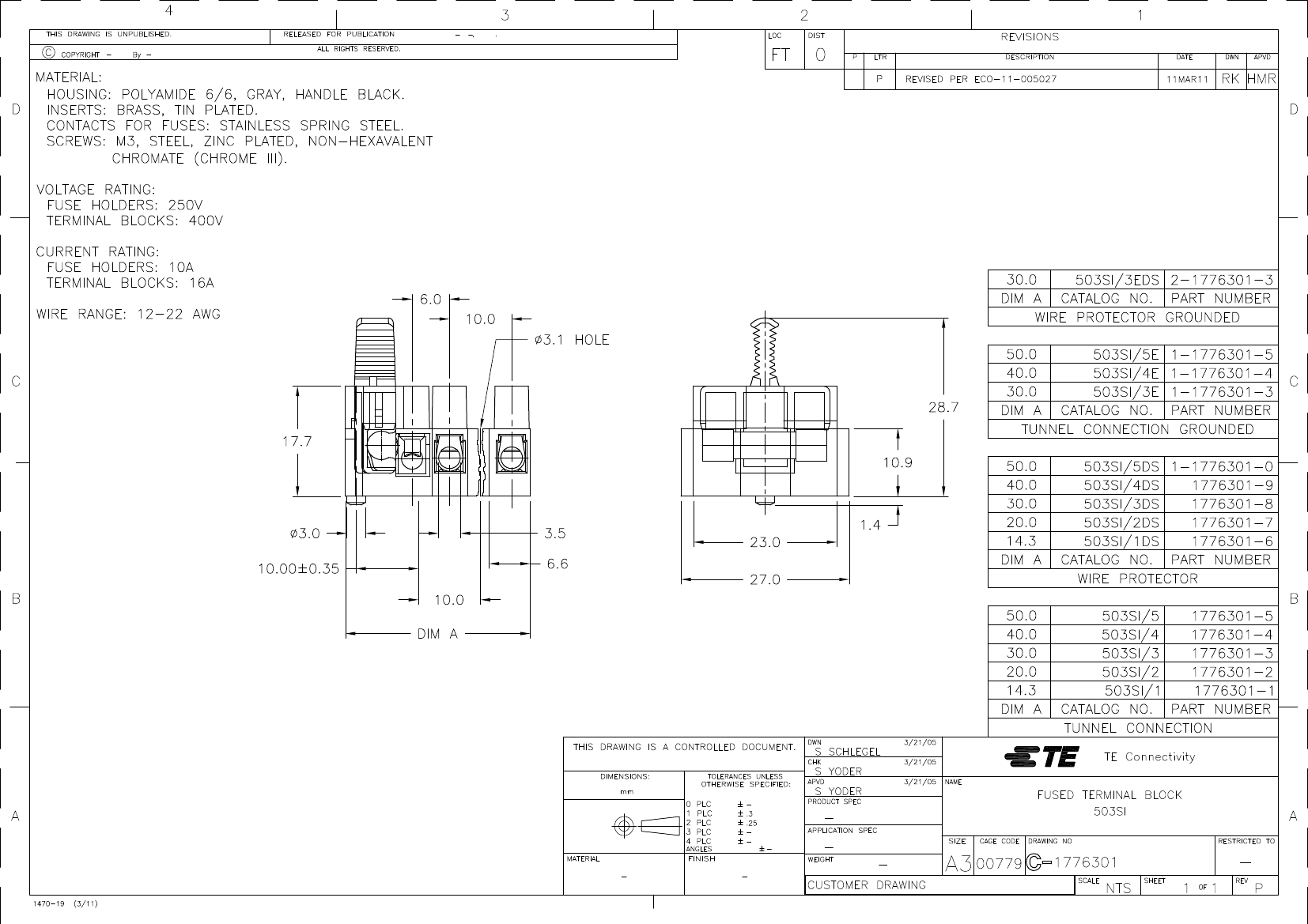

Preview

Download Datasheet

View All

1-1776301-0 Related Products

	1-1776301-0	1776301-6	1776301-7	2-1776301-3	1776301-8
Description	conn terminal block 5circ 10mm	conn terminal block 1circ 10mm	conn terminal block 2circ 10mm	conn terminal block 3circ 10mm	conn terminal block 3circ 10mm
Standard Package	100	100	300	200	200
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Terminal Block Type	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri
Number of Circuits	5	1	2	3	3
Number of Wire Entries	10	2	4	6	6
Pitch	0.394" (10.00mm)	-	0.394" (10.00mm)	0.394" (10.00mm)	0.394" (10.00mm)
Number of Rows	2	2	2	2	2
Current Rating	16A	16A	16A	16A	16A
Voltage Rating	400V	400V	400V	400V	400V
Wire Gauge	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG
Top Terminati	Screws	Screws	Screws	Screws	Screws
Bottom Terminati	Closed	Closed	Closed	Closed	Closed
Barrier Type	Enclosed	Enclosed	Enclosed	Enclosed	Enclosed
Features	Fuse	Fuse	Fuse	Fuse	Fuse
Col	Gray	Gray	Gray	Gray	Gray
Terminal Screw Material	Steel	Steel	Steel	Steel	Steel
Terminal Screw Finish	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate
Mounting Type	Chassis, Panel	Chassis, Panel	Chassis, Panel	Chassis, Panel	Chassis, Panel
Operating Temperature	-35°C ~ 100°C	-35°C ~ 100°C	-35°C ~ 100°C	-35°C ~ 100°C	-35°C ~ 100°C
Material - Insulati	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Other Names	1-1776301-0-ND503SI05DSA111965	1776301-6-ND503SI01DSA112774	1776301-7-ND503SI02DSA112775	503SI03EDS	1776301-8-ND503SI03DSA112776
