S102K54K2000.02%: DescriptionRESISTOR, METAL FOIL, 0.6W, 0.02%, 4.5ppm, 54200ohm, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size107KB，2 Pages; ManufacturerTexas Components Corporation

Download Datasheet Parametric View All

S102K54K2000.02% Overview

RESISTOR, METAL FOIL, 0.6W, 0.02%, 4.5ppm, 54200ohm, THROUGH HOLE MOUNT, RADIAL LEADED

S102K54K2000.02% Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1822149955
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PRECISION
JESD-609 code	e0
Manufacturer's serial number	S
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Package shape	RECTANGULAR PACKAGE
Rated power dissipation(P)	0.6 W
Rated temperature	70 °C
resistance	54200 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL FOIL
Temperature Coefficient	4.5 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE
Tolerance	0.02%
Operating Voltage	300 V

Preview

Download Datasheet

View All

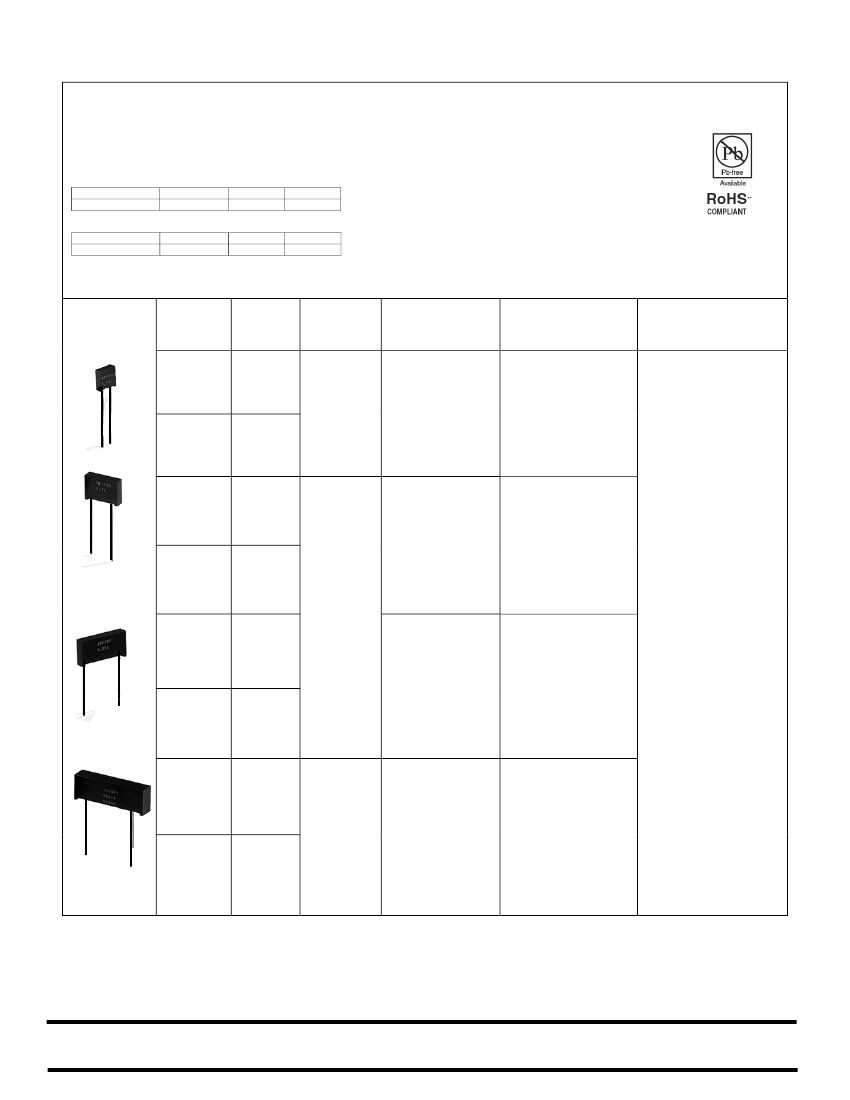

PRECISION BULK METAL® FOIL TECHNOLOGY

S Series

High Performance Aerospace and Instrumentation Resistors

FEATURES

From -55°C to +125°C with 25

°C

as reference:

•S102K

Series Nominal Temperature Coefficient of Resistance:

Resistance value 80

Ω

to 100KΩ 50Ω to 80Ω 1Ω to 50Ω

TCR

1±2.5 ppm

1±3.5 ppm 1±4.5 ppm

•S102C

Series Nominal Temperature Coefficient of Resistance:

Resistance value 80

Ω

to 150KΩ 50Ω to 80Ω 1Ω to 50Ω

TCR

2±2.5 ppm

2±3.5 ppm 2±4.5 ppm

•Selected

TCR Tracking: to 0.5 ppm/°C (matched sets)

•Power

Rating: 0.6 to 2.0 Watts a +70°C; 0.3 to 1.0 Watts at

+125°C (depending on model)

•Load

Life Stability:± 50ppm Max∆R (@70°C, 2,000 hrs at rated

power)

•Resistance

Tolerance (Initial Resistance Accuracy):

±0.005%

tightest to

±1.0%

loosest (depends on resistor value)

•Resistance

Range: 0.5Ω to 1 MΩ

•Current

Noise: 0.010

µV

(RMS) / Volt of Applied Voltage

•Thermal

EMF: 0.1

µV

°C

Maximum; 0.05

µV

°C

Typical;

µV

/ Watt (Model S102C, S102K)

•Rise/Decay

Time: 1.0 Nanosecond @ 1KΩ

•For

better TCR performance please review the Z201 datasheet.

•Terminal

finishes available: lead free or tin/lead alloy.

Model

S102C

Value

Range

Ω

150K

Ω

100K

Ω

500K

Ω

300K

Ω

Max

Voltage

Power

70ºC 125ºC

0.6W

0.3W

up to 100KΩ

Dimensions

W: 0.105 ±0.010

L: 0.300 ±0.010

H: 0.326 ±0.010

ST: 0.010 Min

SW: 0.040 ±0.005

LL: 1.000 ±0.125

LS: 0.150 ±0.005

Tolerances

Available

(S102J)

300

0.4W

0.2W

over 100KΩ

1.0W

0.5W

up to 200KΩ

S102K

(S102L)

S104D

S104K

350

0.6W

0.3W

over 200KΩ

1.5W

0.75W

up to 300KΩ

W: 0.160 Max

L: 0.575 Max

H: 0.413 Max

ST: 0.035 ±0.005

SW: 0.050 ±0.005

LL: 1.000 ±0.125

LS: 0.400 ±0.020

W: 0.160 Max

L: 0.820 Max

H: 0.413 Max

ST: 0.035 ±0.005

SW: 0.050 ±0.005

LL: 1.000 ±0.125

LS: 0.650±0.020

W: 0.260 Max

L: 1.200 Max

H: 0.413 Max

ST: 0.035 ±0.005

SW: 0.050 ±0.005

LL: 1.000 ±0.125

LS: 0.900±0.0

S105D

Ω

750K

Ω

500K

Ω

0.5

Ω

0.5

Ω

600K

Ω

±0.005%:

±0.01%:

±0.02%:

±0.05%:

±0.1%:

±0.25%:

±0.5%:

±1.0%:

50Ω - 2MΩ

10Ω - 2MΩ

5Ω - 2MΩ

2Ω - 2MΩ

1Ω - 2MΩ

0.5Ω - 2MΩ

S105K

0.8W

0.4W

over 300KΩ

S106D

2.0W

1.0W

up to 400KΩ

500

1.0W

0.5W

over 400KΩ

S106K

S102J and S102L resistors have a 0.2” lead space.

Texas Components can build single resistors to 250K

and is approved to DSCC Dwg. 89039

For an axial lead version of the S Series, we also produce the TXA Series

Rev.10/09

Texas Components Corporation

•

1716 West Sam Houston Parkway North

•

Houston, TX 77043

Phone:(713)468-3882

•

Fax: (713)461-2098

•

Website: www.texascomponents.com
