125 °C
DIN series
High reliability
GSG
Long lifetime at 125°C
PCB solder pins
RoHS compliant
REACH compliant
Features
•
•
•
•
•
All internal contact welded
High temp 125°C
High CV product
High performance
Low temperature – 55°C
Applications
•
•
•
•
HiFi
Automotive
Consumer
Traction
Different case sizes, voltages and
capacitance combinations
are available on request.
Also in small lots.
General specifications
Items
Rated capacitance range C
R
Capacitance tolerance
Rated voltage range U
R
Surge voltage U
S
Max. reverse voltage
Category temperature range
Leakage current I
L
after 5 min @ U
R
Useful life
2000 h @ 125 °C ; U
R
; I
R~
Characteristics
1.200 … 130.000 µF
± 20%
16 … 63 V
U
S
= 1,15 U
R
2V
- 55°C ... + 125°C
≤ 0,006 * C
R
[µF] * U
R
[V] + 6 µA [µA]
Δ C/C ≤ 30 % of initial value
ESR ≤ 300 % of specified limit
I
L
≤ specified limit
Δ C/C ≤ 20 % of initial value
ESR ≤ 130 % of specified limit
I
L
≤ specified limit
55/125/56
≥ 2500 V AC
IEC 60384-4
Endurance test
Climatic category IEC 60068
1000 h @ 125 °C , U
R
Voltage proof of the external insulation
Sectional specification
Fischer & Tausche Capacitors
Husum / Germany
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
81
125 °C

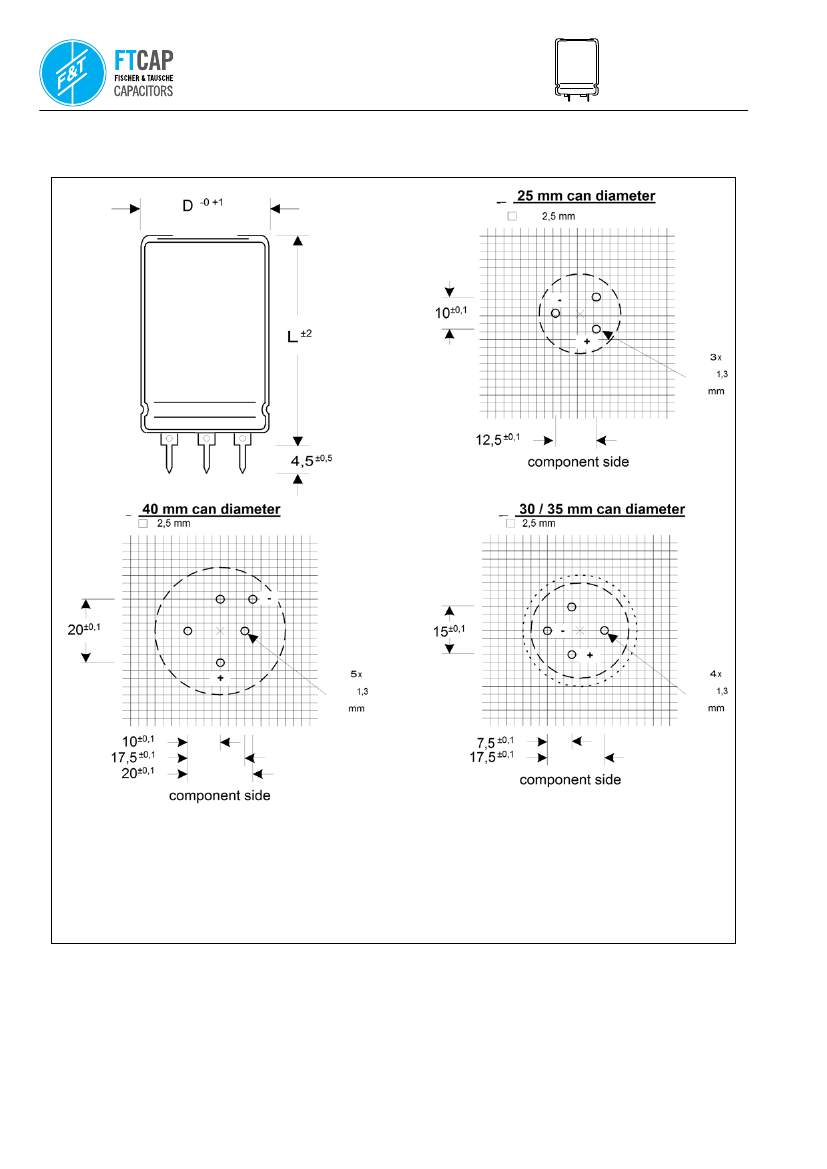

Drawings and mounting pin layout of the series GSG capacitors
GSG
Fig 1: Dimensions of the series GSG and mounting hole layouts for D = 25 … 40 mm
NC terminals must be soldered to isolated pads or pads connected to the minus potential.
Fischer & Tausche Capacitors
Husum / Germany
82
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
125 °C
Electrical data and ordering code for series GSG
Rated
voltage
U
R
[V]
Rated cap.
C
R
[µF]
10000
15000
18000
18000
27000
39000
39000
47000
82000
82000
100000
120000
130000
6800
10000
15000
15000
18000
27000
27000
39000
47000
56000
68000
68000
100000
Case size Typ. ESR Ripple
current
100 Hz, IR~
D x L [mm] 20°C 100 Hz,
[mΩ] 125°C [A]
25x30
30x30
25x50
35x30
30x50
30x70
35x50
40x50
35x80
40x80
45x80
40x100
45x100
25x30
30x30
25x50
35x30
30x50
30x70
35x50
40x50
35x80
45x80
40x80
40x100
45x100
40
27
22
22
15
10
10
8
5
5
4
4
4
47
32
21
21
18
12
12
8
7
6
5
5
3
2,7
3,6
4,3
4,3
5,8
7,9
7,6
8,8
14,6
13,9
15,4
16,9
17,5
2,5
3,3
4,4
4,4
5,3
7,4
7,1
9,0
11,3
12,9
14,2
15,5
18,8
Order code
GSG...
10301625030
15301630030
18301625050
18301635030
27301630050
39301630070
39301635050
47301640050
82316350100
82301640080
10401645080
12401640100
13401645100
68202525030
10302530030
15302525050
15302535030
18302530050
27302530070
27302535050
39302540050
47302535080
56302545080
68302540080
68302540100
10402545100
Rated
voltage
U
R
[V]
Rated cap.
C
R
[µF]
2700
3900
4700
6800
8200
10000
12000
15000
18000
22000
27000
27000
39000
1800
2700
3900
3900
5600
6800
8200
10000
12000
18000
22000
22000
27000
Case size Typ. ESR Ripple
current
100 Hz, IR~
D x L [mm] 20°C 100 Hz,
[mΩ] 125°C [A]
25x30
30x30
25x50
35x30
30x50
35x50
30x70
40x50
35x80
40x80
45x80
40x100
45x100
25x30
30x30
25x50
35x30
30x50
35x50
30x70
40x50
35x80
40x80
45x80
40x100
45x100
71
49
41
28
23
19
16
13
11
9
7
7
5
80
53
37
37
26
21
17
14
12
8
7
7
5
2,0
2,7
3,2
4,0
4,7
5,7
6,5
7,4
9,3
10,8
13,2
13,1
16,8
1,9
2,6
3,4
3,5
4,5
5,5
6,2
7,0
8,7
11,2
13,8
13,6
16,2
GSG
Order code
GSG...
27204025030
39204030030
47204025050
68204035030
82204030050
10304035050
12304030070
15304040050
18304035080
22304040080
27304045080
27304040100
39304045100
18206325030
27206330030
39206325050
39206335030
56206330050
68206335050
82206330070
10306340050
12306335080
18306340080
22306345080
22306340100
27306345100
16
40
25
63
Fischer & Tausche Capacitors
Husum / Germany
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
83
125 °C
GSG
Fischer & Tausche Capacitors
Husum / Germany
84
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
info@ftcap.de
