E32D1
Series
• Voltage Controlled Crystal Oscillators (VCXO)
• LVPECL Output
• +3.3V Supply Voltage
• Complementary Output
• Tri-State Output Function (Pad 2)
• External Voltage Control Function
• 6 Pad Ceramic SMD Package
• RoHS Compliant (Pb-Free)
ELECTRICAL SPECIFICATIONS
Frequency Range (MHz)
H
L
W
E32D1
2.0
7.0
5.0
OSCILLATOR
50, 51.84, 52, 52.08, 54, 57.1429, 61.44, 63.36, 65.536, 76.8, 77.76, 100, 104, 106.25, 122.88,
125, 126.72, 128, 153.6, 155.52, 156.25, 159.375, 161.1328, 166.6286, 167.3315, 184.32,
186.666, 200MHz
Operating Temperature Range
0°C to +70°C
-40°C to +85°C
Storage Temperature Range
-55°C to +125°C
Supply Voltage (V
CC
)
3.3V
DC
±5%
Input Current
100mA Maximum
With Load
Frequency Tolerance / Stability
Inclusive of all conditions: Calibration Tolerance at 25°C, ±50ppm or ±25ppm Maximum
Frequency Stability over the Operating Temperature
Range, Supply Voltage Change, Output Load Change, 1st
Year Aging, Shock, and Vibration
Output Voltage Logic High (V
OH
)
V
CC
-1.025V
DC
Minimum
Output Voltage Logic Low (V
OL
)
V
CC
-1.620V
DC
Maximum
Rise Time / Fall Time
1.5 nSeconds Maximum
20% to 80% of waveform
Duty Cycle
50 ±10(%)
at 50% of waveform
50 ±5(%)
Load Drive Capability
50 Ohms into V
CC
-2.0V
DC
Control Voltage (V
C
)
1.65V
DC
±1.65V
DC
Test Conditions for Frequency Deviation
Control Voltage Range (V
CR
)
0.0V
DC
to V
CC
+0.5V
DC
Frequency Deviation
±75ppm Minimum
Inclusive of Operating Temperature Range, Supply
Voltage Change, and Output Load Change
Linearity
20%, 15%, or 10% Maximum
Transfer Function
Positive Transfer Characteristic
Modulation Bandwidth (MBW)
10kHz Minimum
Measured at -3dB with Contol Voltage of +1.65V
DC
Input Impedance (Z
I
)
50kOhms Typical
Typical Phase Noise (Fo = 155.520MHz)
at 10Hz Offset
-55dBc/Hz
-90dBc/Hz
at 100Hz Offset
-120dBc/Hz
at 1kHz Offset
-140dBc/Hz
at 10kHz Offset
-145dBc/Hz
at 100kHz Offset
-148dBc/Hz
at 1MHz Offset
Logic Control/Additional Output
Tri-State Enable Low / Complementary Output
Tri-State Input Voltage
Disables Outputs: High Impedance
V
IH
of 70% of V
CC
Minimum
Enables Output
No Connection
Enables Output
V
IL
of 30% of V
CC
Maximum
RMS Phase Jitter
0.4pSec Typical, 1pSec Maximum
FJ = 12kHz to 20MHz
Accumulated Period Jitter (t
acc
)
4pSec Typical, 5pSec Maximum
Sigma of Total Jitter Distribution
Period Jitter (t
rj
)
3pSec Typical, 5pSec Maximum
Sigma of Random Jitter
Period Jitter (t
rms
)
3pSec Typical, 5pSec Maximum
Sigma of Total Jitter Distribution
Period Jitter (t
dj
)
4pSec Typical, 10pSec Maximum
Deterministic Jitter
Period Jitter (t
p-p
)
27pSec Typical, 40pSec Maximum
Peak to Peak of Jitter Distribution
Start Up Time
10 mSeconds Maximum
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E32D1
CERAMIC
3.3V
OS3Y
01/11
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
PART NUMBERING GUIDE
E32D1 E E A 2 K - 155.520M TR
FREQUENCY TOLERANCE & STABILITY/
OPERATING TEMPERATURE RANGE
D=±50ppm Maximum over 0°C to +70°C
E=±25ppm Maximum over 0°C to +70°C
H=±50ppm Maximum over -40°C to +85°C
FREQUENCY DEVIATION
E=±75ppm Minimum
LINEARITY
A=20% Maximum
B=15% Maximum
C=10% Maximum
AVAILABLE OPTIONS
Blank=Bulk
TR=Tape & Reel
FREQUENCY
LOGIC CONTROL / ADDITIONAL OUTPUT
K=Tri-State (Enable Low) / Complementary Output
DUTY CYCLE
1=50% ±10%
2=50% ±5%

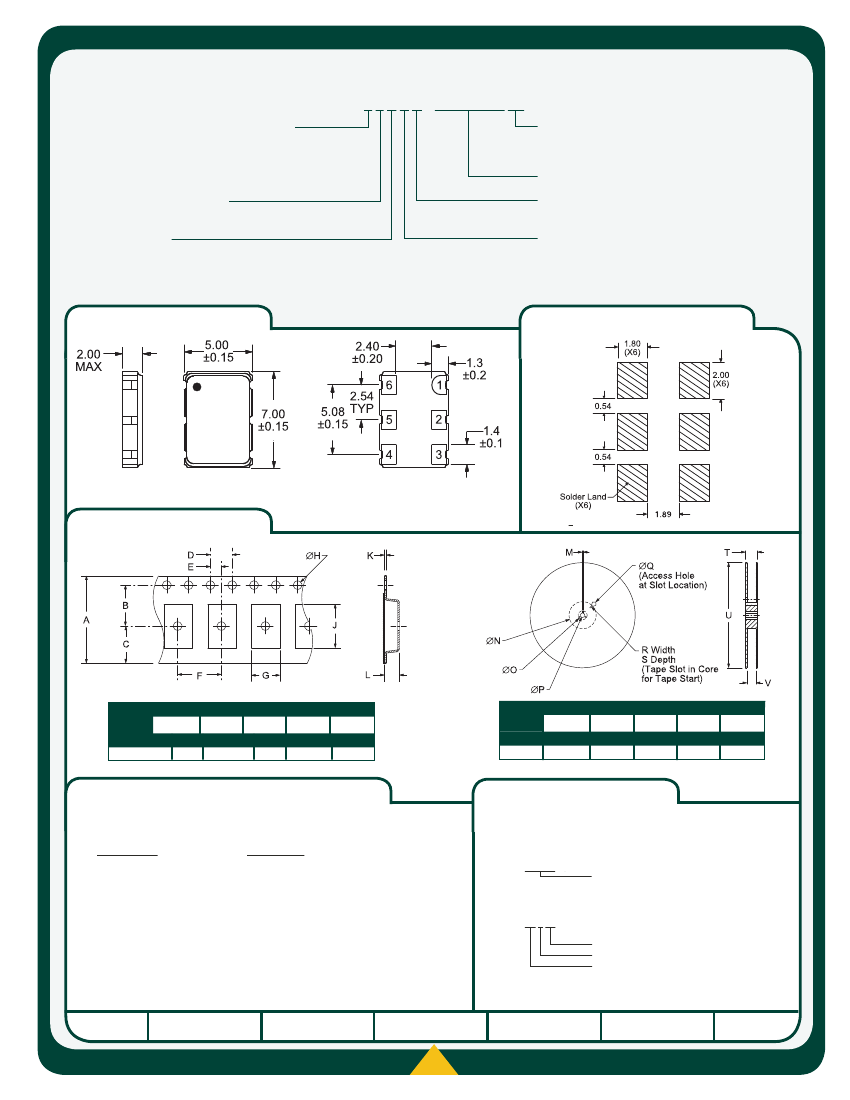

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Voltage Control
Pin 2: Tri-State
Pin 3: Case Ground
Pin 4: Output
Pin 5: Complementary Output
Pin 6: Supply Voltage
Tolerances= +0.1
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
TAPE
A
16±.3-.1
B
7.5±.1
C
6.75±.1
D
4 ±.1
E
2±.1
F
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
1,000
F
8±.1
G
B0*
H
1.5 +.1-0
J
A0*
K
.3 ±.05
L
K0*
R
2.5 MIN
S
10 MIN
T
22.4 MAX
U
360 MAX
V
16.4+2-0
*Compliant to EIA 481A
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
MARKING SPECIFICATIONS
Line 1: ECLIPTEK
Characteristic
Fine Leak Test
Gross Leak Test
Mechanical Shock
Vibration
Solderability
Temperature Cycling
Resistance to Soldering Heat
Resistance to Solvents
Specification
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-883, Method 2007, Condition A
MIL-STD-883, Method 2002
MIL-STD-883, Method 1010
MIL-STD-202, Method 210
MIL-STD-202, Method 215
Line 2: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
Line 3: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
MANUFACTURER
CATEGORY
SERIES
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
E32D1
CERAMIC
3.3V
OS3Y
01/11
800-ECLIPTEK www.ecliptek.com for latest revision
Specifications subject to change without notice.
