8512-R51-05-SH: DescriptionD Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size312KB，2 Pages; ManufacturerECS; Websitehttp://www.ecsxtal.com/

Download Datasheet Parametric View All

8512-R51-05-SH Overview

D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, #4-40, Receptacle

8512-R51-05-SH Parametric

Parameter Name	Attribute value
Objectid	1322406585
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.61 inch
subject depth	0.622 inch
body length	2.156 inch
Body/casing type	RECEPTACLE
Connector type	OTHER D TYPE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	1000000000 Ω
Plug contact pitch	0.085 inch
Match contact row spacing	0.16 inch
Installation option 1	#4-40
Installation option 2	SCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.064 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.187 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

CC

S

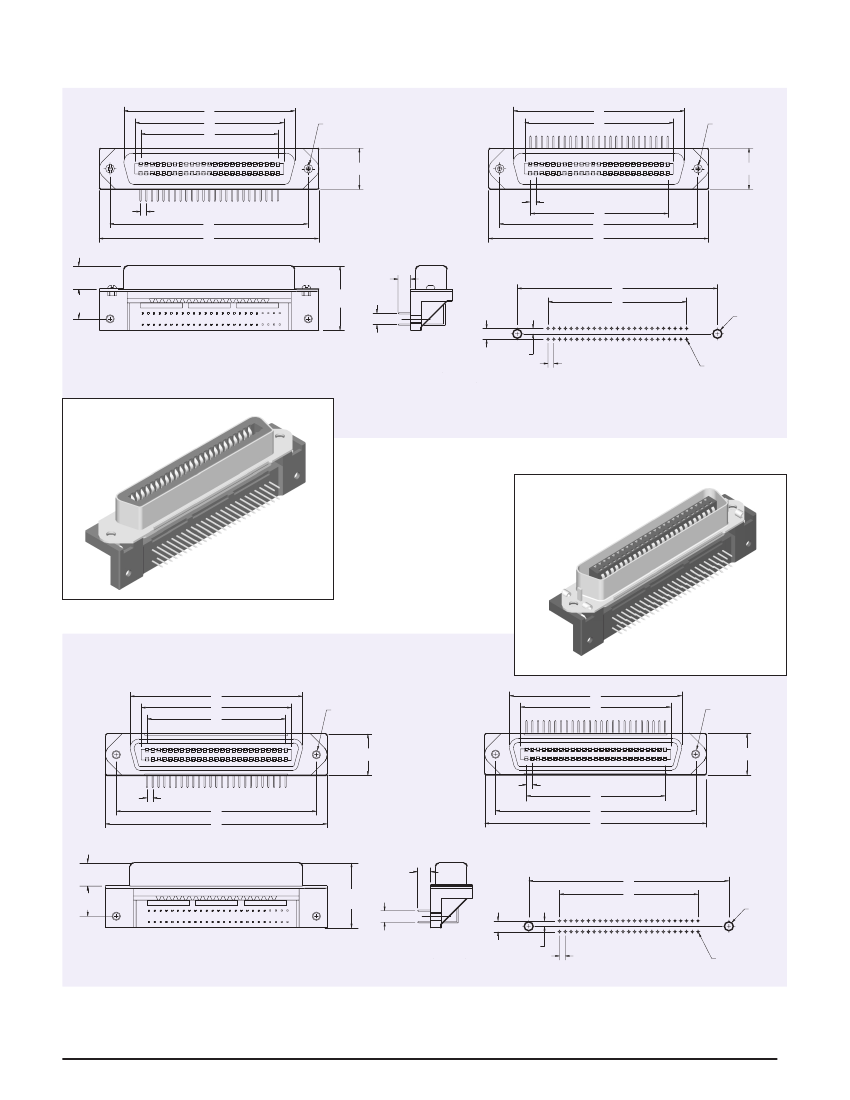

8500 Series Ribbon Connectors

Plug and Receptacle Right Angle

Specifications

Insulator Material: Glass filled polyester, Thermoplastic,

94-VO, UL Recognized.

Contact Material: Phosphor Bronze Alloy CA510

Contact Plating: Gold over 50µ” Nickel, and

tin-lead (See part numbering for

thicknesses).

Contact Resistance:

20m ohms max. at 1 AMP DC.

Insulation Resistance:

1000M ohms at 500 V DC.

Dielectric Withstand Voltage:

1000 V AC/rms 60Hz for 1 min.

Current Rating:

3 AMP.

Voltage Rating:

250 V AC/rms at 60Hz.

Shell Plating:

Steel, 100µ” Tin over 50µ” min. Nickel.

Features

• Available in selective gold plate at contact point

• Many other custom options available,

consult factory

R

C

R

Recognized under the recognized component

Program of Underwriters Laboratories, Inc.

85 XX

SERIES CODE

.085 X .160 Centers

PART NUMBERING

X5 X

XX

SH X

ORIENTATION

1

= Reverse

BLANK

= Standard

50µ” Nickel Underplate

Mating Area

Tail

100µ” Tin Lead

05

= Flash Au

100µ” Tin Lead

20

= 15µ” Gold

100µ” Tin Lead

30

= 30µ” Gold

NO. CONTACT PAIRS

07, 12, 18, 25

CONNECTOR STYLE

P

= Plug

R

= Receptacle

5

= Right Angle

PLATING

MOUNTING STYLE

TAIL STYLE

CONNECTOR - BOARD

1

= #4-40 Screw - #4-40 UNC

- Board Lock

2

= Bail Latch

3

= #4-40 Screw - Board Lock

4

= #4-40 UNC - Board Lock

Consult Factory for other Mounting Styles

CONTACTS

A

1.004 [25.50]

1.421 [36.10]

1.936 [49.18]

2.537 [64.45]

B

0.679 [17.24]

1.102 [27.98]

1.609 [40.88]

2.209 [56.10]

C

0.988 [25.10]

1.409 [35.80]

1.925 [48.90]

2.522 [64.06]

D

0.697 [17.70]

1.131 [28.74]

1.638 [41.60]

2.232 [56.70]

E

0.510 [12.96]

0.935 [23.76]

1.446 [36.72]

2.041 [51.84]

F

1.732 [44.00]

2.156 [54.76]

2.670 [67.82]

3.265 [82.92]

G

1.417 [36.00]

1.843 [46.80]

2.350 [59.70]

2.949 [74.90]

14

24

36

50

DIMENSIONS ARE IN INCHES & [MM]

WWW.ECSCONN.COM
