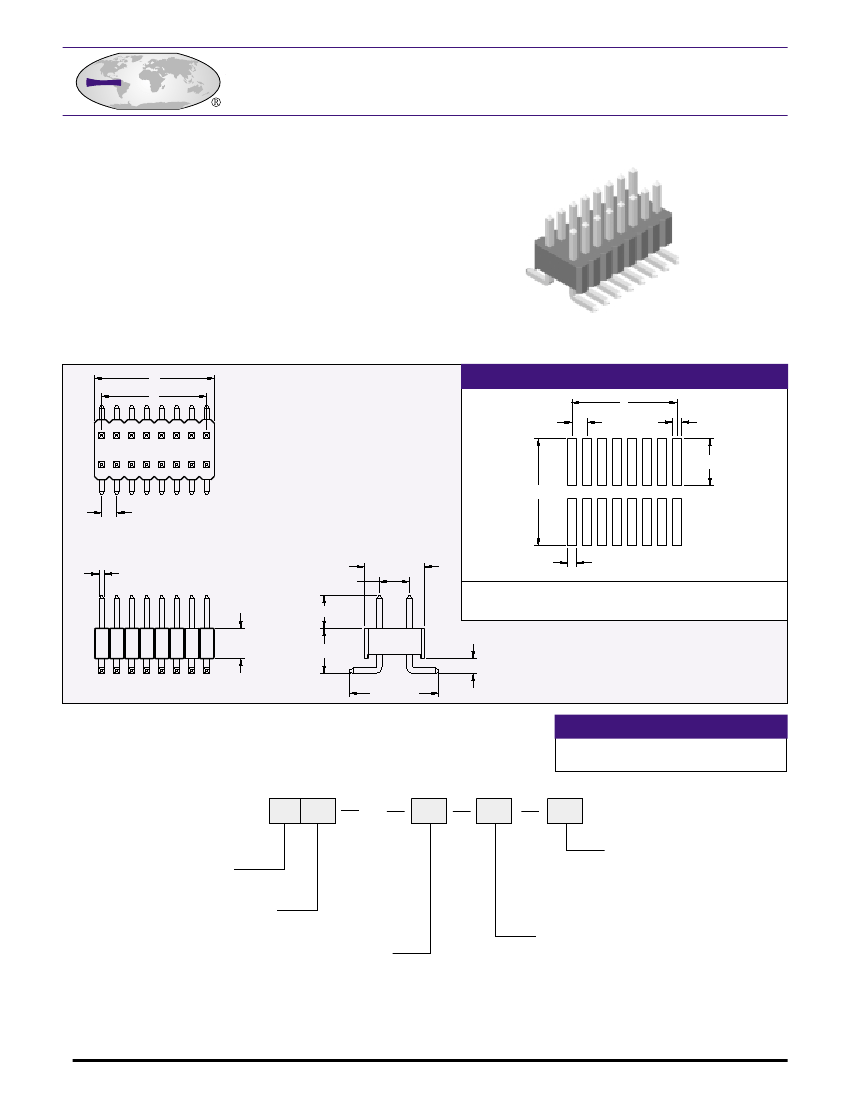

Specifications
.050 [1.27] x .100 [2.54] SMT
9600 Series Headers
Insulator Material: Glass filled polyester, Thermoplastic,
94V-O Nylon-6T, UL Recognized.
Contact Material: Copper Alloy
Contact Plating: Gold or Tin over .000050” Ni
(See contact plating options).
Insulation Resistance:
5000 M ohms min.
Dielectric Withstand Voltage: 500 VAC
Current Rating:
1 AMP
Operating Temperature:
-40°C To +105°C
Max Operating Temp:
230°C for 60 seconds
UL File Numbers:
E146967 & E176234
A
B
.050 [1.27]
PCB LAYOUT
B
.030 [.76]
.157 [3.98]
.358 [9.10]
.050 [1.27]
.018 [0.46] SQ.
.197 [5.00]
.100 [2.54]
CONTACT LENGTH
.100 [2.54]
.030 [.76]
A
= .050 x No. of Pos. ±.020
B
= .050 x (No. of Cont./2 -1)
.150 [3.81]
.049 [1.25]
.297 [7.54]
ALL DIMENSIONS ARE IN INCHES & [MM]
SUGGESTED MATING CONNECTORS
PART NUMBERING
96 XX
SERIES CODE
.050 HEADERS
96XXS-A2-XX-XX (PAGE F-16)
96XXS-B2-XX-XX (PAGE F-17)
K1
XX
XX
XX
PACKAGING
TR
= TAPE & REEL PACKAGING
PP
= PICK AND PLACE PAD
BLANK = STANDARD PACKAGING
NO. OF CONTACTS
06 - 98
100 =
01
CONSULT FACTORY FOR
TR
AND
PP
PACKAGING
AVAILABILITY
CONTACT LENGTH
01
= .110 [2.80]
02
= .236 [6.00]
CONSULT FACTORY FOR OTHER CONTACT LENGTH OPTIONS
CONTACT PLATING
.000050” Nickel underplate
CONTACT
TAIL
00
= 100µ”Sn
100µ”Sn
03
= Au Flash
Au Flash
80
= 10µ”Au
10µ”Au
90
= 30µ”Au
30µ”Au
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
