MB53T30-200.000-3.0/0+50 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MB53T30-200.000-3.0/0+50

MB53T30-200.000-3.0/0+50: DescriptionHCMOS Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size172KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

MB53T30-200.000-3.0/0+50 Overview

HCMOS Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

MB53T30-200.000-3.0/0+50 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1004323057
Reach Compliance Code	compliant
YTEOL	2
Other features	SYMMETRY 55/45 ALSO AVAILABLE
Ageing	1 PPM/FIRST YEAR
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	3%
Installation features	SURFACE MOUNT
Number of terminals	4
Nominal operating frequency	200 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	5.0mm x 3.2mm x 2.2mm
longest rise time	10 ns
Maximum supply voltage	3.15 V
Minimum supply voltage	2.85 V
Nominal supply voltage	3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

EURO

QUARTZ

5 x 3.2 x 2.2mm SMD HCMOS

Quick turnaround production

Low Jitter: 70ps peak to peak (typical)

Low phase noise: -114dBc at1kHz offset (133MHz)

Custom frequencies are easily configured

Supply voltages 2.8V, 3.0V or 3.3VDC

TCXO or VCTCXOs CMOS square wave output

MB53T TCXO

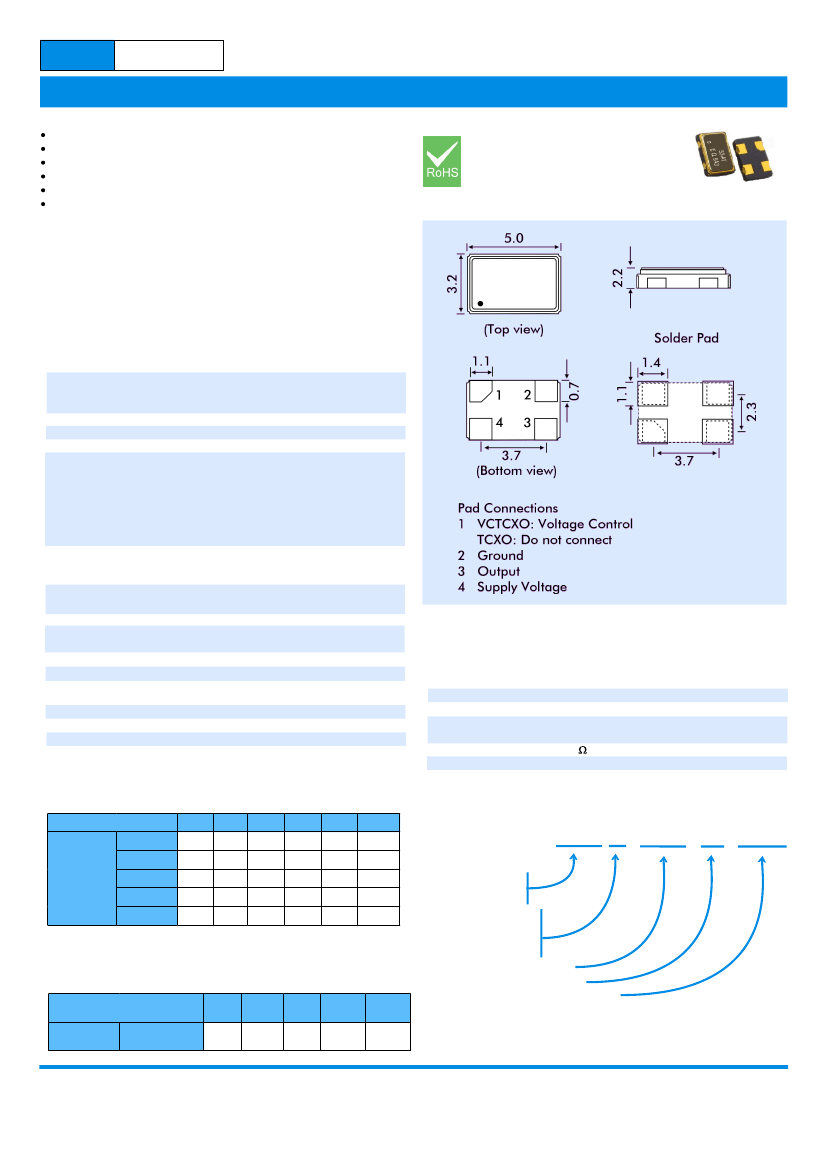

MB53T - OUTLINES AND DIMENSIONS

DESCRIPTION

The MB53T TCXO is packaged in 7 x 5mm, 4 pad ceramic SMD

package. The part has a squarewave (CMOS) output and a stability of

±2.5ppm over the temperature range -30° to +85°C. A 0.01mF

decoupling capacitor is built-in. The part may be specified as a TCXO

or a Voltage-Controlled TCXO (VCTCXO).

SPECIFICATION

Product Series Code

TCXO:

VCTCXO:

Frequency Range:

Output Waveform:

Initial Calibration Tolerance:

Frequency Stability

vs. Temperature Change:

vs. Ageing:

vs. Voltage Change:

vs. Load Change:

vs. Reflow (SMD type):

Supply Voltage:

MB53T

VMB53T

1.0MHz to 200.0MHz

Squarewave, HCMOS

<±2.0ppm at +25°±2°C

See table

±1.0 ppm max. first year

±0.3 ppm max. ±5% change

±0.3 ppm max. ±10% change

±1.0ppm max. for one reflow

(Measured

after 24 hours)

+2.8VDC ±5%

+3.0VDC ±5%

+3.3VDC ±5%

Logic High: 90% Vdd min.

Logic Low: 10% Vdd max.

10ns max.

50±10% standard,

50±5% option

5ms typical, 10ms max.

8mA max.

20mA max.

15pF

-55~+125°C

RoHS Compliant and pB free

VMB53T VOLTAGE CONTROL SPECIFICATION

Control Voltage Centre: Standard = +1.5±1.0Volts (for all voltages)

Frequency Deviation: ±5.0ppm min. (Vcon = +1.5V±1.0V)

Slope Polarity:

Positive

(increase of control voltage increases

output frequency.)

Input Impedance:

50k minimum

Modulation Bandwidth: 20kHz minimum

Linearity:

±10% maximum

PART NUMBER FORMAT

Frequency Stability (ppm)

0 ~ +50

-10 ~ +60

Temperature

Range (°C)

-20 ~ +70

-30 ~ +75

-40 ~ +85

±0.5

ASK

±1.0

±1.5

±2.0

±2.5

±3.0

Output Logic Levels:

Rise and Fall Times:

Duty Cycle:

Start-up Time:

Current Consumption

at 25.0MHz:

at 200.0MHz:

Output Load:

Storage Temperature:

RoHS Status:

FREQUENCY STABILITY OVER TEMPERATURE

Example:

MB53T 28 - 38.880 - 2.5 / -30+85

= available, x = not available, ASK = Please contact us

SSB PHASE NOISE at 25°C

Offset

MB53T at

133.333MHz

(dBc/Hz)

10Hz

-76

100Hz

-102

1kHz

-114

10kHz

-110

100k

-100

Series Description

TCXO: MB53T

VCTCXO: VMB53T

Supply Voltage

28: 2.8VDC

30: 3.0VDC

33: 3.3VDC

Frequency MHz

Stability ±ppm

Operating Temperature Range

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
