5-1437664-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-1437664-3

5-1437664-3: Descriptionconn barrier block 18circ 9.53mm; CategoryThe connector; File Size162KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5-1437664-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1437664-3	-	-	View	Buy Now

5-1437664-3 Overview

conn barrier block 18circ 9.53mm

5-1437664-3 Parametric

Parameter Name	Attribute value
Datasheets

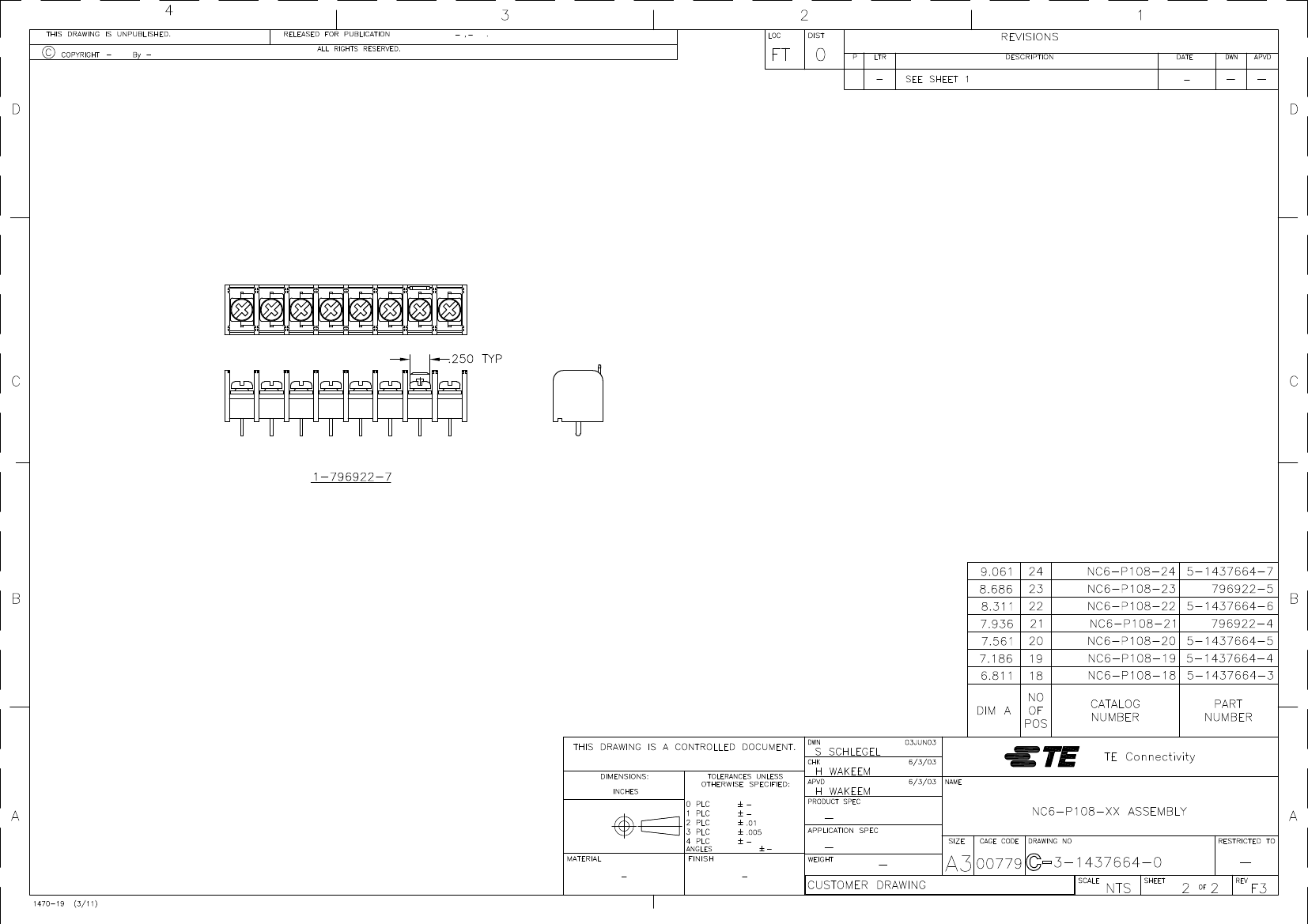

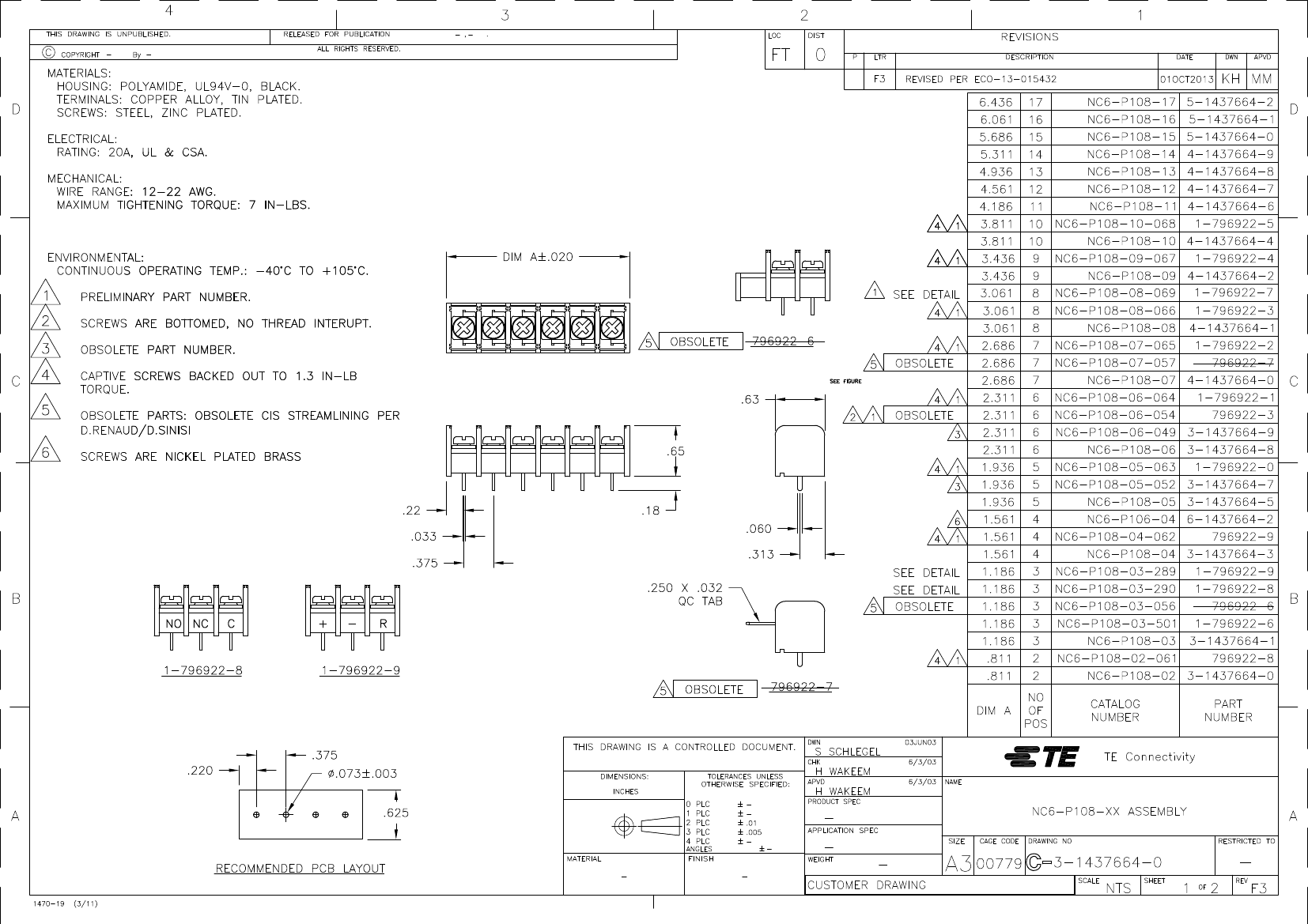

NC6-P108-xx Assembly
RoHS Informati
5-1437664-3 Statement of Compliance
RoHS 2 Stateme
3D Model
5-1437664-3.pdf
Standard Package	160
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Barrier Block
Number of Circuits	18
Number of Wire Entries	18
Pitch	0.375" (9.53mm)
Number of Rows	1
Current Rating	20A
Voltage Rating	300V
Wire Gauge	12-22 AWG
Top Terminati	Screws with Captive Plate
Bottom Terminati	PC Pi
Barrier Type	2 Wall (Dual)
Features	-
Col	Black
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc
Mounting Type	Through Hole
Operating Temperature	-40°C ~ 105°C
Material - Insulati	Polyamide (PA), Nyl
Material Flammability Rating	UL94 V-0
Other Names	NC6-P108-18

Preview

Download Datasheet

View All

5-1437664-3 Related Products

	5-1437664-3	3-1437664-0	3-1437664-1	4-1437664-7	4-1437664-1	4-1437664-4	5-1437664-6	4-1437664-6	5-1437664-4	4-1437664-8
Description	conn barrier block 18circ 9.53mm	conn barrier strip 2circ .375	conn barrier strip 3circ .375	conn barrier strip 12circ .375	conn barrier strip 8circ .375	conn barrier strip 10circ .375	barrier blk 22circ single .375"	barrier blk 11circ single .375"	barrier strip 19circ vert .375	conn barrier block 13circ 9.53mm
Standard Package	160	300	300	100	150	100	3,000	400	210	300
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Terminal Block Type	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block
Number of Circuits	18	2	3	12	8	10	22	11	19	13
Number of Wire Entries	18	2	3	12	8	10	22	11	19	13
Pitch	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)	0.375" (9.53mm)
Number of Rows	1	1	1	1	1	1	1	1	1	1
Current Rating	20A	20A	20A	20A	20A	20A	20A	20A	20A	20A
Voltage Rating	300V	300V	300V	300V	300V	300V	300V	300V	300V	300V
Wire Gauge	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG
Top Terminati	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate	Screws with Captive Plate
Bottom Terminati	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi
Barrier Type	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)
Col	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Terminal Screw Material	Steel	Steel	Steel	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Terminal Screw Finish	Zinc	Zinc	Zinc	Zinc	Zinc	Zinc	Zinc	Zinc	Zinc	Zinc
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Operating Temperature	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C	-40°C ~ 105°C
Material - Insulati	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Other Names	NC6-P108-18	3-1437664-0-ND314376640A98495NC6-P108-02	3-1437664-1-ND314376641A98496NC6-P108-03	4-1437664-7-ND414376647A98502NC6-P108-12	4-1437664-1-ND414376641A98500NC6-P108-08	4-1437664-4-ND414376644A98501NC6-P108-10	-	-	-	NC6-P108-13
