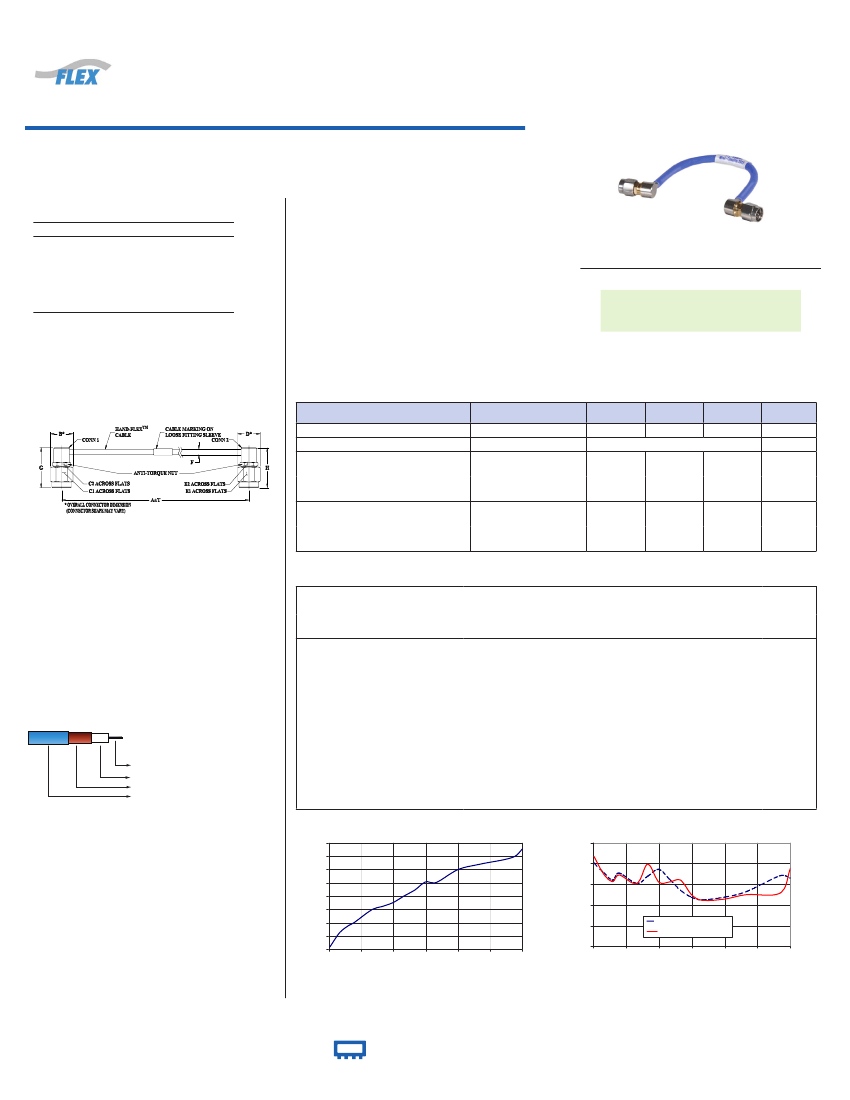

HAND
Coaxial Cable
50Ω
DC to 18 GHz
The Big Deal
• Hand Formable
• Tight Bend Radius
• Right Angle SMA Connectors
• Ideal for interconnect of assembled systems
TM
141SMR Model Series
CASE STYLE: KQ1632-XX
XX= cable length in inches
Product Overview
The 141 Series Hand-Flex Coaxial Cables are ideal for interconnection of coaxial components or sub-systems. The
construction includes a silver-plated copper-clad steel center conductor which maintains the shape after bending.
The outer shield is copper braid, tin soaked, which minimizes signal leakage and at the same time flexible for easy
bend. Dielectric is low loss PTFE. Connectors have passivated stainless-steel coupling nut over a gold plated
connector body and gold plated, brass center conductor.
Key Features
Feature
Hand-Formable RF Cables
Advantages
The 141 Series Hand-Flex cables are hand formable making them ideal for use integrating
coaxial components and sub-assemblies without the need for special cable-bending tools and
alleviating the risk of damage during the bending process typical of semi-rigid coaxial cable
assemblies.
Capable of only 6mm bend radius, the 086 Hand Flex series is able to make connections in tight
spaces making these cables ideal for dense system integration
Supporting typical return loss of 33 dB to 6 GHz and 21 dB to 18 GHz, the 141 Series Hand-Flex
Cables are ideally suited for interconnecting a wide variety of RF components while minimizing
VSWR ripple contribution due to mating cables & connectors.
Mini-Circuits 141 Series can support medium to high RF power levels enabling these cables to
be used in the transmit path. NOTE: power rating is at sea-level altitudes.
Mini-Circuits' 141 Series Hand Flex cables include an anti-torque feature to support the connector
body during installation alleviating risk of stress to the connector/cable interface.
Standard 141 Series cables include a blue FEP insulator jacket reducing the risk of accidental
shorting of DC power lines or active pins during installation and operation.
Avoids multiple right angle bends and improves reliability.
Tight Bend Radius
Excellent Return loss
Good Power Handling Capability:
• 546W at 0.5 GHz
• 90W at 18 GHz
Built in Anti-torque nut
Jacketed
Right angle SMA connectors
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
HAND
Coaxial Cable
50Ω
5 inch
DC to 18 GHz
Features
•
•
•
•
•
•
•
•
Wideband frequency coverage, DC to 18 GHz
Low Loss, 0.38 dB at 18 GHz
Excellent Return Loss, 22 dB at 18 GHz
Hand formable to almost any custom shape without
special bending tools
8mm bend radius for tight installations
Anti-torque nut prevents cable stress during installation
Insulated outer jacket standard\
Ideal for interconnect of assembled systems
TM
141-5SMR+
Maximum Ratings
Operating Temperature
Storage Temperature
Power Handling at 25°C,
Sea Level
-55°C to 105°C
-55°C to 105°C
546W at 0.5 GHz
387W at 1 GHz
273W at 2 GHz
156W at 6 GHz
121W at 10 GHz
90W at 18 GHz
CASE STYLE: KQ1632-5
Connectors
Right Angle SMA-Male
Model
141-5SMR+
Price
$13.04 ea.
Qty.
(1-9)
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Permanent damage may occur if any of these limits are exceeded.
Applications
•
•
•
•
Replacement for custom bent 0.141" semi-rigid cables
Communication receivers and transmitters
Military and aerospace system
Environmental and test chambers
Outline Drawing
Length
1
Electrical Specifications at 25°C
Condition (GHz)
Min.
DC
5
DC - 2
2-6
6 - 10
10 - 18
DC - 2
2-6
6 - 10
10 - 18
—
—
—
—
20
20
16
16
0.11
0.19
0.30
0.53
28
28
20
18
0.32
0.56
0.74
1.01
—
—
—
—
Parameter
Frequency Range
Typ.
Max.
18
Unit
GHz
inches
Insertion Loss
dB
Return Loss
1. Custom sizes available, consult factory.
dB
Outline Dimensions (
inch
)
mm
A
5.0
127.00
E2
.250
6.35
B
.36
9.14
F
.163
4.14
C1
.313
7.95
G,H
.728±.02
18.5±0.5
C2
.250
6.35
T
.05
1.27
D
.36
9.14
E1
.313
7.95
wt
grams
11.52
Typical Performance Data
Frequency
(MHz)
Insertion Loss
(dB)
Return Loss
(dB)
Right Angle
SMA-Male
100
1000
1800
2404
4001
5000
6000
7001
8001
9000
10000
12001
14001
17069
18000
141-5SMR+
INSERTION LOSS
0.40
INSERTION LOSS (dB)
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
0
3000
6000
9000
12000
15000
18000
FREQUENCY (MHz)
0
0
3000
6000
9000
12000
15000
18000
FREQUENCY (MHz)
RETURN LOSS (dB)
50
40
30
20
10
RIGHT ANGLE SMA-MALE
RIGHT ANGLE SMA-MALE
Right Angle
SMA-Male
43.4
34.7
31.2
34.4
30.3
39.7
31.0
31.1
31.9
24.9
22.2
22.8
24.9
25.7
37.7
141-5SMR+
RETURN LOSS
Cable Construction
Center Conductor: Silver Plated Copper Clad Steel
Dialectric: Solid PTFE
Outer Shield: Copper braid, tin soaked
Jacket: FEP, Blue (Unjacketed cable also available
upon request)
Connectors: Coupling Nut: Stainless Steel Passivated
Body: Stainless Steel Gold Plated
Center Pin: Silver Plated Copper Clad Steel
0.01
0.06
0.09
0.10
0.15
0.16
0.18
0.20
0.22
0.25
0.25
0.30
0.32
0.34
0.38
40.2
35.5
31.9
35.3
30.3
33.9
37.1
32.3
27.0
23.7
22.4
23.8
26.4
34.1
32.9
Notes
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
www.minicircuits.com
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 sales@minicircuits.com
Mini-Circuits
®
Rev. OR
M141707
141-5SMR+
RS/CP/AM
140903
