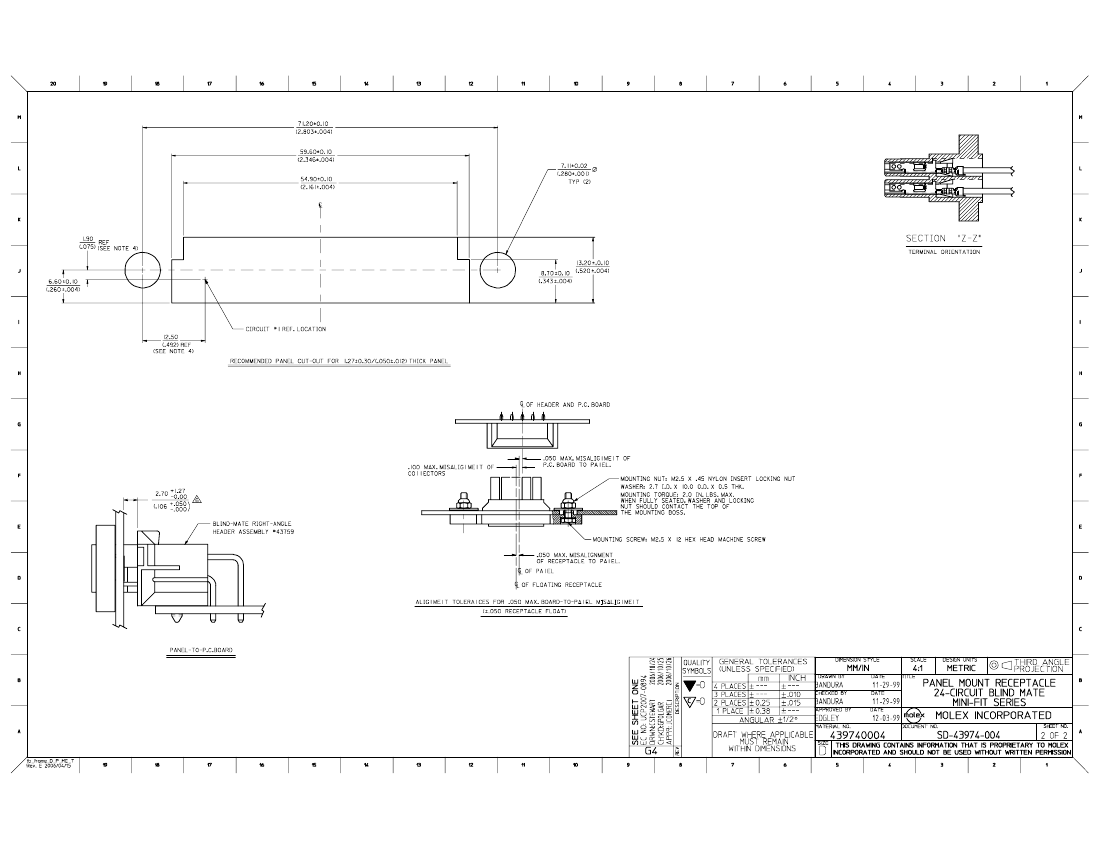

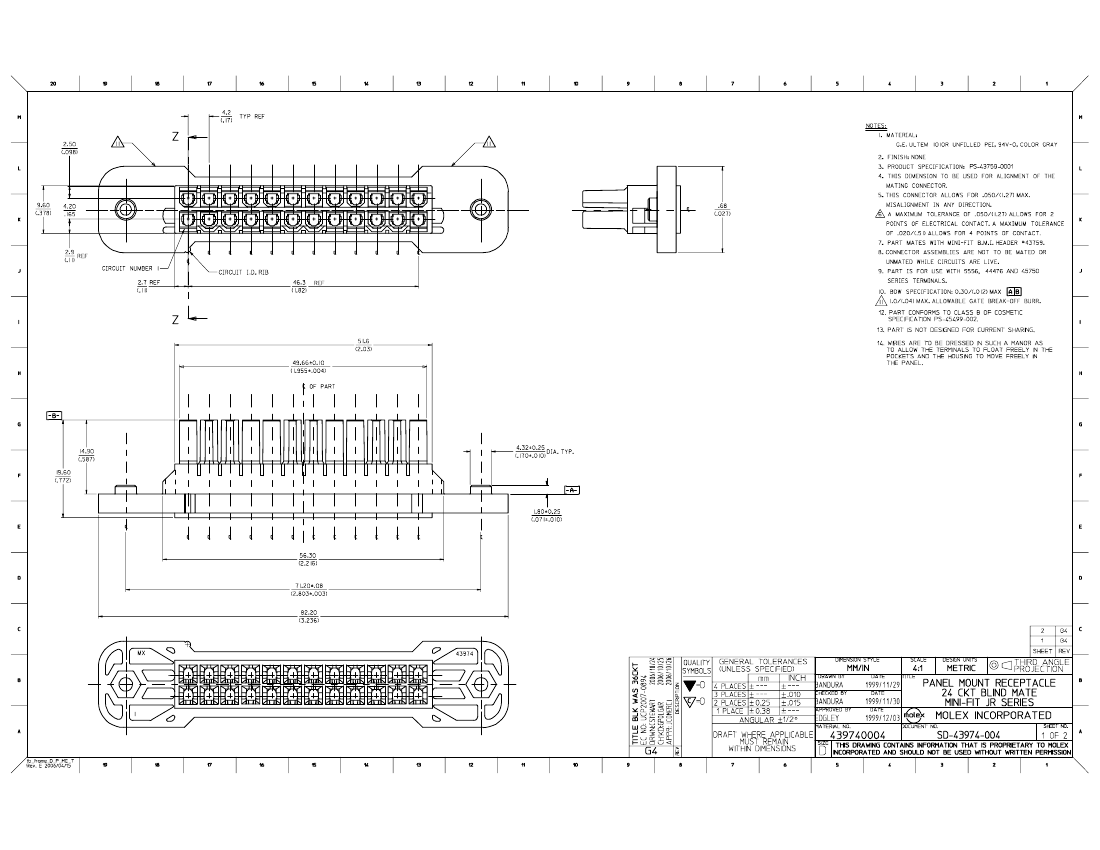

Rectangular Power Connector, 24 Contact(s), Female, Solder Terminal, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | ROHS COMPLIANT |
| body width | 0.681 inch |
| subject depth | 0.772 inch |
| body length | 3.236 inch |
| Body/casing type | RECEPTACLE |
| Connector type | RECTANGULAR POWER CONNECTOR |
| Contact to complete cooperation | SN ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | FEMALE |
| contact mode | RECTANGULAR |
| Contact resistance | 10 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Dielectric withstand voltage | 1500VAC V |
| Durability | 30 Cycles |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 7.1168 N |
| Minimum insulation diameter | 0.051 inch |
| Insulation resistance | 1000000000 Ω |
| Insulator color | GRAY |
| insulator material | POLYETHYLENE TEREPHTHALATE |
| MIL compliance | NO |
| Plug contact pitch | 0.165 inch |
| Match contact row spacing | 0.165 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation option 2 | MOUNTING FLANGE |
| Installation type | BOARD AND PANEL |
| Number of rows loaded | 2 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | -40 °C |
| Options | GENERAL PURPOSE |
| Plating thickness | 100u inch |
| polarization key | POLARIZED HOUSING |
| Rated current (signal) | 9 A |
| Guideline | CSA, UL |
| reliability | COMMERCIAL |
| Termination type | SOLDER |
| Total number of contacts | 24 |
| UL Flammability Code | 94V-0 |
| Maximum wire diameter | 18 AWG |
| Minimum wire diameter | 20 AWG |
| Evacuation force-minimum value | 3.0024 N |
| Base Number Matches | 1 |
