Vishay ESTA
Medium Frequency Capacitors, Water Cooled
ESTAfilm
®
, SINGLE OUTPUTS NOT SUBDIVIDED, 150 - 5000Hz

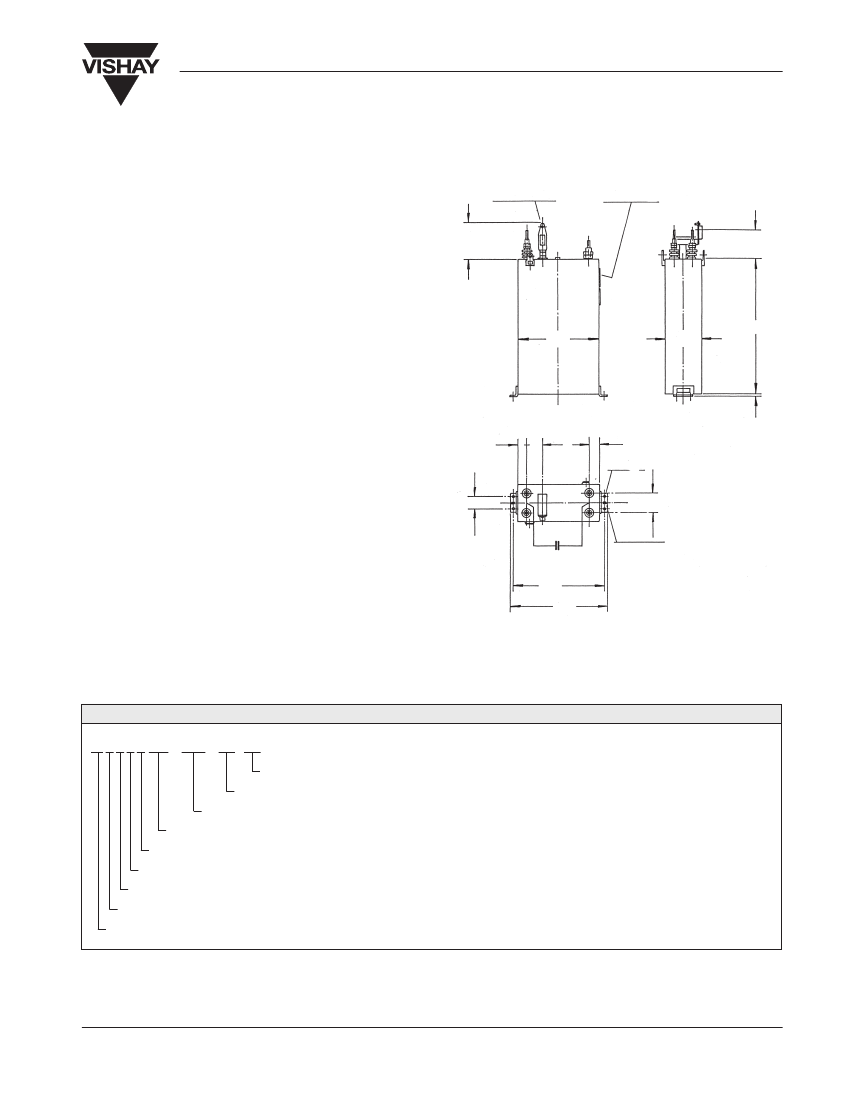

DESIGN
x) thermostat
rating plate
• All-film winding in brass sheet welded casing;
158
• Casing conductive, or grounded;
• Casing varnish RAL 7033;
• IP00, indoor;
• Ambient temperature 1°C .... 50°C;
• 2 water-cooled current connections M20;
• Water tubing conductive;
• Mounting in the upright or horizontal position;
• Upon request, temperature or pressure monitoring;
α)
water connection
44
369
165
70
44
2 x ø 9.8
50
11 x 15
407
429
x) upon request
TYPE DESIGNATION
Ph a w o s 750 / 1875 / 1k - . . .
monitoring device *)
frequency (kHz)
total output (kVAr)
voltage (V or kV)
live casing (grounded casing: no entry Phawo 750/...
NON-PCB
water-cooled
all film dielectric
power capacitor
*) – ST = thermostat
– DR = pressure switch
}
Not all types available.
Document Number: 13056
Revision 28-Mar-02
82.5
www.vishay.com
13
5
H
• Outflowing water temperature 40° C maximum;
H1
α)
α)
Phawo...k..
Medium Frequency Capacitors, Water Cooled
150 - 5000Hz
(not subdivided)
F
N
(Hz)
1000
U
N
(V)
250
600
750
1000
1500
2000
2500
2000
250
600
750
1000
1500
2000
2400
3000
250
600
750
1000
1500
2000
4000
250
600
750
1000
1500
2000
5000
250
600
750
1000
1500
2000
Q
N
(kVAr)
625
1500
1875
2500
3750
5000
6250
625
1500
1875
2500
3750
5000
6000
625
1500
1875
2500
3750
5000
625
1500
1875
2500
3750
5000
600
1440
1800
2400
3600
4800
C
N
(µF)
1592
663
531
398
265
199
159
796
332
265
199
133
99
83
531
221
177
133
88
66
398
166
133
99
66
50
306
127
102
76
51
38
I
N
(A)
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2500
2400
2400
2400
2400
2400
2400
CASING
CONDUCTIVE
GROUNDED
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
H
(mm)
700
500
450
450
600
750
950
500
500
500
450
450
500
600
500
500
500
500
550
500
550
550
500
500
550
600
550
550
500
550
500
550
Vishay ESTA
Shown are the maximum power ratings, other power ratings, voltages, and frequencies on request.
