ZZY-RC-12D28-42S06D datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> ZZY-RC-12D28-42S06D

Preview

ZZY-RC-12D28-42S06D: DescriptionMIL Series Connector,; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

ZZY-RC-12D28-42S06D Overview

MIL Series Connector,

ZZY-RC-12D28-42S06D Parametric

Parameter Name	Attribute value
Objectid	8299471173
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	MIL SERIES CONNECTOR

Preview

Download Datasheet

View All

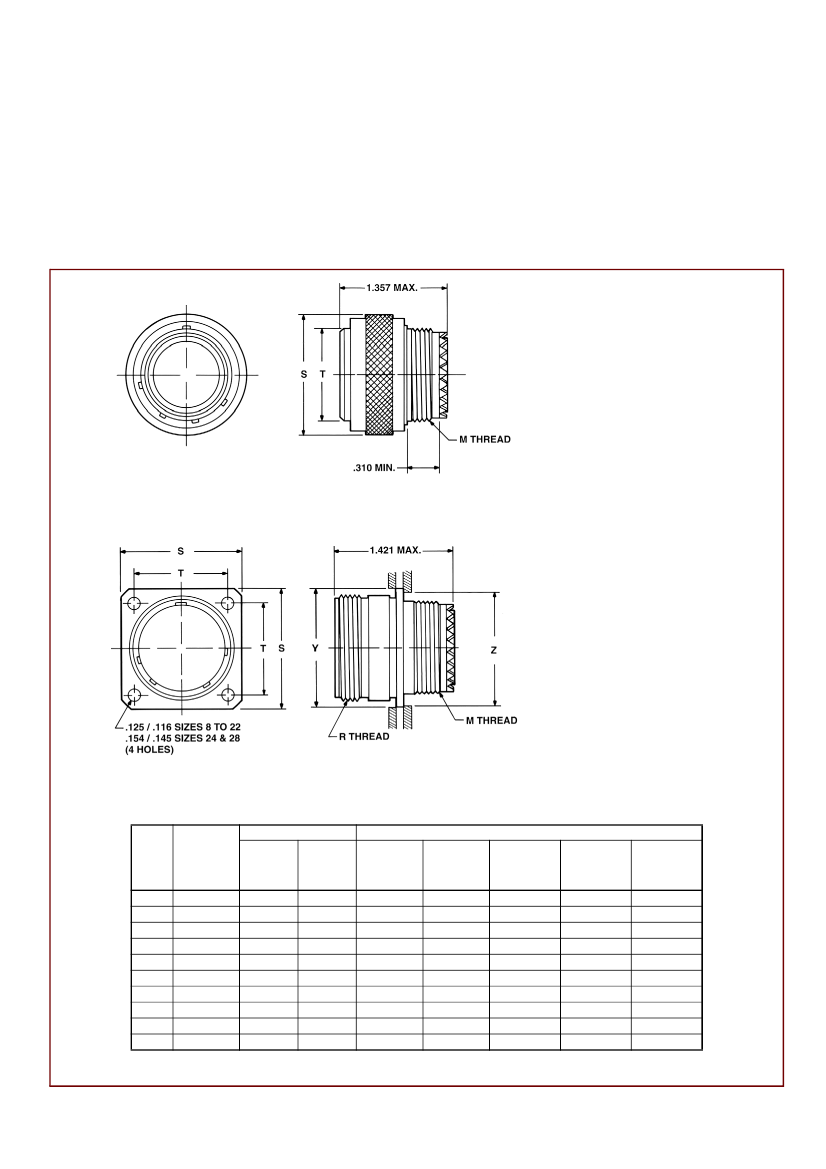

Ratchet Lock Plug and Mating Flange

Receptacle

aluminum/stainless steel

ratchet lock coupling

RATCHET LOCK PLUG

Stainless Steel/Aluminum

Pyle ZZY-RC/AC-12XX* Series

MATING FLANGE MOUNTED,

THREADED RECEPTACLE

Stainless Steel/Aluminum

Pyle ZZY-RC/AC-17XX* Series

* To complete order number,

see how to order, page 8.

Plug

Cable

Support

Thread M

Coupling

Nut

Dia.

S Max.

Shell Dia.

T

+.000

–.005

Flange

Width

S ±.005

Receptacle

Mounting

Hole Centers

T ±.005

Back Mount

Hole (min.)

Y

Front Mount

Hole (min.)

Z

Shell

Size

Coupling

Thread R

08

10

12

14

16

18

20

22

24

28

NA

.6250-24

.7500-20

.8750-20

1.0000-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

1.7500-18

NA

.945

1.165

1.230

1.353

1.468

1.607

1.733

1.858

2.113

NA

.526

.696

.765

.892

.998

1.123

1.248

1.373

1.623

NA

.6875-24

.8750-20

.9375-20

1.0625-18

1.1875-18

1.3125-18

1.4375-18

1.5625-18

1.8120-16

NA

.937

1.031

1.125

1.250

1.343

1.437

1.562

1.703

2.000

NA

.719

.812

.906

.969

1.062

1.156

1.250

1.375

1.562

NA

.706

.885

.947

1.072

1.197

1.322

1.447

1.572

1.822

NA

.635

.760

.885

1.010

1.072

1.197

1.322

1.448

1.760

NA designates not available.

All dimensions for reference only.
