801-93-036-10-012 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 801-93-036-10-012

801-93-036-10-012: DescriptionBoard Connector, 36 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,; CategoryThe connector The connector; File Size803KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

801-93-036-10-012 Overview

Board Connector, 36 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket,

801-93-036-10-012 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Objectid	1665410555
Reach Compliance Code	unknown
Country Of Origin	USA
ECCN code	EAR99
Samacsys Manufacturer	Mill-Max
Samacsys Modified On	2022-10-24 11:55:51
YTEOL	6.83
Other features	LOW PROFILE
body width	0.1 inch
subject depth	0.165 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
UL Flammability Code	94V-0

801-93-036-10-012 Preview

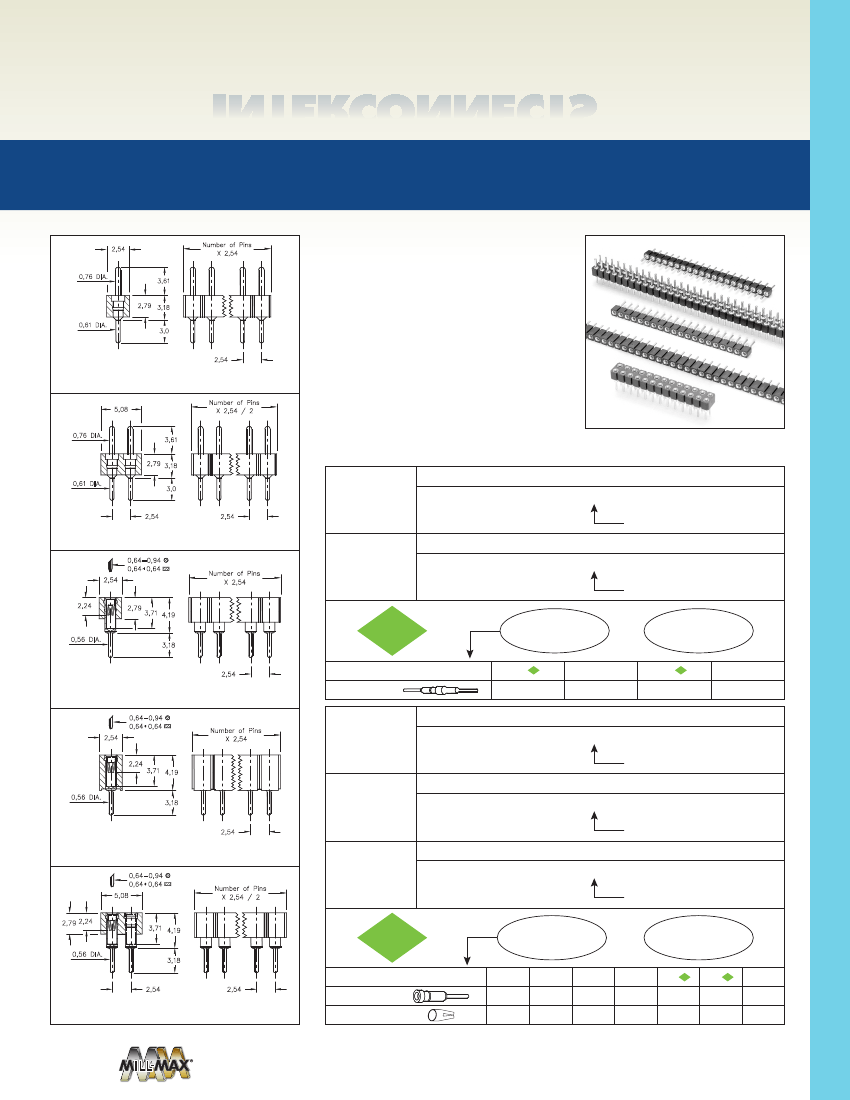

INTERCONNECTS

SERIES 800, 801, 802, 803 • 2,54 GRID (0,76 DIA. PINS),

LOW PROFILE HEADERS & VERSATILE SOCKETS • SINGLE & DOUBLE ROW STRIPS

Number of Pins

X 2,54

2,54

•

Series 800 and 802 single and double row pin

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

0,76 DIA.

3,61

headers use MM #5016 pins. See page 215 for

details

sockets use MM #1303 receptacles. See page

180 for details

6-finger BeCu #47 contact rated at 4.5 amps.

Receptacles accept 0,76 diameter and 0,64

square pins. See page 256 for details

suitable for all soldering operations

2,79

0,61 DIA.

3,18

3,0

2,54

FIG. 1

5,08

Number of Pins

X 2,54 / 2

0,76 DIA.

•

Insulators are high temperature thermoplastic,

3,61

2,79 3,18

0,61 DIA.

ORDERING INFORMATION

Series 800...002

3,0

FIG. 1

2,54

Single Row Low Profile Pin Header

800-XX-0_ _-10-002000

01-64

2,54

FIG. 2

0,64-0,94

0,64 0,64

2,54

Number of Pins

X 2,54

Specify number of pins

Series 802...002

FIG. 2

RoHS - 2

Double Row Low Profile Pin Header

802-XX-0_ _-10-002000

04-64

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Specify number of pins

XX=Plating Code

See Below

0,25μm Au

2,24

2,79

3,71 4,19

0,56 DIA.

2011/65/EU

3,18

2,54

SPECIFY PLATING CODE XX=

Pin Plating

5,08μm Sn/Pb

5,08μm Sn

FIG. 3

0,64-0,94

0,64 0,64

2,54

Number of Pins

X 2,54

Series 801...002

FIG. 3

Series 801...012

Low Profile Socket

(short insulator)

801-XX-0_ _-10-002000

01-64

2,24

3,71 4,19

Specify number of pins

0,56 DIA.

3,18

FIG. 4

2,54

Low Profile Socket

(long insulator)

801-XX-0_ _-10-012000

01-36

Specify number of pins

0,64-0,94

0,64 0,64

5,08

Number of Pins

X 2,54 / 2

FIG. 5

RoHS - 2

Specify number of pins

XX=Plating Code

See Below

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

2,79 2,24

3,71 4,19

2011/65/EU

0,56 DIA.

3,18

2,54

FIG. 5

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

5,08μm Sn/Pb 5,08μm Sn/Pb 5,08μm Sn/Pb

5,08μm Sn 5,08μm Sn

0,25μm Au 0,76μm Au

2,54μm Sn/Pb

0,25μm Au 0,76μm Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 53 | INTERCONNECTS

FIG. 4

Series 803...002

Double Row Low Profile Socket

803-XX-0_ _-10-002000

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
