M2035, M2036 and M2037 Series
SPECIFICATION FOR 5.0 x 7.0 x 1.4 mm, CMOS SMT OSCILLATOR
FEATURES
CMOS Output
±20
ppm Stability Available
RoHS 6/6 Compliant
APPLICATIONS
Low power applications
Broadband Access
Test and Measurement
Ordering Information:
Product Family
(Supply Voltage Option)
Temperature Range
Code
D
6
2
Value
-10 °C to +70 °C
-20 °C to +70 °C
-40 °C to +85 °C
Stability *
Code
3
4
6
8
Value
±100 ppm
±50 ppm
±25 ppm
±20 ppm
Code
Q
T
Enable/Disable
Value
Standby (pad 1)
Enable High (pad 1)
Logic Type
Code
C
G
Value
CMOS
45/55
CMOS
40/60
Package/Lead
Configuration
Code
N
Value
Leadless
Frequency
MHz
XXX.XXXXXX
M2035
(2.85V)
M2036
(3.0V)
M2037
(3.3V)
Example: M203764TCN 100.000000 MHz
M2037
6
4
T
C
Stability includes initial tolerance @ +25°C, deviation over temperature, variations to supply, load, vibration, shock and aging.
N
100.000000
Electrical Specifications:
Parameter
Frequency of Operation
Frequency Stability
Output Type
Output Load
Symmetry (duty cycle)
Rise/Fall Time
1.000 to 50.000 MHz
50.001 to 80.000 MHz
80.001 to 125.000 MHz
Logic Level “1”
Logic Level “0”
Output Current
Start-up Time
Standby Current
Tristate/Standby Function
Output Disable Time
Output Enable Time
V
CC
V
CC
Symbol
F
O
F/F
Min.
1.5
Typ.
Max.
125
Units
MHz
Conditions
Frequency Stability
See ordering information
RF Output
CMOS Compatible
45
T
R
/T
F
V
OH
V
OL
I
OH
I
OL
T
SU
90% Vdd
10% Vdd
-2
+2
50
15
55
6
4
2
pF
%
ns
V
V
mA
mA
ms
uA
CMOS load
Ref. to 50% Vdd
10% Vdd to 90% Vdd
5
10
Pad 1, High or floating: clock signal output
Pad 1, low: output disables to high impedance
150
ns
5
ms
T
ambient
= +25°C
Supply Voltage & Power Consumption
Operating Voltage
Supply Current
1.500 to 20.000 MHz
20.001 to 50.000 MHz
50.001 to 67.000 MHz
67.001 to 125.000 MHz
3.15
2.85
2.70
3.30
3.00
2.85
3.45
3.15
3.00
15
20
30
55
V
V
V
mA
(M2037)
(M2036)
(M2035)
3.3V
Revision 0
04/10/17
I
CC
Page 1 of 5
M2035, M2036 and M2037 Series
SPECIFICATION FOR 5.0 x 7.0 x 1.4 mm, CMOS SMT OSCILLATOR
Environmental & Packaging Requirements:
Storage Temperature
Mechanical Shock
Vibration
Moisture Sensitivity Level
Max. Soldering Conditions
Pad Termination
Package Type
-55°C to 125°C
Per MIL-STD-202, Method 213, Condition C
Per MIL-STD-202, Method 201 & 204
MSL1
See solder profile, Figure 1
Gold, 1 µm maximum thickness
4-pad 5.0 x 7.0 x 1.4 mm leadless ceramic. RoHS compliant.

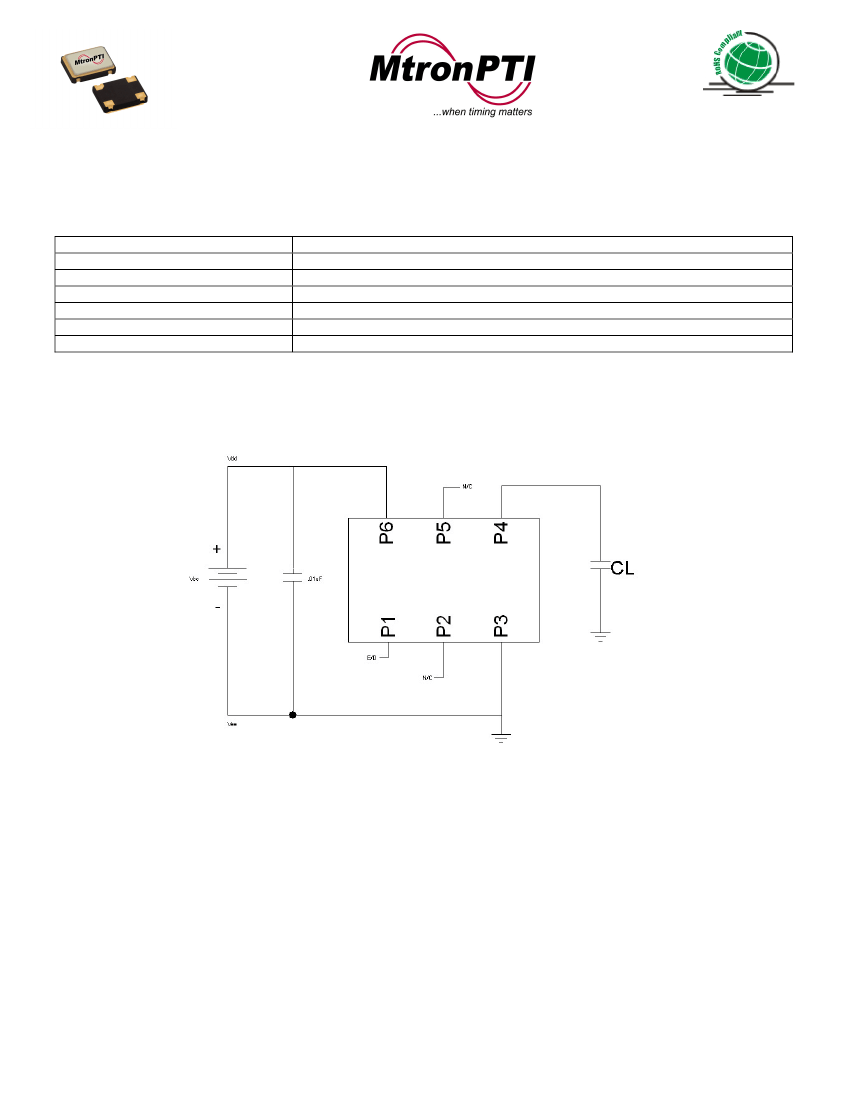

Typical CMOS Test Circuit & Load Circuit Diagrams:
Page 2 of 5
M2035, M2036 and M2037 Series
SPECIFICATION FOR 5.0 x 7.0 x 1.4 mm, CMOS SMT OSCILLATOR
Marking, Pin Out:
Pad
1
2
3
4
Function
Tristate/Standby
Ground
Output
+V
CC
Line 1
Line 2
Line 3
Part Marking
[part designation]
FFFMFFFF
M yy ww vv
M
F
yy
ww
vv
Legend
MtronPTI
Frequency
Year
Work Week
Factory code

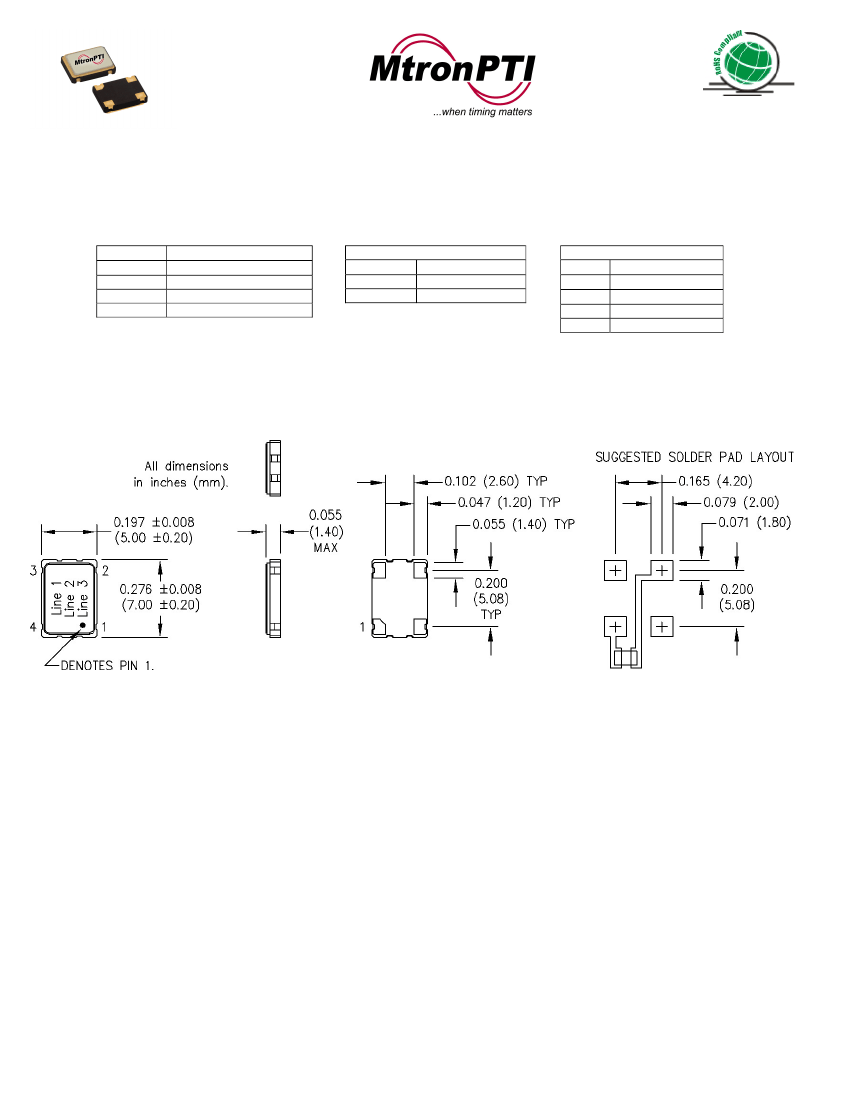

Dimensions:
Page 3 of 5
M2035, M2036 and M2037 Series
SPECIFICATION FOR 5.0 x 7.0 x 1.4 mm, CMOS SMT OSCILLATOR

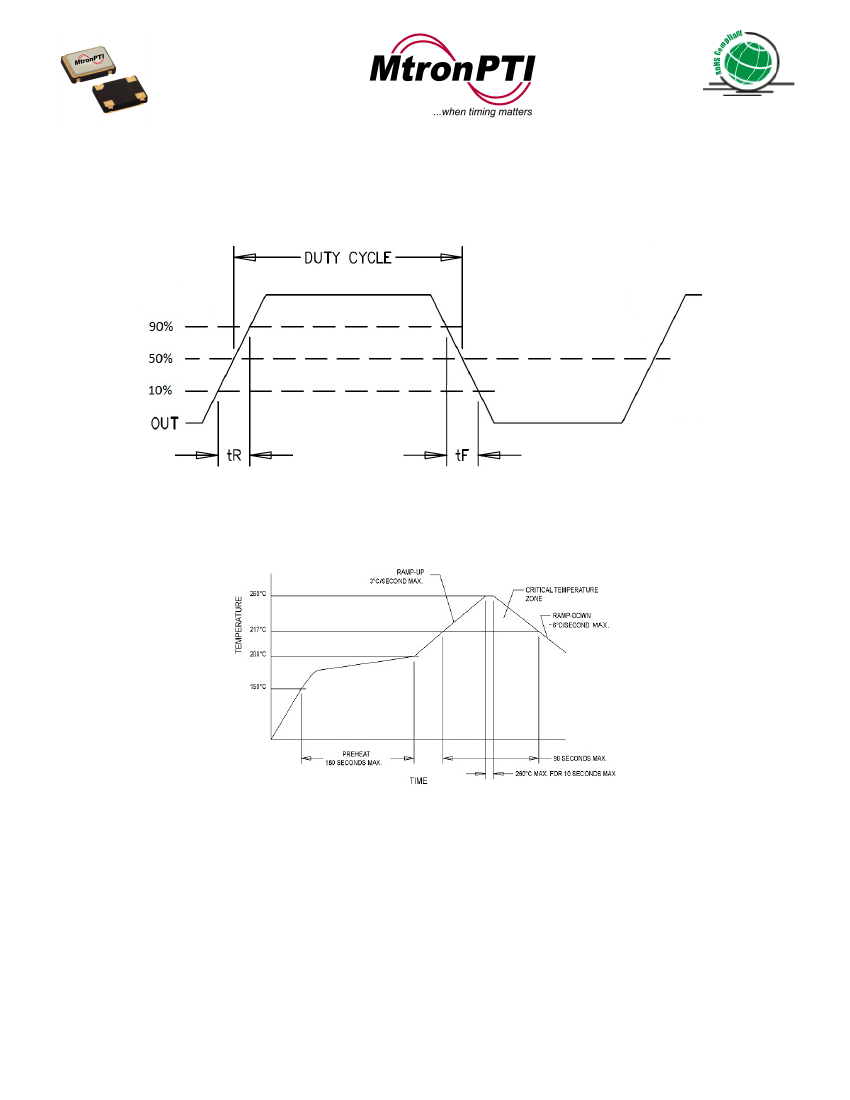

Output Waveform:
Soldering Conditions:
Figure 1
Figure 1
Page 4 of 5
M2035, M2036 and M2037 Series
SPECIFICATION FOR 5.0 x 7.0 x 1.4 mm, CMOS SMT OSCILLATOR

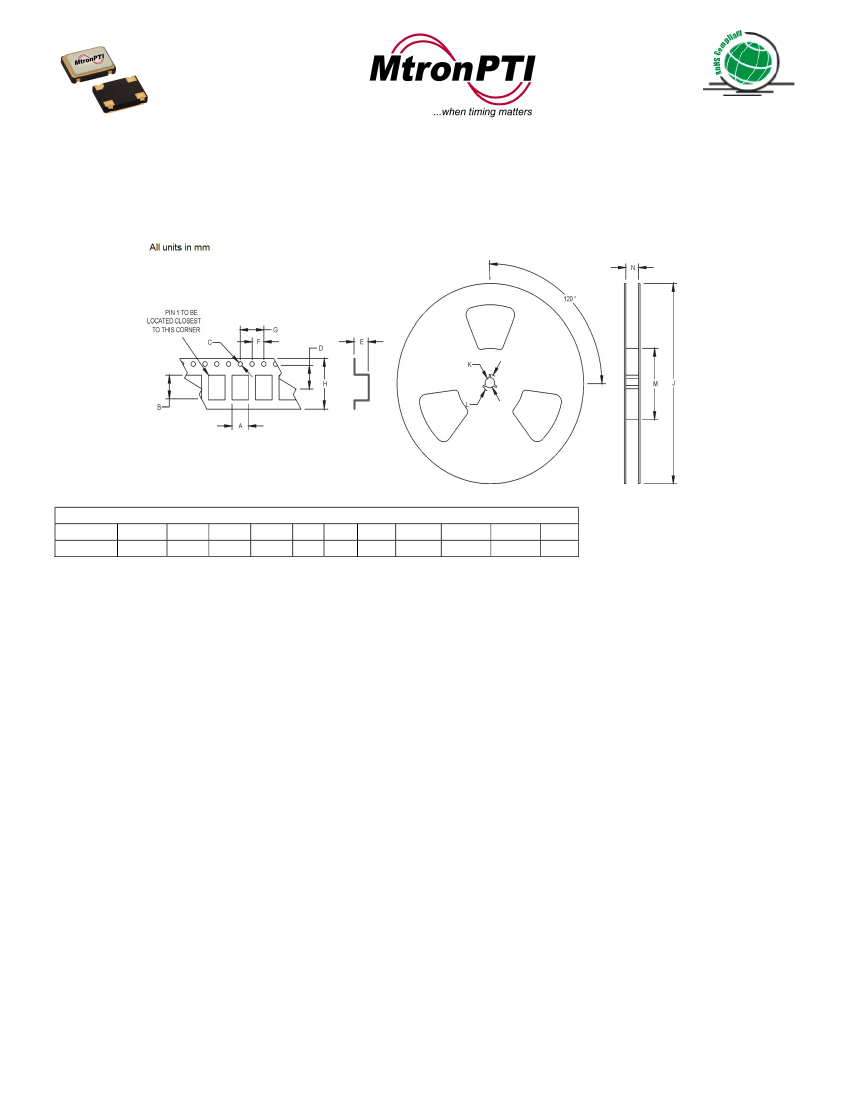

Tape and Reel Specifications:
Tape and Reel Specifications
A
B
C
D
5.52
7.48
1.5
7.5
E
2.15
F
4
G
8
H
16
J
178
K
13
L
21
M
80
MtronPTI reserves the right to make changes to the product(s) and service(s) described herein without notice.
No liability is assumed as a result of their use or application.
Page 5 of 5
