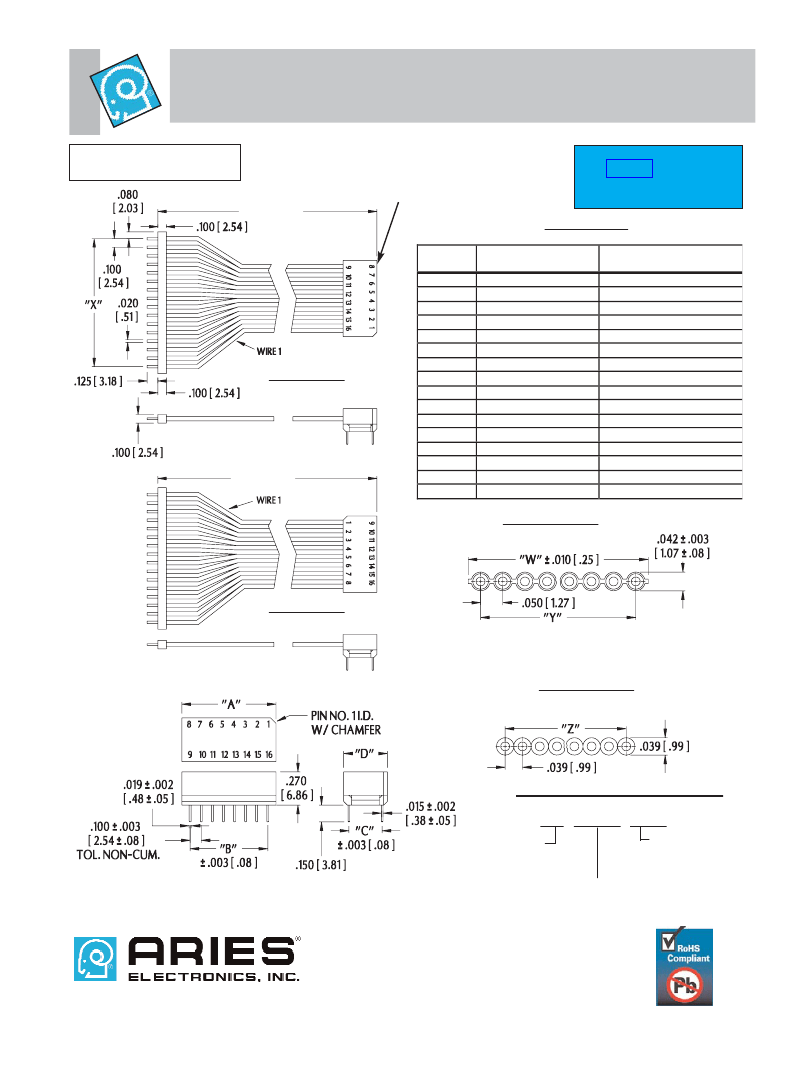

Series 112, 113, & 114
Deci-Center
™
Jumpers (cont.)
All tolerances ± .005 [.13]
unless otherwise specified
“L” ± .125
Note: 10, 12, 18, 20, & 28
conductor jumpers do not
have numbers on covers
See Data Sheet No.
11008 for other
configurations and
additional information.
WIRING LIST
Wire
Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Series 112, 113, 114
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Series 112X, 113X, 114X
Pin Number
1
16
2
15
3
14
4
13
5
12
6
11
7
10
8
9
SERIES 113
“L” ± .125
CABLE DETAIL
(Series 112X, 113X, 114X)
SERIES 114
“W”=NO. OF CONDUCTORS X .050 [1.27]) + .005 [.08]
“Y”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
“Z”=(NO. OF CONDUCTORS - 1) X .039 [.99]
HEADER DETAIL
CABLE DETAIL
(Series 112, 113, 114)
ORDERING INFORMATION
XX-XXXX-XXX
No. of conductors
(see table)
Jumper series:
112, 113, 114
112X, 113X, 114X
(see wiring table)
“A”=(NO. OF CONDUCTORS X .050 [1.27]) + .095 [2.41]
“B”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
“X”=(NO. OF CONDUCTORS - 1) X .100 [2.54]
Cable length in inches:
Ex: 3” = -.003-/ 3.5”= -003.5-
min. length =3” [76.20mm]
11009
REV. E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
