A-CCS84-Z: DescriptionIC socket plcc 84pos tin; CategoryThe connector; File Size315KB，1 Pages; ManufacturerASSMANN WSW components

Download Datasheet Parametric View All

A-CCS84-Z Overview

IC socket plcc 84pos tin

A-CCS84-Z Parametric

Parameter Name	Attribute value
Datasheets
A-CCSxx-x
Product Photos
A-CCS84-Z-(R)
Standard Package	15
Category	Connectors, Interconnects
Family	Sockets for ICs, Transistors
Packaging	Tube
Type	Chip Carrier, PLCC
Number of Positions or Pins (Grid)	84 (4 x 21)
Pitch - Mating	0.050" (1.27mm)
Contact Finish - Mating	Ti
Contact Finish Thickness - Mating	150µin (3.81µm)
Contact Material - Mating	Phosphor Bronze
Mounting Type	Through Hole
Features	Closed Frame
Terminati	Solde
Pitch - Pos	0.050" (1.27mm)
Contact Finish - Pos	Ti
Contact Finish Thickness - Pos	150µin (3.81µm)
Contact Material - Pos	Phosphor Bronze
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-55°C ~ 105°C
Termination Post Length	0.130" (3.30mm)
Material Flammability Rating	UL94 V-0
Current Rating	1A
Contact Resistance	30 mOhm
Other Names	A-CCS-84-Z-TACCS84ZTAE7331

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

A

B

C

D

E

F

Scale

1:1

Drawn

Approved

11.07.11

Name

Chappell

Item No.

G

TOLERANCE

X.X

X.XX

X.XXX

±0.40

±0.25

±0.15

±3°

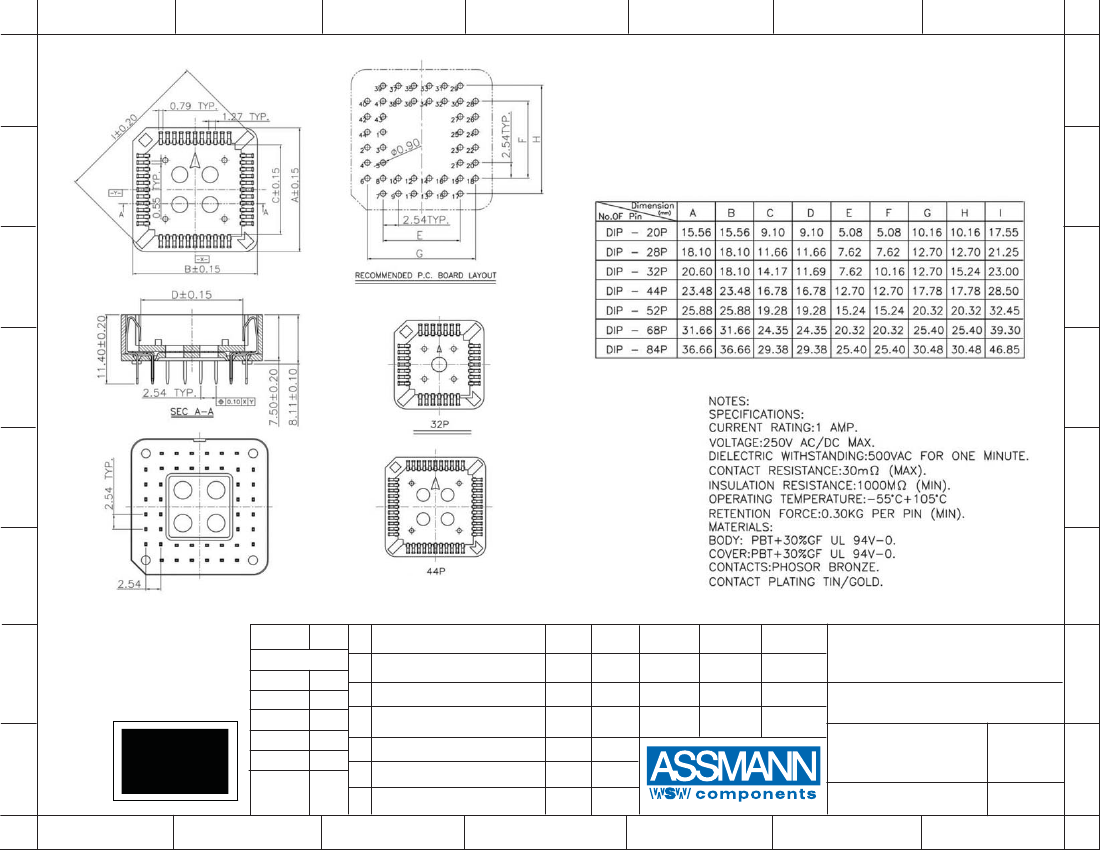

A-CCSxx-Z-R (Tin)

A-CCSxx-G-R (Gold)

Title

G

Chip-Carrier PLCC socket,

2.54MM pitch

H

RoHS

Complaint

1

2

Angle

Drawing No.

rev00

Modification

Date

Name

Replace

Sheet

H

3

4

5

6

7
