691311700103 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 691311700103

Preview

691311700103: Descriptionterm block hdr 3pos vert 5mm; CategoryThe connector; File Size174KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

691311700103 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	691311700103	-	-	View	Buy Now

691311700103 Overview

term block hdr 3pos vert 5mm

691311700103 Parametric

Parameter Name	Attribute value
Datasheets
6913117001xx Drawing
Product Photos
691311700103
Featured Produc
Terminal Blocks WR-TBL
3D Model
6913117001xx.pdf
691311700103.igs
691311700103.s
691311700103.wrl
Standard Package	450
Category	Connectors, Interconnects
Family	Terminal Blocks - Headers, Plugs and Sockets
Packaging	Bulk
Terminal Block Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Positions Per Level	3
Pitch	0.197" (5.00mm)
Number of Levels	1
Header Orientati	Vertical
Plug Wire Entry	-
Terminati	Solde
Wire Gauge	-
Curre	20A
Voltage	300V
Mounting Type	Through Hole
Features	-
Col	Gree
Mating Products	732-2782-ND - TERM BLOCK PLUG 3POS 90DEG 5MM732-2776-ND - TERM BLOCK PLUG 3POS STR 5MM
Associated Produc	732-2848-ND - TERM BLCK CODE KEY 5/5.08/7.62MM
Other Names	732-2788

Preview

Download Datasheet

View All

1

2

3

4

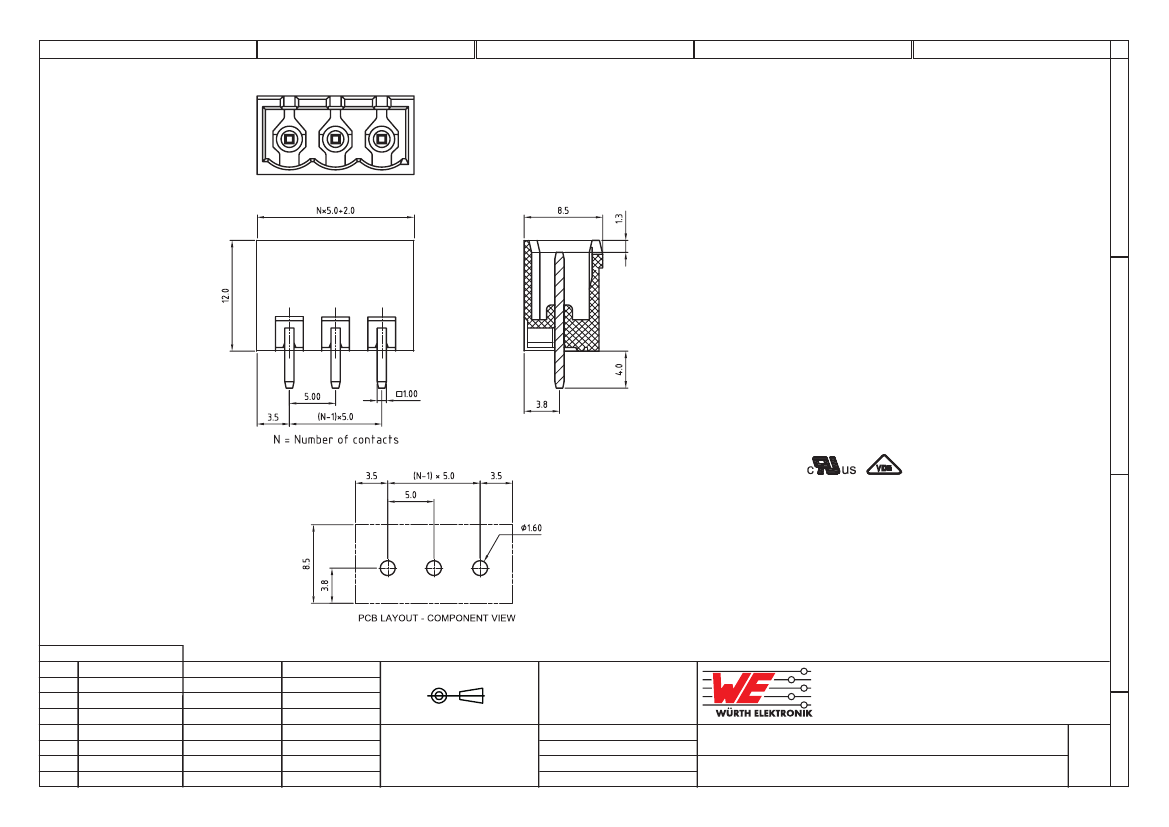

TECHNICAL CHARACTERISTICS

MATERIAL

INSULATOR: PBT

FLAMABILITY RATING: UL94-V0

COLOR: GREEN

CONTACT: BRASS

SOLDER TAIL PLATING: TIN

ENVIRONMENTAL

OPERATING TEMPERATURE: -40 UP TO 105°C

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL

CURRENT RATING:

WORKING VOLTAGE:

WITHSTANDING VOLTAGE:

CONTACT RESISTANCE:

MECHANICAL

PITCH: 5.00MM

SOLDERING: WAVE PROCESS ONLY

PACKAGING: BOX

SERIE 3117

CERTIFICATION

5

A

cULus

VDE

20A

300VAC

1.6KV

2.5KV

20 mOhm max

B

C

RoHS Compliant

G

F

E

D

C

B

A

REV

04-NOV-08

DATE

PDF

FILE

JP

BY

APPROVAL: RJ

SCALE:

SHEET: 1/1

DRAW: MARVIN

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

UNIT: MM

DESCRIPTION: SERIE 3117 - 5.00MM CLOSE VERTICAL PCB HEADER

WR-TBL

WERI PART NO: 691 311 700 1xx

SIZE

A4

D
