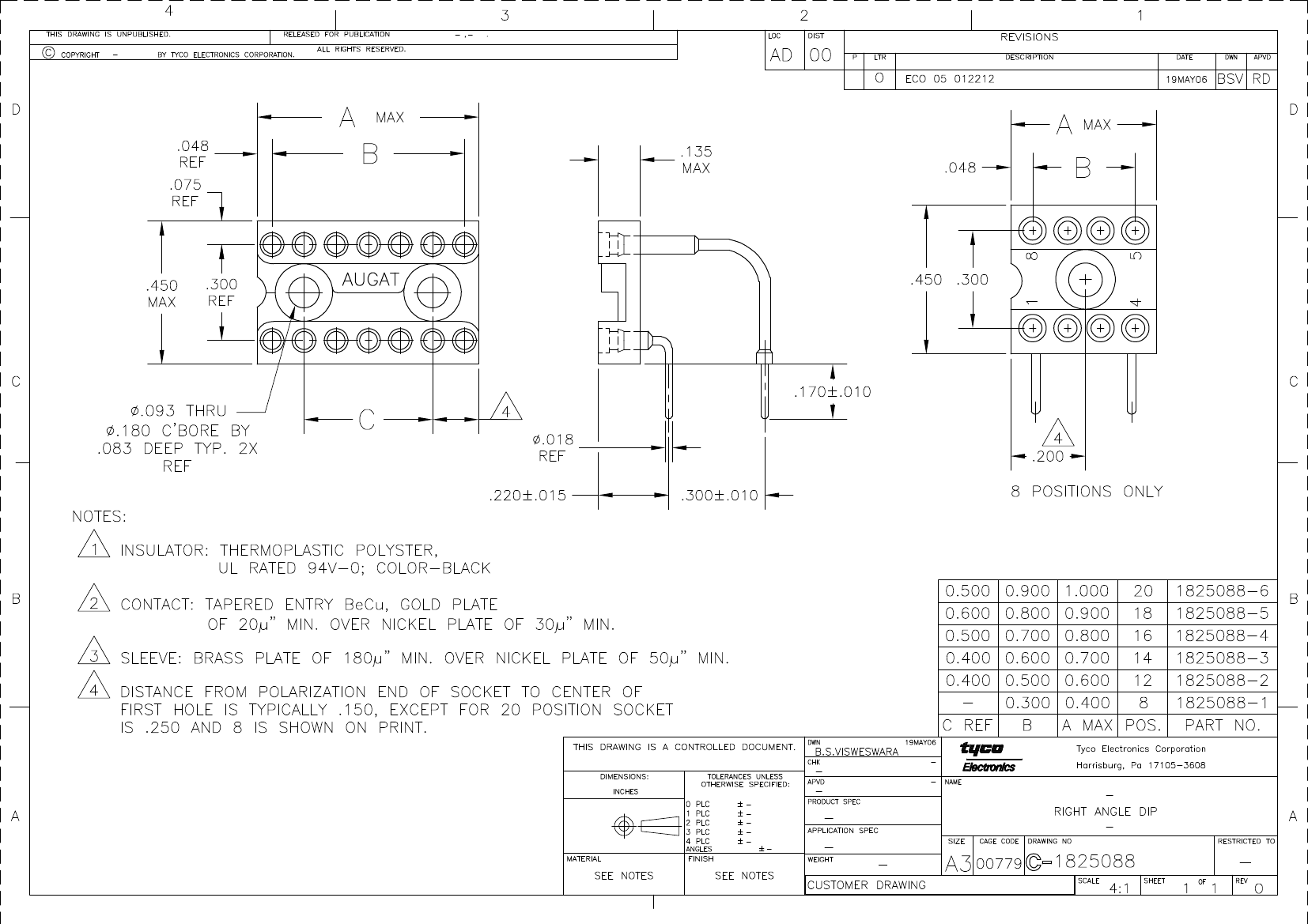

1825088-6 datasheet, PDF - EEWORLD Datasheet

1825088-6: Descriptionconn socket dip 20pos gold R/A; CategoryThe connector; File Size78KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1825088-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1825088-6	-	-	View	Buy Now

conn socket dip 20pos gold R/A

Parameter Name	Attribute value
Datasheets
1825088
RoHS Informati
1825088-6 Statement of Compliance
RoHS 2 Stateme
Standard Package	360
Category	Connectors, Interconnects
Family	Sockets for ICs, Transistors
Packaging	Tube
Type	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	20 (2 x 10)
Pitch - Mating	0.100" (2.54mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20µin (0.51µm)
Contact Material - Mating	Beryllium Coppe
Mounting Type	Through Hole, Right Angle, Horizontal
Features	Closed Frame
Terminati	Solde
Pitch - Pos	0.100" (2.54mm)
Contact Finish - Pos	-
Contact Finish Thickness - Pos	-
Contact Material - Pos	Brass
Housing Material	Thermoplastic
Operating Temperature	-55°C ~ 125°C
Termination Post Length	0.170" (4.32mm)
Material Flammability Rating	UL94 V-0
Current Rating	-
Contact Resistance	10 mOhm
Other Names	520-AG7D-LF

	1825088-6	1825088-3
Description	conn socket dip 20pos gold R/A	conn socket dip 14pos gold R/A
Standard Package	360	2,040
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Sockets for ICs, Transistors	Sockets for ICs, Transistors
Packaging	Tube	Tube
Type	DIP, 0.3" (7.62mm) Row Spacing	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)	20 (2 x 10)	14 (2 x 7)
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	20µin (0.51µm)	20µin (0.51µm)
Contact Material - Mating	Beryllium Coppe	Beryllium Coppe
Mounting Type	Through Hole, Right Angle, Horizontal	Through Hole, Right Angle, Horizontal
Features	Closed Frame	Closed Frame
Terminati	Solde	Solde
Pitch - Pos	0.100" (2.54mm)	0.100" (2.54mm)
Contact Material - Pos	Brass	Brass
Housing Material	Thermoplastic	Thermoplastic
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C
Termination Post Length	0.170" (4.32mm)	0.170" (4.32mm)
Material Flammability Rating	UL94 V-0	UL94 V-0
Contact Resistance	10 mOhm	10 mOhm
Other Names	520-AG7D-LF	514-AG7D-LF
