Datasheet> All Categories > The connector> 1776295-9

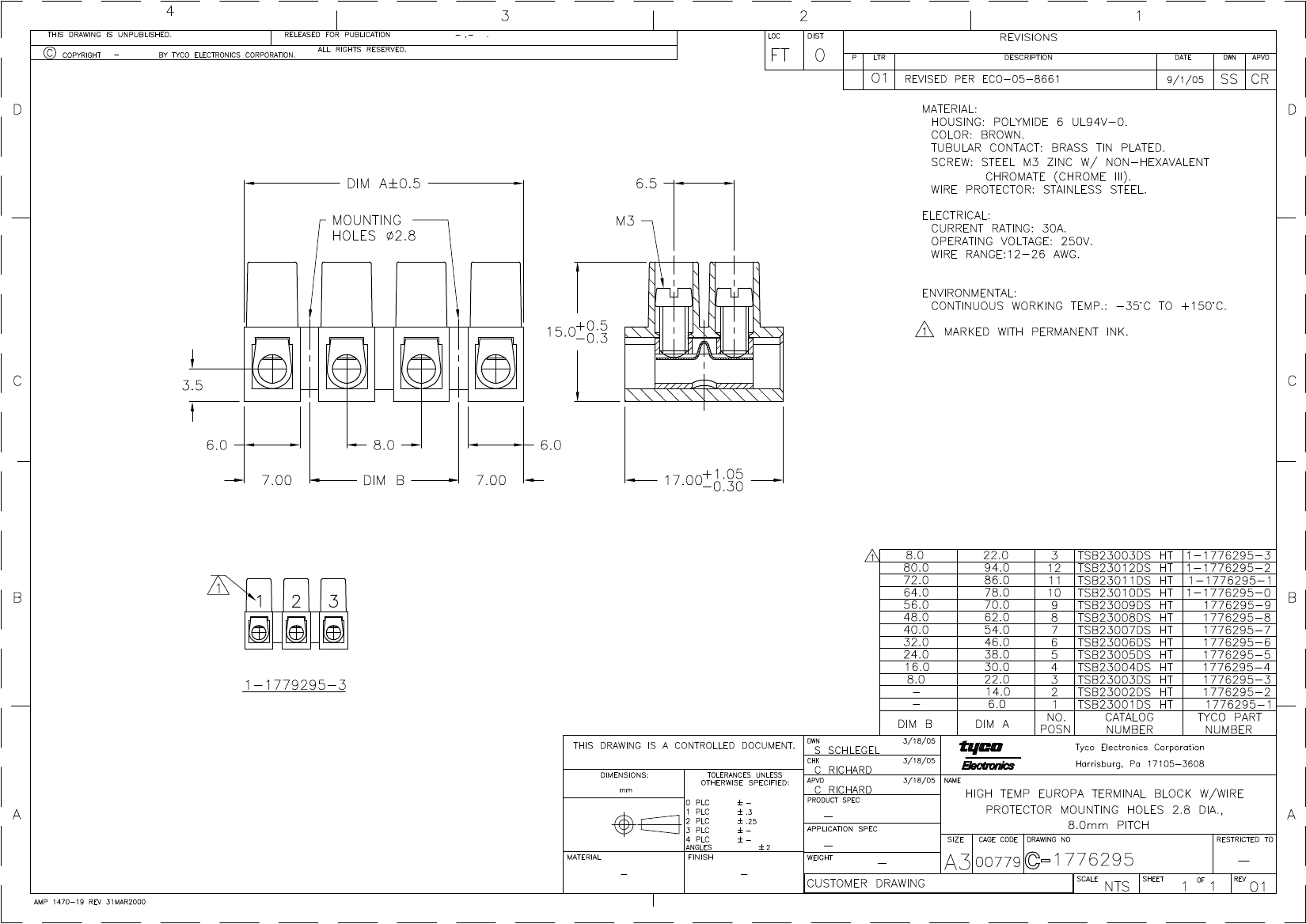

Preview

1776295-9: Descriptionconn terminal block 9circ 8mm; CategoryThe connector; File Size90KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1776295-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1776295-9	-	-	View	Buy Now

1776295-9 Overview

conn terminal block 9circ 8mm

1776295-9 Parametric

Parameter Name	Attribute value
Datasheets
1776295
RoHS Informati
1776295-9 Statement of Compliance
RoHS 2 Stateme
Standard Package	2,100
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Eurostyle Terminal Stri
Number of Circuits	9
Number of Wire Entries	18
Pitch	0.315" (8.00mm)
Number of Rows	2
Current Rating	30A
Voltage Rating	250V
Wire Gauge	12-26 AWG
Top Terminati	Screws
Bottom Terminati	Closed
Barrier Type	Enclosed
Features	-
Col	Brow
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc, Non-Hexavalent Chromate
Mounting Type	Chassis, Panel
Operating Temperature	-35°C ~ 150°C
Material - Insulati	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Other Names	TSB23009DSHT

Preview

Download Datasheet

View All

1776295-9 Related Products

	1776295-9	1776295-3	1776295-2	1-1776295-2
Description	conn terminal block 9circ 8mm	conn terminal block 3circ 8mm	conn terminal block 2circ 8mm	conn terminal block 12circ 8mm
Standard Package	2,100	2,000	2,000	400
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk	Bulk
Terminal Block Type	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri
Number of Circuits	9	3	2	12
Number of Wire Entries	18	6	4	24
Pitch	0.315" (8.00mm)	0.315" (8.00mm)	0.315" (8.00mm)	0.315" (8.00mm)
Number of Rows	2	2	2	2
Current Rating	30A	30A	30A	30A
Voltage Rating	250V	250V	250V	250V
Wire Gauge	12-26 AWG	12-26 AWG	12-26 AWG	12-26 AWG
Top Terminati	Screws	Screws	Screws	Screws
Bottom Terminati	Closed	Closed	Closed	Closed
Barrier Type	Enclosed	Enclosed	Enclosed	Enclosed
Col	Brow	Brow	Brow	Brow
Terminal Screw Material	Steel	Steel	Steel	Steel
Terminal Screw Finish	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate
Mounting Type	Chassis, Panel	Chassis, Panel	Chassis, Panel	Chassis, Panel
Operating Temperature	-35°C ~ 150°C	-35°C ~ 150°C	-35°C ~ 150°C	-35°C ~ 150°C
Material - Insulati	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Other Names	TSB23009DSHT	TSB23003DSHT	TSB23002DSHT	TSB23012DSHT
