1776310-5 datasheet, PDF - EEWORLD Datasheet

1776310-5: Descriptionconn terminal blk 5circ 13.5mm; CategoryThe connector; File Size74KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

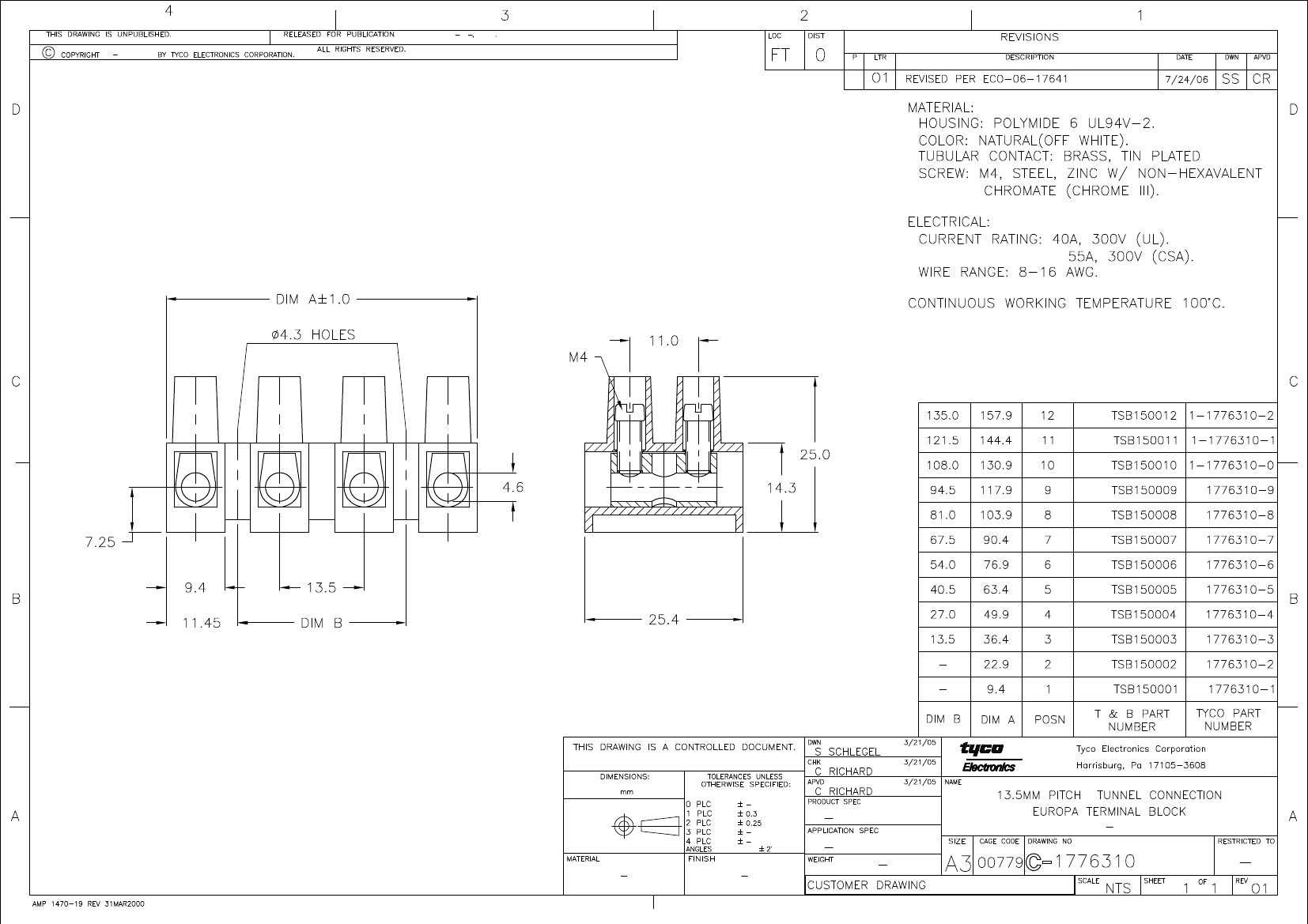

1776310-5 Overview

conn terminal blk 5circ 13.5mm

Parameter Name	Attribute value
Datasheets
1776310
RoHS Informati
1776310-5 Statement of Compliance
RoHS 2 Stateme
Standard Package	180
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Eurostyle Terminal Stri
Number of Circuits	5
Number of Wire Entries	10
Pitch	0.532" (13.50mm)
Number of Rows	2
Current Rating	40A
Voltage Rating	300V
Wire Gauge	8-16 AWG
Top Terminati	Screws
Bottom Terminati	Closed
Barrier Type	Enclosed
Features	-
Col	Natural
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc, Non-Hexavalent Chromate
Mounting Type	Chassis, Panel
Operating Temperature	100°C
Material - Insulati	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Other Names	TSB150005

	1776310-5	1776310-2	1776310-1
Description	conn terminal blk 5circ 13.5mm	conn terminal block 2circ 13.5mm	conn terminal block 1circ 13.5mm
Standard Package	180	2,000	12,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk
Terminal Block Type	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri
Number of Circuits	5	2	1
Number of Wire Entries	10	4	2
Pitch	0.532" (13.50mm)	0.532" (13.50mm)	-
Number of Rows	2	2	2
Current Rating	40A	40A	40A
Voltage Rating	300V	300V	300V
Wire Gauge	8-16 AWG	8-16 AWG	8-16 AWG
Top Terminati	Screws	Screws	Screws
Bottom Terminati	Closed	Closed	Closed
Barrier Type	Enclosed	Enclosed	Enclosed
Col	Natural	Natural	Natural
Terminal Screw Material	Steel	Steel	Steel
Terminal Screw Finish	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate	Zinc, Non-Hexavalent Chromate
Mounting Type	Chassis, Panel	Chassis, Panel	Chassis, Panel
Operating Temperature	100°C	100°C	100°C
Material - Insulati	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2	UL94 V-2
Other Names	TSB150005	TSB150002	TSB150001
