222-1-06-003 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 222-1-06-003

222-1-06-003: DescriptionIC adapter socket .100 6pos smd; CategoryThe connector; File Size109KB，1 Pages; ManufacturerCNC Tech; Environmental Compliance

Download Datasheet Parametric Compare View All

222-1-06-003 Overview

IC adapter socket .100 6pos smd

222-1-06-003 Parametric

Parameter Name	Attribute value
Datasheets

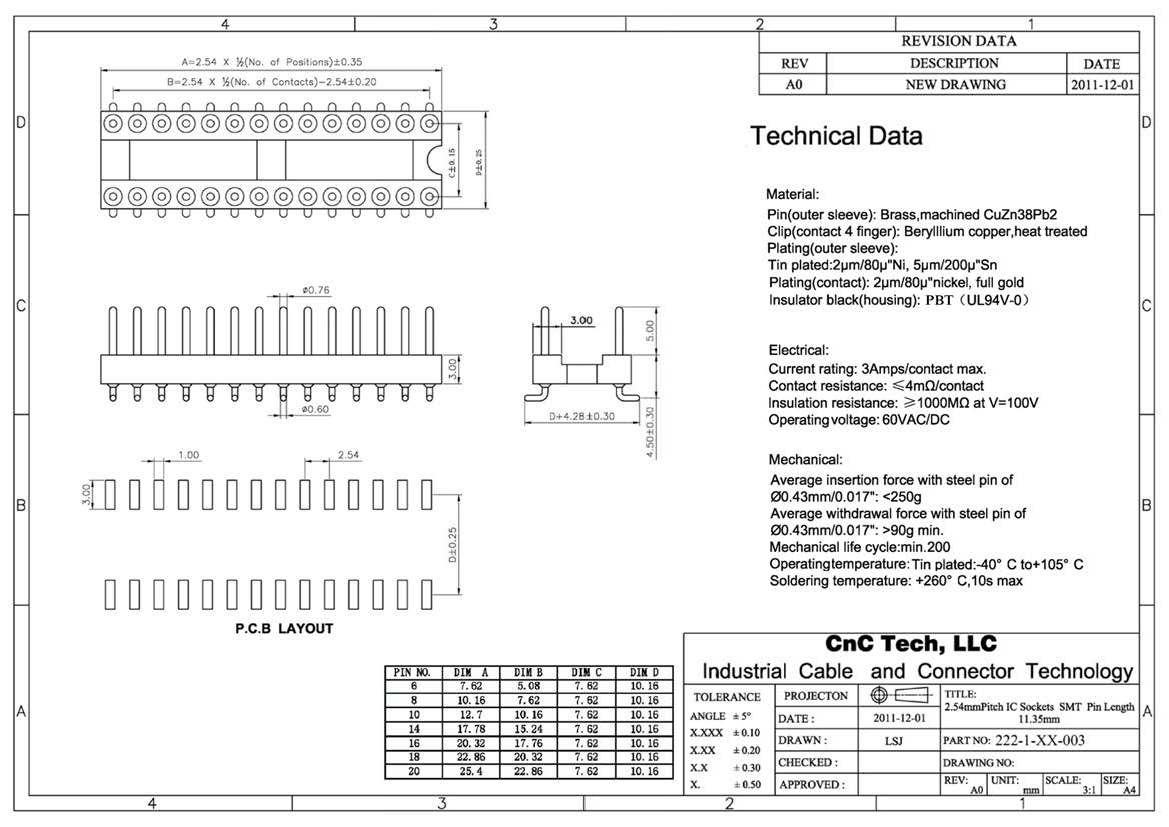

222-1-06-003 Drawing
Product Photos
222-1-06-003
Standard Package	80
Category	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Specialty Pi
Packaging	Tube
Connector Type	DIP, DIL - Heade
Contact Type	Male Pi
Number of Positions	6
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.300" (7.62mm)
Mounting Type	Surface Mou
Terminati	Solde
Features	-
Contact Finish	Gold
Contact Finish Thickness	-
Col	Black
Dynamic Catalog	CNC Tech
Other Names	1175-1528-5222-1-06-003-ND222106003

Preview

Download Datasheet

View All

222-1-06-003 Related Products

	222-1-06-003	222-1-08-003	222-1-16-003	222-1-14-003	222-1-18-003	222-1-20-003
Description	IC adapter socket .100 6pos smd	IC adapter socket .100 8pos smd	IC adapter socket .100 16pos smd	IC adapter socket .100 14pos smd	IC adapter socket .100 18pos smd	IC adapter socket .100 20pos smd
Standard Package	80	60	30	34	26	24
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Rectangular Connectors - Headers, Specialty Pi	Rectangular Connectors - Headers, Specialty Pi	Rectangular Connectors - Headers, Specialty Pi	Rectangular Connectors - Headers, Specialty Pi	Rectangular Connectors - Headers, Specialty Pi	Rectangular Connectors - Headers, Specialty Pi
Packaging	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	DIP, DIL - Heade	DIP, DIL - Heade	DIP, DIL - Heade	DIP, DIL - Heade	DIP, DIL - Heade	DIP, DIL - Heade
Contact Type	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi	Male Pi
Number of Positions	6	8	16	14	18	20
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2	2	2	2
Row Spacing	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)	0.300" (7.62mm)
Mounting Type	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou	Surface Mou
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Col	Black	Black	Black	Black	Black	Black
Dynamic Catalog	CNC Tech	CNC Tech	CNC Tech	CNC Tech	CNC Tech	CNC Tech
Other Names	1175-1528-5222-1-06-003-ND222106003	1175-1529-5222-1-08-003-ND222108003	1175-1531-5222-1-16-003-ND222116003	1175-1530-5222-1-14-003-ND222114003	1175-1532-5222-1-18-003-ND222118003	1175-1533-5222-1-20-003-ND222120003
