1-796641-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-796641-9

1-796641-9: Descriptionterm block plug 19pos str 5mm; CategoryThe connector; File Size224KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

1-796641-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-796641-9	-	-	View	Buy Now

1-796641-9 Overview

term block plug 19pos str 5mm

1-796641-9 Parametric

Parameter Name	Attribute value
Datasheets
796641
RoHS Informati
1-796641-9 Statement of Compliance
RoHS 2 Stateme
Standard Package	200
Category	Connectors, Interconnects
Family	Terminal Blocks - Headers, Plugs and Sockets
Packaging	Bulk
Terminal Block Type	Plug, Female Sockets
Number of Positions	19
Positions Per Level	19
Pitch	0.197" (5.00mm)
Number of Levels	1
Header Orientati	-
Plug Wire Entry	180°
Terminati	Screw
Wire Gauge	12-30 AWG
Curre	15A
Voltage	300V
Mounting Type	Free Hanging (In-Line)
Features	Retention Latches (Non-Wire Side)
Col	Black
Mating Products	1-796700-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-796699-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-796698-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-796697-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-796645-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-1546212-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-1546211-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-1546210-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-1546209-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-1546179-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-1546106-9-ND - TERM BLOCK HDR 38POS VERT 5MM1-796642-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-796643-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-282822-9-ND - TERM BLOCK HDR 19POS VERT 5MM1-282812-9-ND - TERM BLOCK HDR 19POS R/A 5MM1-796644-9-ND - TERM BLOCK HDR 19POS R/A 5MM
Associated Produc	282928-5-ND - TERM BLOCK ADH LABEL 10POS 41-50282928-4-ND - TERM BLOCK ADH LABEL 10POS 31-40282928-3-ND - TERM BLOCK ADH LABEL 10POS 21-30A113341-ND - TERM BLOCK ADH LABEL 10POS 11-20282928-1-ND - TERM BLOCK ADH LABEL 10POS 1-10

Preview

Download Datasheet

View All

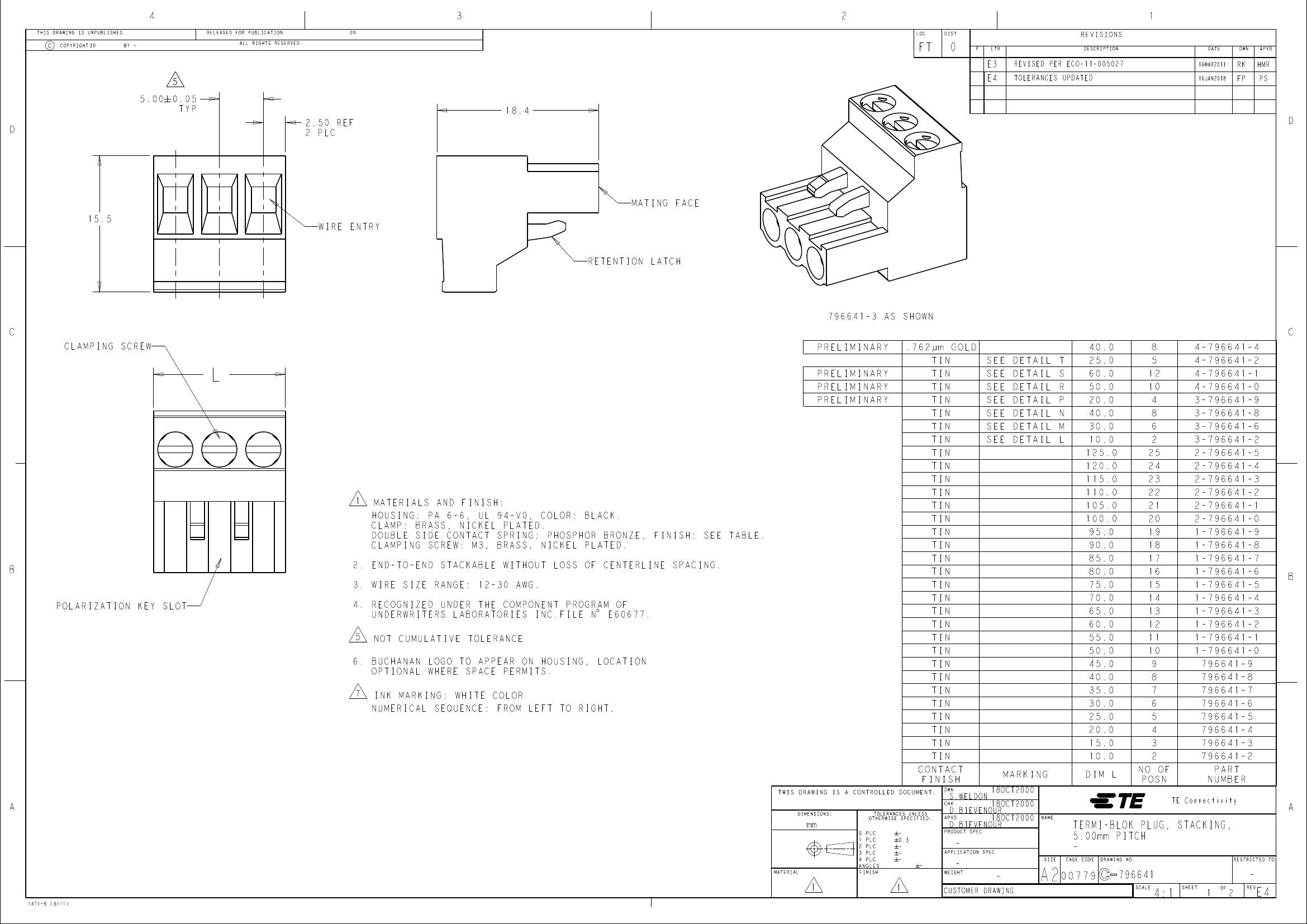

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-11-005027

TOLERANCES UPDATED

16MAR2011

16JAN2018

HMR

5.00

0.05

TYP

18.4

2.50 REF

2 PLC

MATING FACE

15.5

WIRE ENTRY

RETENTION LATCH

796641-3 AS SHOWN

CLAMPING SCREW

PRELIMINARY

.762µm GOLD

TIN

PRELIMINARY

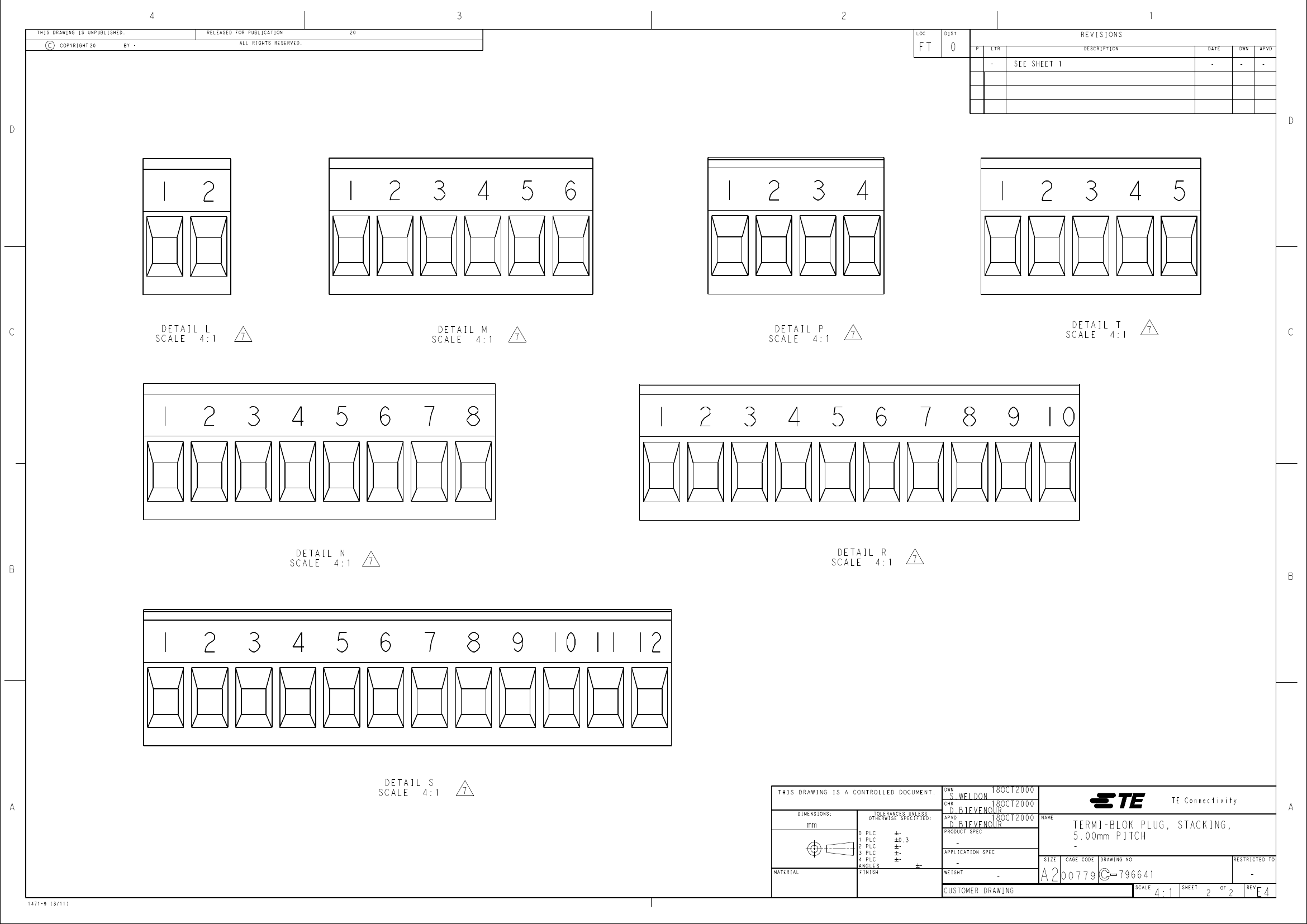

SEE DETAIL T

40.0

SEE DETAIL S

SEE DETAIL R

SEE DETAIL P

SEE DETAIL N

SEE DETAIL M

SEE DETAIL L

25.0

60.0

50.0

20.0

40.0

30.0

10.0

NO OF

POSN

4- 796641 -4

4- 796641 -2

4- 796641 -1

4- 796641 -0

3- 796641 -9

3- 796641 -8

3- 796641 -6

3- 796641 -2

2- 796641 -5

2- 796641 -4

2- 796641 -3

2- 796641 -2

2- 796641 -1

2- 796641 -0

1- 796641 -9

1- 796641 -8

1- 796641 -7

1- 796641 -6

1- 796641 -5

1- 796641 -4

1- 796641 -3

1- 796641 -2

1- 796641 -1

1- 796641 -0

796641 -9

796641 -8

796641 -7

796641 -6

796641 -5

796641 -4

796641 -3

796641 -2

PART

NUMBER

125.0

120.0

115.0

110.0

105.0

100.0

95.0

90.0

85.0

80.0

75.0

70.0

65.0

60.0

55.0

50.0

45.0

40.0

35.0

30.0

25.0

20.0

15.0

10.0

HOUSING: PA 6-6, UL 94-V0, COLOR: BLACK.

CLAMP: BRASS, NICKEL PLATED.

DOUBLE SIDE CONTACT SPRING: PHOSPHOR BRONZE, FINISH: SEE TABLE.

CLAMPING SCREW: M3, BRASS, NICKEL PLATED.

MATERIALS AND FINISH:

TIN

CONTACT

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

POLARIZATION KEY SLOT

2. END-TO-END STACKABLE WITHOUT LOSS OF CENTERLINE SPACING.

3. WIRE SIZE RANGE: 12-30 AWG.

4. RECOGNIZED UNDER THE COMPONENT PROGRAM OF

UNDERWRITERS LABORATORIES INC.FILE N $ E60677.

NOT CUMULATIVE TOLERANCE

6. BUCHANAN LOGO TO APPEAR ON HOUSING, LOCATION

OPTIONAL WHERE SPACE PERMITS.

INK MARKING: WHITE COLOR

NUMERICAL SEQUENCE: FROM LEFT TO RIGHT.

TIN

MARKING

18OCT2000

NAME

DIM L

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

18OCT2000

D.BIEVENOUR

APVD

18OCT2000

D.BIEVENOUR

PRODUCT SPEC

APPLICATION SPEC

S.WELDON

TE Connectivity

WEIGHT

1471-9 (3/11)

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

TERMI-BLOK PLUG, STACKING,

5.00mm PITCH

DRAWING NO

RESTRICTED TO

796641

SCALE

4:1

SHEET

REV
