3-1546468-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1546468-1

3-1546468-1: Descriptionbarrier strip 3circ p107 style; CategoryThe connector; File Size198KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-1546468-1 Overview

barrier strip 3circ p107 style

3-1546468-1 Parametric

Parameter Name	Attribute value
Datasheets

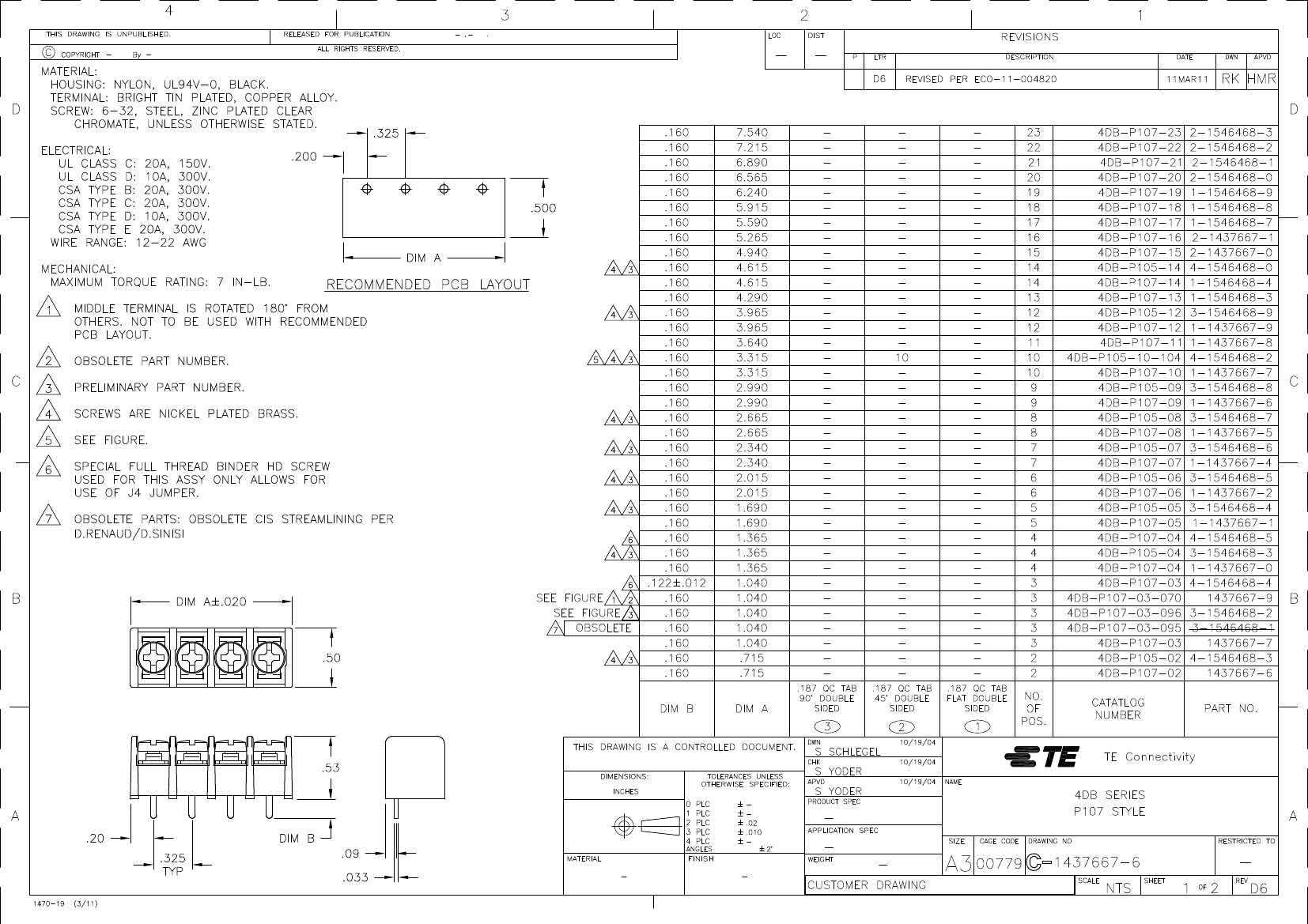

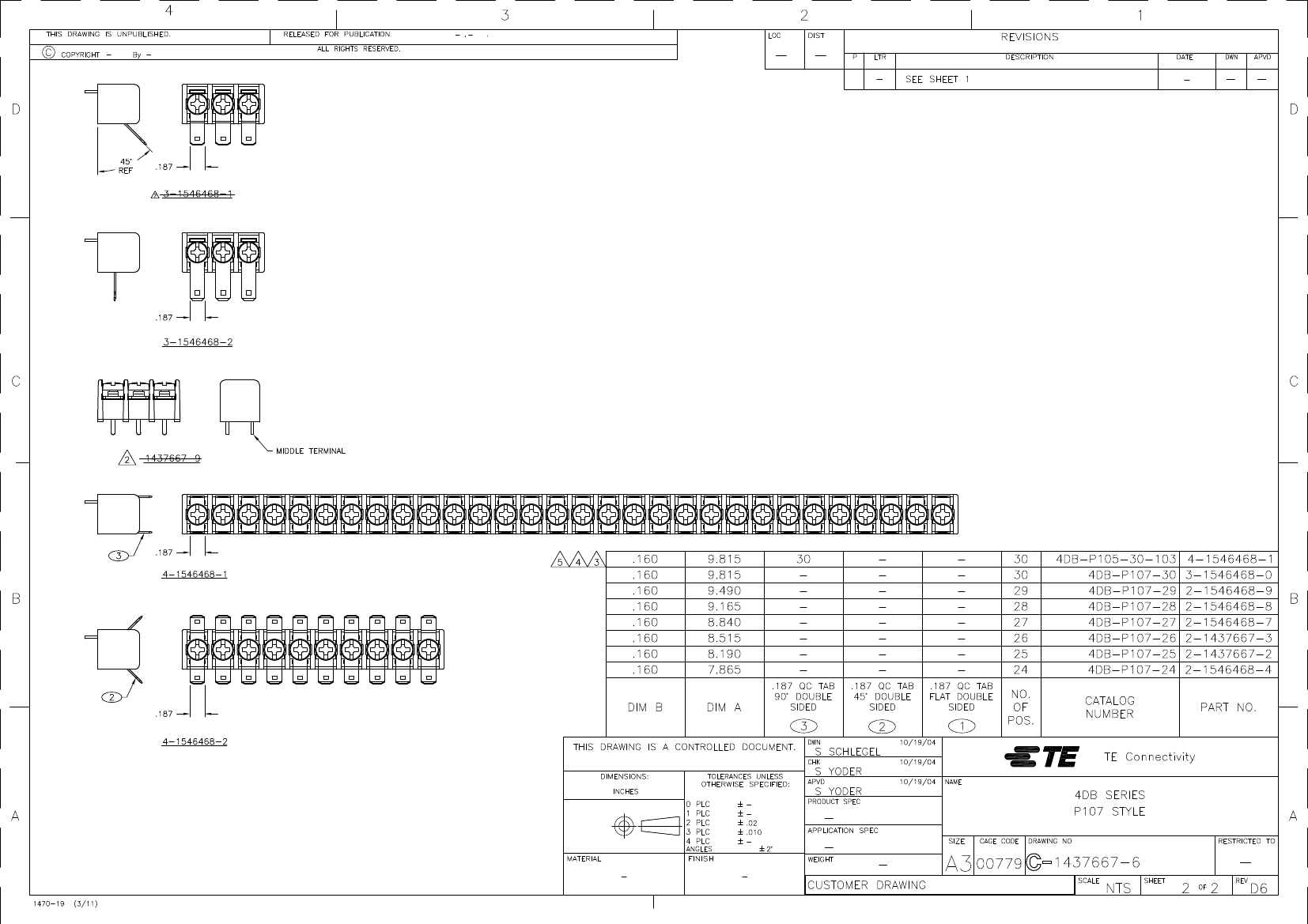

1437667, 1546468 Drawing
Standard Package	100
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Barrier Block
Number of Circuits	3
Number of Wire Entries	3
Pitch	0.325" (8.26mm)
Number of Rows	1
Current Rating	20A
Voltage Rating	150V
Wire Gauge	12-22 AWG
Top Terminati	Screws with Quick Connect Tabs
Bottom Terminati	PC Pi
Barrier Type	2 Wall (Dual)
Features	-
Col	Black
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc, Clear Chromate
Mounting Type	Through Hole
Operating Temperature	105°C
Material - Insulati	Polyamide (PA), Nyl
Material Flammability Rating	UL94 V-0

Preview

Download Datasheet

View All

3-1546468-1 Related Products

	3-1546468-1	1-1437667-9	4DB-P107-09	4DB-P107-02	4DB-P107-16	4DB-P107-03	2-1437667-2
Description	barrier strip 3circ p107 style	conn barrier block 12circ 8.26mm	conn barrier strip 9circ .325	barrier strip 2circ vert .325"	conn barrier block 16circ 8.26mm	barrier strip 3circ sgl .325"	conn barrier block 25circ 8.26mm
Standard Package	100	16	40	2,080	8	72	200
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Terminal Block Type	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block	Barrier Block
Number of Circuits	3	12	9	2	16	3	25
Number of Wire Entries	3	12	9	2	16	3	25
Pitch	0.325" (8.26mm)	0.325" (8.26mm)	0.325" (8.26mm)	0.325" (8.26mm)	0.325" (8.26mm)	0.325" (8.26mm)	0.325" (8.26mm)
Number of Rows	1	1	1	1	1	1	1
Current Rating	20A	20A	20A	20A	20A	20A	20A
Voltage Rating	150V	150V	150V	150V	150V	150V	150V
Wire Gauge	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG	12-22 AWG
Top Terminati	Screws with Quick Connect Tabs	Screws	Screws	Screws	Screws	Screws	Screws
Bottom Terminati	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi	PC Pi
Barrier Type	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)	2 Wall (Dual)
Col	Black	Black	Black	Black	Black	Black	Black
Terminal Screw Material	Steel	Steel	Steel	Steel	Steel	Steel	Steel
Terminal Screw Finish	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate	Zinc, Clear Chromate
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Operating Temperature	105°C	105°C	105°C	105°C	105°C	105°C	105°C
Material - Insulati	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl	Polyamide (PA), Nyl
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Other Names	-	1-1437667-9-ND1143766794DB-P107-12A106612	1-1437667-61-1437667-6-NDA111890	1437667-61437667-6-NDA112168	2-1437667-12-1437667-1-NDA113134	1437667-71437667-7-NDA112169	4DB-P107-25
