8-1437387-5: Descriptionterm barrier str 2cir 12-26awg; CategoryThe connector; File Size81KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

8-1437387-5 Overview

term barrier str 2cir 12-26awg

8-1437387-5 Parametric

Parameter Name	Attribute value
Datasheets

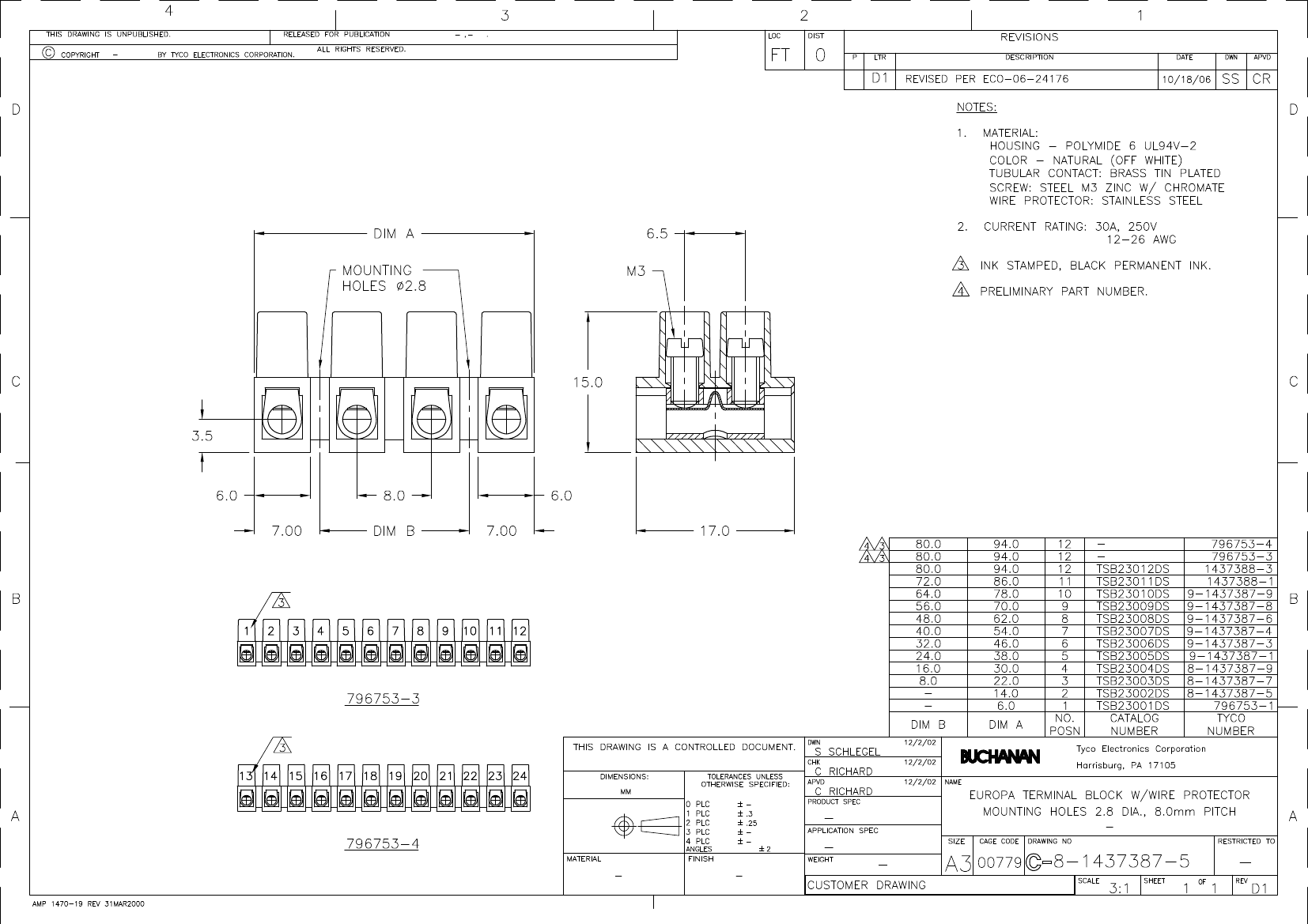

8-1437387-5 Drawing
Standard Package	3,000
Category	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks
Packaging	Bulk
Terminal Block Type	Eurostyle Terminal Stri
Number of Circuits	2
Number of Wire Entries	4
Pitch	0.315" (8.00mm)
Number of Rows	2
Current Rating	30A
Voltage Rating	250V
Wire Gauge	12-26 AWG
Top Terminati	Screws
Bottom Terminati	Closed
Barrier Type	Enclosed
Features	-
Col	Natural
Terminal Screw Material	Steel
Terminal Screw Finish	Zinc, Chromate
Mounting Type	Chassis, Panel
Operating Temperature	100°C
Material - Insulati	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2

Preview

Download Datasheet

View All

SUPERSEDED

NOT the LATEST

REVISION

8-1437387-5 Related Products

	8-1437387-5	9-1437387-4	8-1437387-9	9-1437387-6	9-1437387-1
Description	term barrier str 2cir 12-26awg	term block 7circ 12-26awg .315	conn term block 4circ 12-26awg	conn term block 8circ 26-12awg	conn term block 5circ 26-12awg
Standard Package	3,000	450	1	1	500
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks	Terminal Blocks - Barrier Blocks
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Terminal Block Type	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri	Eurostyle Terminal Stri
Number of Circuits	2	7	4	8	5
Number of Wire Entries	4	14	8	16	10
Pitch	0.315" (8.00mm)	0.315" (8.00mm)	0.315" (8.00mm)	0.315" (8.00mm)	0.315" (8.00mm)
Number of Rows	2	2	2	2	2
Current Rating	30A	30A	30A	30A	30A
Voltage Rating	250V	250V	250V	250V	250V
Wire Gauge	12-26 AWG	12-26 AWG	12-26 AWG	12-26 AWG	12-26 AWG
Top Terminati	Screws	Screws	Screws	Screws	Screws
Bottom Terminati	Closed	Closed	Closed	Closed	Closed
Barrier Type	Enclosed	Enclosed	Enclosed	Enclosed	Enclosed
Col	Natural	Natural	Natural	Natural	Natural
Terminal Screw Material	Steel	Steel	Steel	Steel	Steel
Terminal Screw Finish	Zinc, Chromate	Zinc, Chromate	Zinc, Chromate	Zinc, Chromate	Zinc, Chromate
Mounting Type	Chassis, Panel	Chassis, Panel	Chassis, Panel	Chassis, Panel	Chassis, Panel
Operating Temperature	100°C	100°C	100°C	100°C	100°C
Material - Insulati	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2	UL94 V-2	UL94 V-2	UL94 V-2	UL94 V-2
