1
2
3
4
5

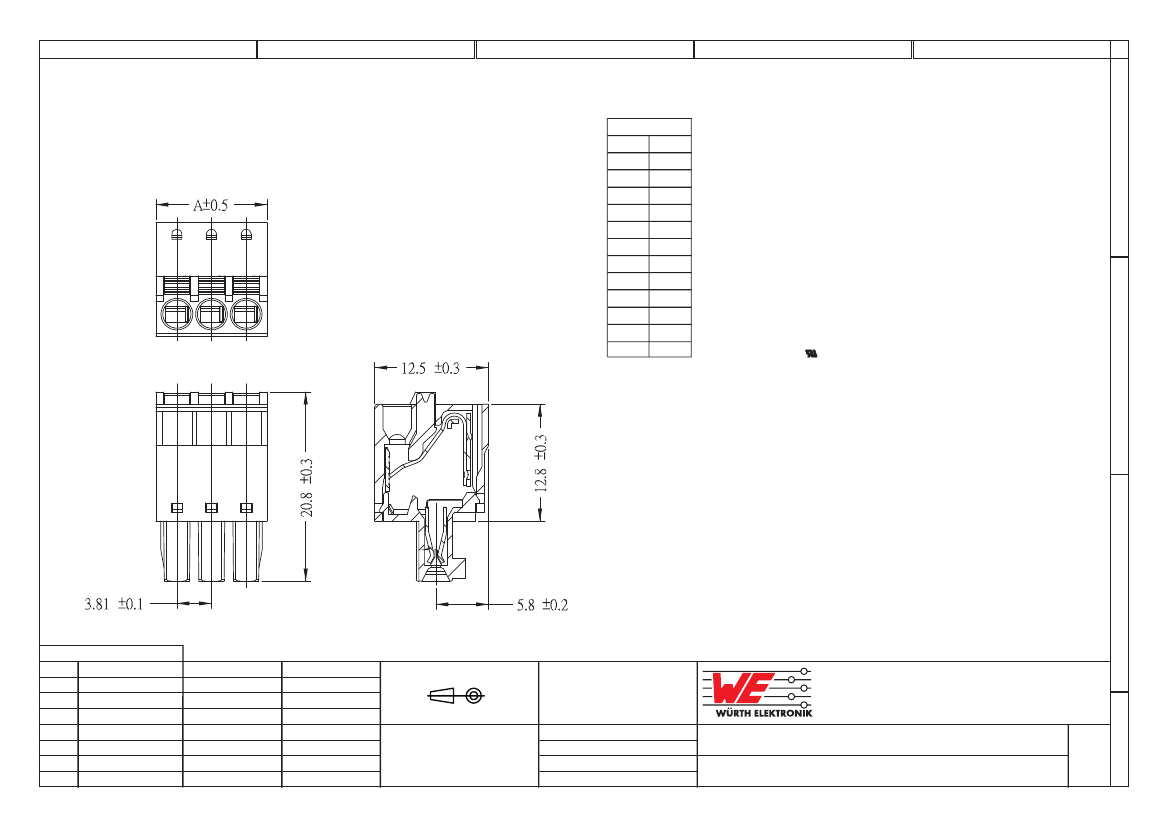

Pitch:3.81mm
Poles A(mm)
2
8.42
3
12.23
4
16.04
5
19.85
6
23.66
7
27.47
8
31.28
9
35.09
10
38.90
11
42.71
12
46.52
14
54.14
TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREEN & ORANGE
METAL SPRING: STAINLESS STRIP STEEL
WIRE GUARD: PhBz TIN PLATED
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 115°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
c
us
CERTIFIED E315414
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
WIRE STRIPE LENGTH: 9 MM
PITCH: 3.81 MM
PACKAGING
BOX
28-16 AWG / 0.081-1.31 MM²
28-16 AWG / 0.081-1.31 MM²
cULus
8A
300VAC
2.0KV
20 mOhm max
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
01-FEB-17
02-JUL-13
20-JUN-12
DATE
UPDATE
STANDARD POLES
PDF
FILE
ES
QL
GG
BY
APPROVAL: RJ
SCALE:
SHEET: 1/2
DRAW: MARVIN
WERI PART NO: 691 368 300 0xx B
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: SERIE 368B - 3.81MM Scewless Vertical Cable Entry Plug
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET: 2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
