Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/180 | SC 3.81/180F
General ordering data
Order No.
Part designation
Version
EAN
Qty.
System parameters
Fitted to PCB
Outgoing elbow
Pitch
Pitch in inch
No. of poles
Solder pin length
Can be coded
No. of rows
No. of solder pins per pole
Dia. of fitting hole
Fitting hole tolerance
L1 in mm
L1 in inch
Insulation resistance
Electric shock protection to DIN VDE 0470
Electric shock protection to DIN VDE 0470
Material data
Insulating material
Colour
colour chart
Insulating material group
Flammability class UL 94
CTI
Contact base material
1793710000
SC 3.81/03/180F 3.2SN BK BX
PCB plug-in connector, Male connectors, Soldered
connection, Pitch: 3.81 mm, No. of poles: 3, 180°,
Box
4032248230839
50 pc(s).
Soldered connection
180°
3.81 mm
0.15 inch
3
3.2 mm
Yes
1
1
1.2 mm
+ 0.1 mm
7.62 mm
0.3 inch
1,000 MΩ
IP 20
Safe from finger touch
PA GF
black
Similar to RAL 9011
II
V-0
>= 475
Copper alloy
-1-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/180 | SC 3.81/180F
Material data
Contact surface
Constant operating temp., min.
Constant operating temp., max.
Storage temperature, min.
Storage temperature, max.
Max. relative humidity during storage
DIN IEC rating data
Rated current, min. No. pins (Tu=20°C)
Rated current, min. No. pins(Tu=40°C)
Rated voltage for overvoltage class/pollution
severity III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Rated voltage for overvoltage class/pollution
severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated voltage for overvoltage class/pollution
severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group D)
Rated current (Use group D)
UL 1059 rating data
Rated voltage (Use group D)
Rated current (Use group D)
Approvals
Approvals institutes
tinned
-25 °C
120 °C
-25 °C
55 °C
93 %
17.5 A
17.5 A
160 V
2.5 kV
160 V
2.5 kV
320 V
2.5 kV
3 x 1s with 76 A
300 V
10 A
300 V
10 A
Classifications
eClass 4.1
eClass 5.0
eClass 5.1
27-26-07-01
27-26-07-01
27-26-07-04
Similar products
Order No.
1943180000
Part designation
SC 3.81/02/180F 3.2SN OR BX
Version
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/180 | SC 3.81/180F
1793700000
1793790000
1943190000
1793800000
1943200000
1793720000
1793810000
1943210000
1793730000
1793820000
1943220000
1793740000
1793830000
1943230000
1837010000
1943370000
1943240000
1793750000
1793840000
1943250000
1943470000
1943380000
1943260000
1793760000
1793850000
1943270000
SC 3.81/02/180F 3.2SN BK BX
SC 3.81/02/180F 3.2SN GN BX
SC 3.81/03/180F 3.2SN OR BX
SC 3.81/03/180F 3.2SN GN BX
SC 3.81/04/180F 3.2SN OR BX
SC 3.81/04/180F 3.2SN BK BX
SC 3.81/04/180F 3.2SN GN BX
SC 3.81/05/180F 3.2SN OR BX
SC 3.81/05/180F 3.2SN BK BX
SC 3.81/05/180F 3.2SN GN BX
SC 3.81/06/180F 3.2SN OR BX
SC 3.81/06/180F 3.2SN BK BX
SC 3.81/06/180F 3.2SN GN BX
SC 3.81/07/180F 3.2SN OR BX
SC 3.81/07/180F 3.2SN BK BX
SC 3.81/07/180F 3.2SN GN BX
SC 3.81/08/180F 3.2SN OR BX
SC 3.81/08/180F 3.2SN BK BX
SC 3.81/08/180F 3.2SN GN BX
SC 3.81/09/180F 3.2SN OR BX
SC 3.81/09/180F 3.2SN BK BX
SC 3.81/09/180F 3.2SN GN BX
SC 3.81/10/180F 3.2SN OR BX
SC 3.81/10/180F 3.2SN BK BX
SC 3.81/10/180F 3.2SN GN BX
SC 3.81/11/180F 3.2SN OR BX
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 2, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 3, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 4, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 5, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 6, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 7, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 8, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 9, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 10, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
-3-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/180 | SC 3.81/180F
1943480000
1943390000
1943280000
1793770000
1793860000
1943290000
1943490000
1943400000
1943300000
1943500000
1943410000
1943310000
1943510000
1943420000
1943320000
1793780000
1793870000
1943330000
1943520000
1943430000
1943340000
1943530000
1943440000
1943350000
1943540000
1943450000
SC 3.81/11/180F 3.2SN BK BX
SC 3.81/11/180F 3.2SN GN BX
SC 3.81/12/180F 3.2SN OR BX
SC 3.81/12/180F 3.2SN BK BX
SC 3.81/12/180F 3.2SN GN BX
SC 3.81/13/180F 3.2SN OR BX
SC 3.81/13/180F 3.2SN BK BX
SC 3.81/13/180F 3.2SN GN BX
SC 3.81/14/180F 3.2SN OR BX
SC 3.81/14/180F 3.2SN BK BX
SC 3.81/14/180F 3.2SN GN BX
SC 3.81/15/180F 3.2SN OR BX
SC 3.81/15/180F 3.2SN BK BX
SC 3.81/15/180F 3.2SN GN BX
SC 3.81/16/180F 3.2SN OR BX
SC 3.81/16/180F 3.2SN BK BX
SC 3.81/16/180F 3.2SN GN BX
SC 3.81/17/180F 3.2SN OR BX
SC 3.81/17/180F 3.2SN BK BX
SC 3.81/17/180F 3.2SN GN BX
SC 3.81/18/180F 3.2SN OR BX
SC 3.81/18/180F 3.2SN BK BX
SC 3.81/18/180F 3.2SN GN BX
SC 3.81/19/180F 3.2SN OR BX
SC 3.81/19/180F 3.2SN BK BX
SC 3.81/19/180F 3.2SN GN BX
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 11, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 12, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 13, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 14, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 15, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 16, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 17, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 18, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 19, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 19, 180°, Box
-4-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 3.81 mm (0.150 inch) | Plug connectors,
solder connection, pitch 3.81 | SC 3.81/180 | SC 3.81/180F
1943360000
1943550000
1943460000
SC 3.81/20/180F 3.2SN OR BX
SC 3.81/20/180F 3.2SN BK BX
SC 3.81/20/180F 3.2SN GN BX
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,
Pitch: 3.81 mm, No. of poles: 20, 180°, Box
PCB plug-in connector, Male connectors, Soldered connection,

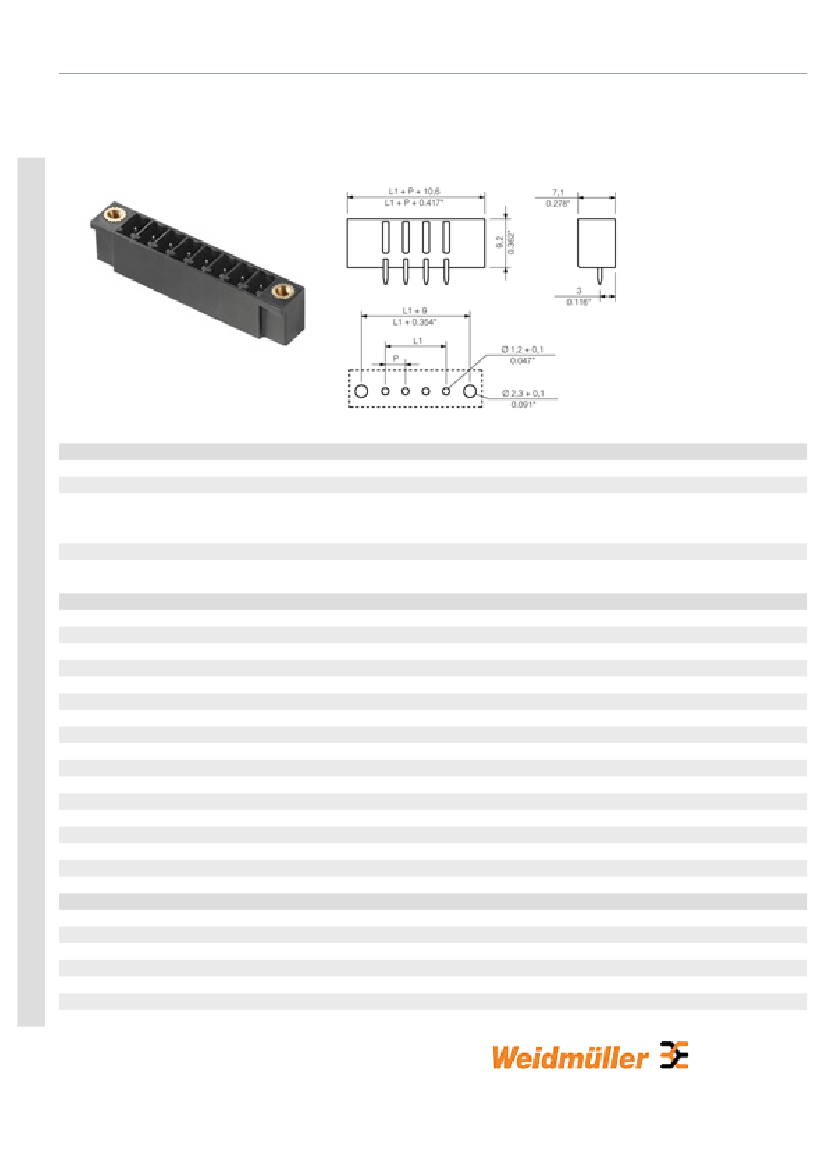

Pitch: 3.81 mm, No. of poles: 20, 180°, Box
-5-
DSP and ARM Processors
京公网安备 11010802033920号
EEWORLD
