341001-1: Descriptionconn QC rcpt 11-13awg 0.250; CategoryThe connector; File Size84KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

341001-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	341001-1	-	-	View	Buy Now

341001-1 Overview

conn QC rcpt 11-13awg 0.250

341001-1 Parametric

Parameter Name	Attribute value
Datasheets

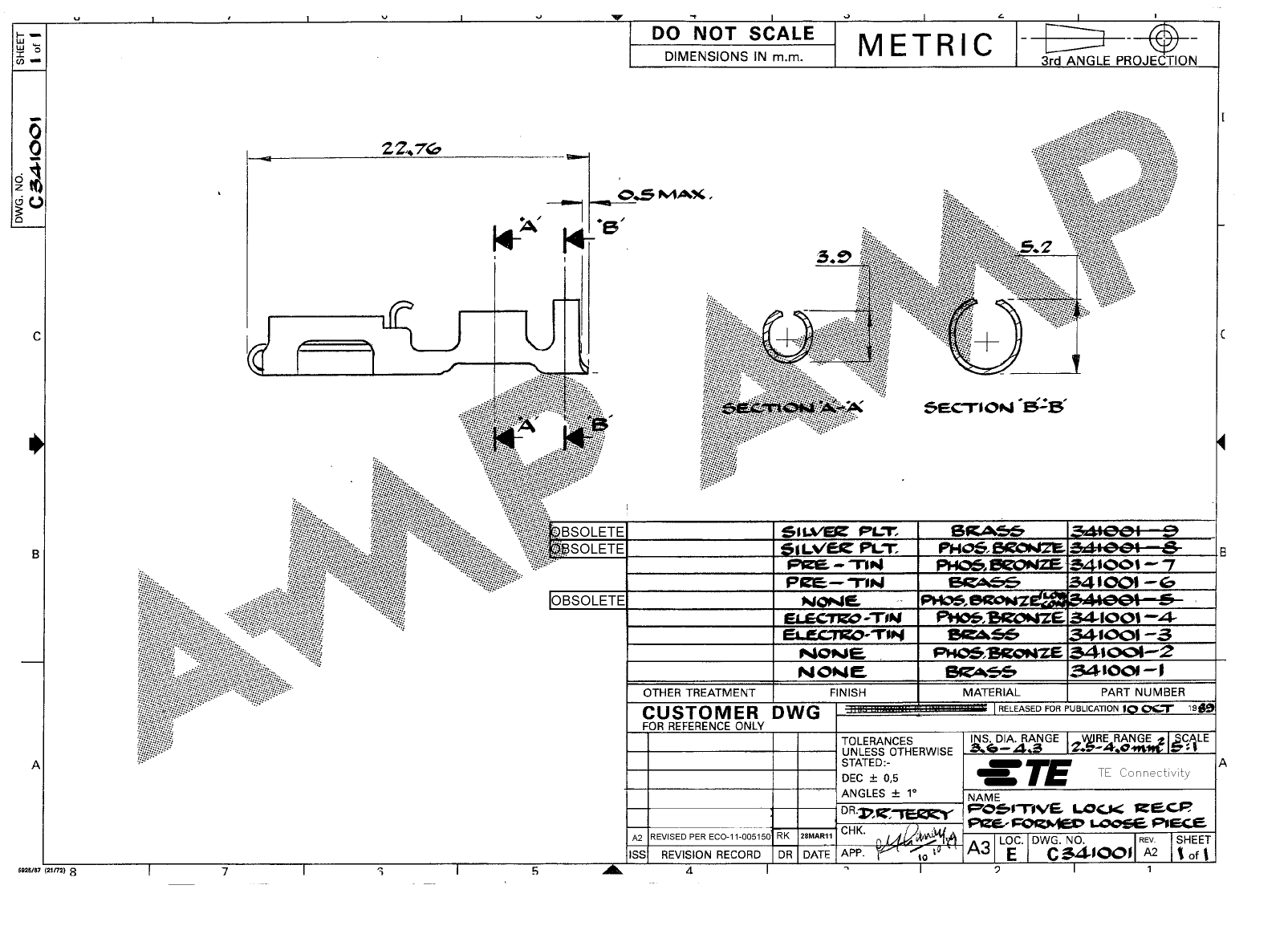

341001 Drawing
RoHS Informati
341001-1 Statement of Compliance
RoHS 2 Stateme
3D Model
341001-1.pdf
Standard Package	25,000
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Bulk
Terminal Type	Standard
Gende	Female
Tab Width	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)
Tab Length	-
Length - Overall	0.896" (22.76mm)
Terminati	Crim
Wire Gauge	11-13 AWG
Insulati	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Col	-
Contact Material	Brass
Contact Finish	-
Insulation Diamete	0.142" ~ 0.169" (3.61mm ~ 4.29mm)
For Use With	926646-8-ND - CONN RCPT HSG 8POS .250 WHITE927553-1-ND - CONN RCPT HSG 2POS .250 BLACK927422-1-ND - CONN RCPT HSG 3POS .250 BLACK927389-2-ND - CONN RCPT HSG 3POS .250 WHITE927389-1-ND - CONN RCPT HSG 3POS .250 BLACK926646-4-ND - CONN RCPT HSG 8POS .250 RED926646-3-ND - CONN RCPT HSG 8POS .250 NATURALA106953-ND - CONN RCPT HSG 8POS .250 BLACK520961-3-ND - CONN RCPT HSG .250X.032 NATURALA113831-ND - CONN RCPT HSG 2POS .250 BLACK365016-1-ND - CONN RCPT HSG 8POS .250 BLACK215956-1-ND - CONN RCPT HSG 4POS .250 BLACK215754-5-ND - CONN RCPT HSG 9POS .250 BLACK215528-1-ND - CONN RCPT HSG 2POS .250 BLACK8-154719-4-ND - CONN RCPT HSG 1POS .250 NATURAL8-154719-3-ND - CONN RCPT HSG 1POS .250 TCOTTA8-154719-0-ND - CONN RCPT HSG 1POS .250 CLEAR6-154719-6-ND - CONN RCPT HSG 1POS .250 BLACK4-154719-0-ND - CONN RCPT HSG 1POS .250 BLACKA106865-ND - CONN RCPT HSG 1POS .250 NATURAL154719-9-ND - CONN RCPT HSG 1POS .250 BROWN154719-6-ND - CONN RCPT HSG 1POS .250 BLUE154719-4-ND - CONN RCPT HSG 1POS .250 YELLOWA112388-ND - CONN RCPT HSG 1POS .250 RED
Associated Produc	654174-1-ND - TOOL HAND CRIMPER 0.5-4.0MM525651-ND - TOOL HAND CRIMP 11-18AWG

Preview

Download Datasheet

View All

341001-1 Related Products

	341001-1	341001-3
Description	conn QC rcpt 11-13awg 0.250	conn QC rcpt 11-13awg 0.250
Standard Package	25,000	25,000
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Bulk	Bulk
Terminal Type	Standard	Standard
Gende	Female	Female
Tab Width	0.250" (6.35mm)	0.250" (6.35mm)
Tab Thickness	0.032" (0.81mm)	0.032" (0.81mm)
Length - Overall	0.896" (22.76mm)	0.896" (22.76mm)
Terminati	Crim	Crim
Wire Gauge	11-13 AWG	11-13 AWG
Insulati	Non-Insulated	Non-Insulated
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Material	Brass	Brass
Insulation Diamete	0.142" ~ 0.169" (3.61mm ~ 4.29mm)	0.142" ~ 0.169" (3.61mm ~ 4.29mm)
For Use With	926646-8-ND - CONN RCPT HSG 8POS .250 WHITE927553-1-ND - CONN RCPT HSG 2POS .250 BLACK927422-1-ND - CONN RCPT HSG 3POS .250 BLACK927389-2-ND - CONN RCPT HSG 3POS .250 WHITE927389-1-ND - CONN RCPT HSG 3POS .250 BLACK926646-4-ND - CONN RCPT HSG 8POS .250 RED926646-3-ND - CONN RCPT HSG 8POS .250 NATURALA106953-ND - CONN RCPT HSG 8POS .250 BLACK520961-3-ND - CONN RCPT HSG .250X.032 NATURALA113831-ND - CONN RCPT HSG 2POS .250 BLACK365016-1-ND - CONN RCPT HSG 8POS .250 BLACK215956-1-ND - CONN RCPT HSG 4POS .250 BLACK215754-5-ND - CONN RCPT HSG 9POS .250 BLACK215528-1-ND - CONN RCPT HSG 2POS .250 BLACK8-154719-4-ND - CONN RCPT HSG 1POS .250 NATURAL8-154719-3-ND - CONN RCPT HSG 1POS .250 TCOTTA8-154719-0-ND - CONN RCPT HSG 1POS .250 CLEAR6-154719-6-ND - CONN RCPT HSG 1POS .250 BLACK4-154719-0-ND - CONN RCPT HSG 1POS .250 BLACKA106865-ND - CONN RCPT HSG 1POS .250 NATURAL154719-9-ND - CONN RCPT HSG 1POS .250 BROWN154719-6-ND - CONN RCPT HSG 1POS .250 BLUE154719-4-ND - CONN RCPT HSG 1POS .250 YELLOWA112388-ND - CONN RCPT HSG 1POS .250 RED	926646-8-ND - CONN RCPT HSG 8POS .250 WHITE927553-1-ND - CONN RCPT HSG 2POS .250 BLACK927422-1-ND - CONN RCPT HSG 3POS .250 BLACK927389-2-ND - CONN RCPT HSG 3POS .250 WHITE927389-1-ND - CONN RCPT HSG 3POS .250 BLACK926646-4-ND - CONN RCPT HSG 8POS .250 RED926646-3-ND - CONN RCPT HSG 8POS .250 NATURALA106953-ND - CONN RCPT HSG 8POS .250 BLACK520961-3-ND - CONN RCPT HSG .250X.032 NATURALA113831-ND - CONN RCPT HSG 2POS .250 BLACK365016-1-ND - CONN RCPT HSG 8POS .250 BLACK215956-1-ND - CONN RCPT HSG 4POS .250 BLACK215754-5-ND - CONN RCPT HSG 9POS .250 BLACK215528-1-ND - CONN RCPT HSG 2POS .250 BLACK8-154719-4-ND - CONN RCPT HSG 1POS .250 NATURAL8-154719-3-ND - CONN RCPT HSG 1POS .250 TCOTTA8-154719-0-ND - CONN RCPT HSG 1POS .250 CLEAR6-154719-6-ND - CONN RCPT HSG 1POS .250 BLACK4-154719-0-ND - CONN RCPT HSG 1POS .250 BLACKA106865-ND - CONN RCPT HSG 1POS .250 NATURAL154719-9-ND - CONN RCPT HSG 1POS .250 BROWN154719-6-ND - CONN RCPT HSG 1POS .250 BLUE154719-4-ND - CONN RCPT HSG 1POS .250 YELLOWA112388-ND - CONN RCPT HSG 1POS .250 RED
Associated Produc	654174-1-ND - TOOL HAND CRIMPER 0.5-4.0MM525651-ND - TOOL HAND CRIMP 11-18AWG	654174-1-ND - TOOL HAND CRIMPER 0.5-4.0MM525651-ND - TOOL HAND CRIMP 11-18AWG
