Product catalogue | Functional Electronics | Interface elements | Interface element IEC 807-2 | RSSD 45 mm screw
connection/ SUB-D
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Connection data
Connection on control side
Connection on process side
Contact assembly
Design
Implementation of connection level / plug
connector
Ratings
Ambient temperature (operational)
Number of signals
Rated control voltage
Rated current per connection
Storage temperature
Test torque
Test voltage (~eff)
Insulation coordination (EN 50 178)
Overvoltage category
Pollution severity
Connection cross-section
Flexible, max. (H07V-U)
Flexible, max. AEHK
Flexible, min. (AEHK)
Flexible, min. (H07V-U)
Solid, max. (H07V-U)
8155660000
RS SD37S UNC LPK2

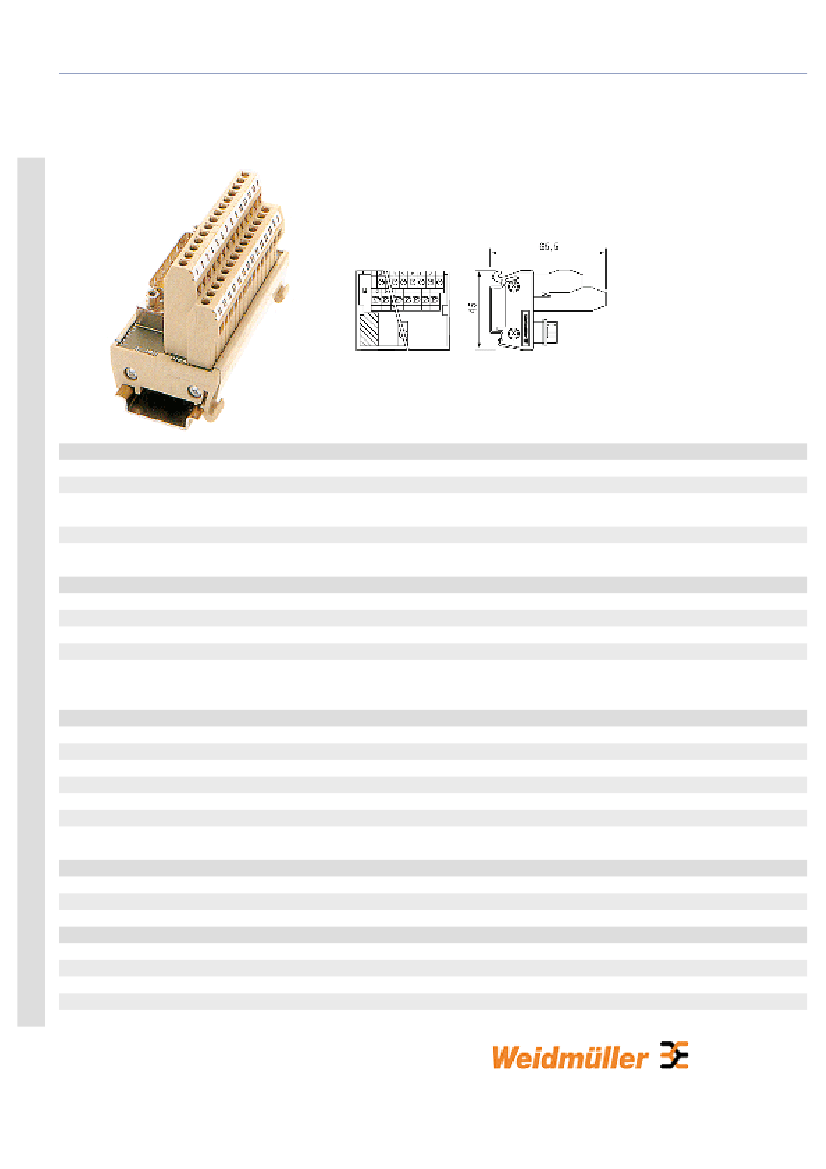

Interface unit, D-SUB, acc. to IEC 807-2, Number
of signals: 37
4008190003203
1 pc(s).
D-SUB, acc. to IEC 807-2
PCB terminal LPK 2 H
37-pole
Male connectors
1:1
0 °C...+55 °C
37
125 V AC/ 150 V DC
1.5 A
-40 °C...+70 °C
0.4 Nm
0.6 kV
III
2
1.5 mm²
1.5 mm²
0.5 mm²
0.5 mm²
2.5 mm²
-1-
Product catalogue | Functional Electronics | Interface elements | Interface element IEC 807-2 | RSSD 45 mm screw
connection/ SUB-D
Connection cross-section
Solid, min. (H07V-U)
Stripping length
Dimensions
Clamping range, max.
Clamping range, min.
Clamping range, nom.
Length
Height
Width
Approvals
Approvals institutes
Classifications
ETIM 2.0
ETIM 3.0
eClass 4.1
eClass 5.0
eClass 5.1
0.5 mm²
7 mm
2.5 mm²
0.5 mm²
1.5 mm²
45 mm
65.5 mm
116 mm
EC001419
EC001419
27-24-04-04
27-24-22-04
27-24-22-04
Similar products
Order No.
8259010000
8233350000
8155650000
8155670000
8216480000
8209730000
8155620000
8155630000
Part designation
RS SD9S UNC LPK2
RS SD15S UNC LPK2
RS SD25S UNC LPK2
RS SD50S UNC LPK2
RS SD9B UNC LPK2
RS SD15B UNC LPK2
RS SD25B UNC LPK2
RS SD37B UNC LPK2
Version
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 9
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 15
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 25
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 50
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 9
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 15
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 25
Interface unit, D-SUB, acc. to IEC 807-2, Number of signals: 37
-2-
