8537400000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8537400000

8537400000: Descriptionconn term block tension clamp; CategoryThe connector The connector; File Size72KB，2 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

8537400000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8537400000	-	-	View	Buy Now

8537400000 Overview

conn term block tension clamp

8537400000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Weidmuller
Reach Compliance Code	_compli
Factory Lead Time	10 weeks
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Housing size	2/A
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

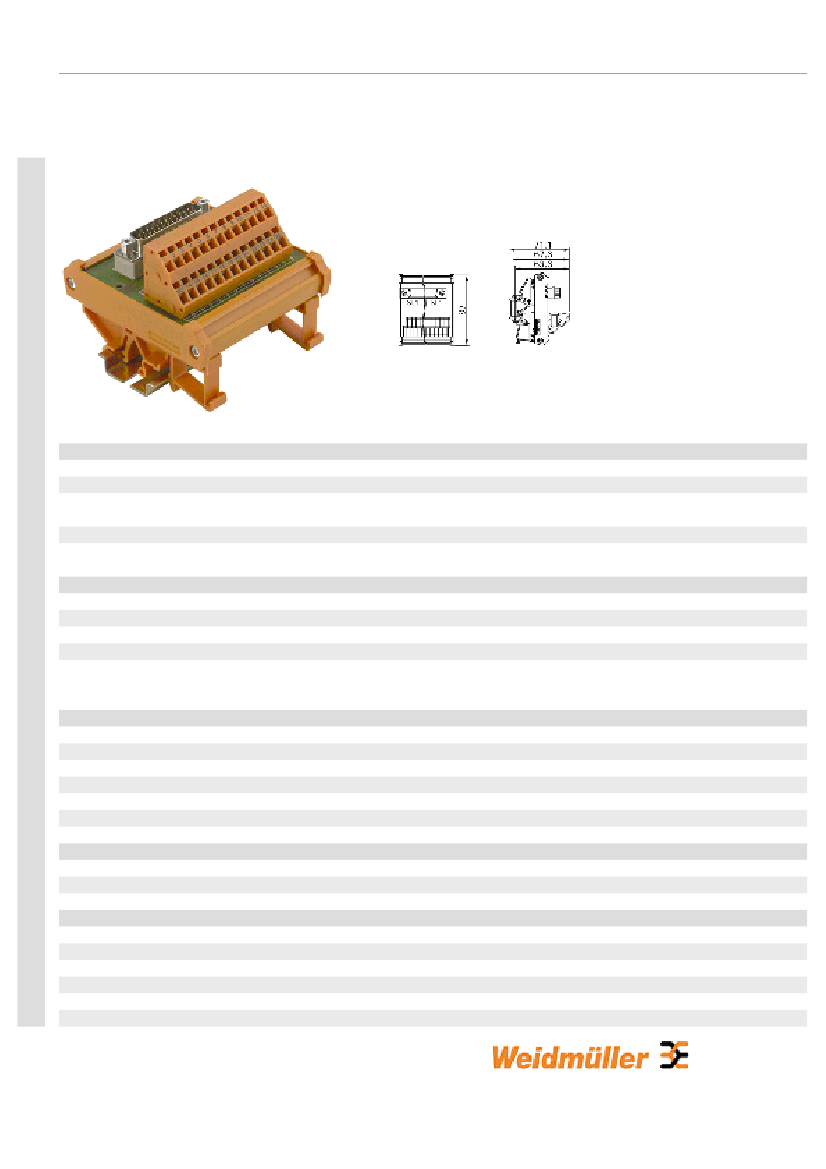

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 807-2 | RSSD tension spring

connection/ SUB-D

General ordering data

Order No.

Part designation

Version

EAN

Qty.

Connection data

Connection on control side

Connection on process side

Contact assembly

Design

Implementation of connection level / plug

connector

Ratings

Ambient temperature (operational)

Number of signals

Rated control voltage

Rated current per connection

Storage temperature

Test voltage (~eff)

Insulation coordination (EN 50 178)

Overvoltage category

Pollution severity

Connection cross-section

Flexible, max. (H07V-U)

Flexible, max. AEHK

Flexible, min. (AEHK)

Flexible, min. (H07V-U)

Solid, max. (H07V-U)

Solid, min. (H07V-U)

8537400000

RS SD15 BZ

Interface unit, D-SUB, acc. to IEC 807-2, Number

of signals: 15

4032248173082

1 pc(s).

D-SUB, acc. to IEC 807-2

PCB terminal LM2NZF

15-pole

Socket connector

1:1

0 °C...+55 °C

125 V AC/ 150 V DC

1.5 A

-40 °C...+70 °C

0.6 kV

III

1.5 mm²

0.5 mm²

2.5 mm²

0.5 mm²

-1-
