1-284392-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-284392-1

1-284392-1: Descriptionterm block rcpt 11ps side 3.81mm; CategoryThe connector; File Size147KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

1-284392-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-284392-1	-	-	View	Buy Now

1-284392-1 Overview

term block rcpt 11ps side 3.81mm

1-284392-1 Parametric

Parameter Name	Attribute value
Datasheets
284392
Standard Package	400
Category	Connectors, Interconnects
Family	Terminal Blocks - Wire to Board
Packaging	Bulk
Number of Levels	1
Positions Per Level	11
Pitch	0.150" (3.81mm)
Mating Orientati	Horizontal with Board
Curre	12A
Voltage	300V
Wire Gauge	14-30 AWG
Mounting Type	Through Hole
Wire Terminati	Screw - Rising Cage Clam
Features	Interlocking (Side)
Col	Gree
Operating Temperature	-
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Torque - Screw	0.25 Nm (2.2 Lb-In)
Screw Thread	M3

Preview

Download Datasheet

View All

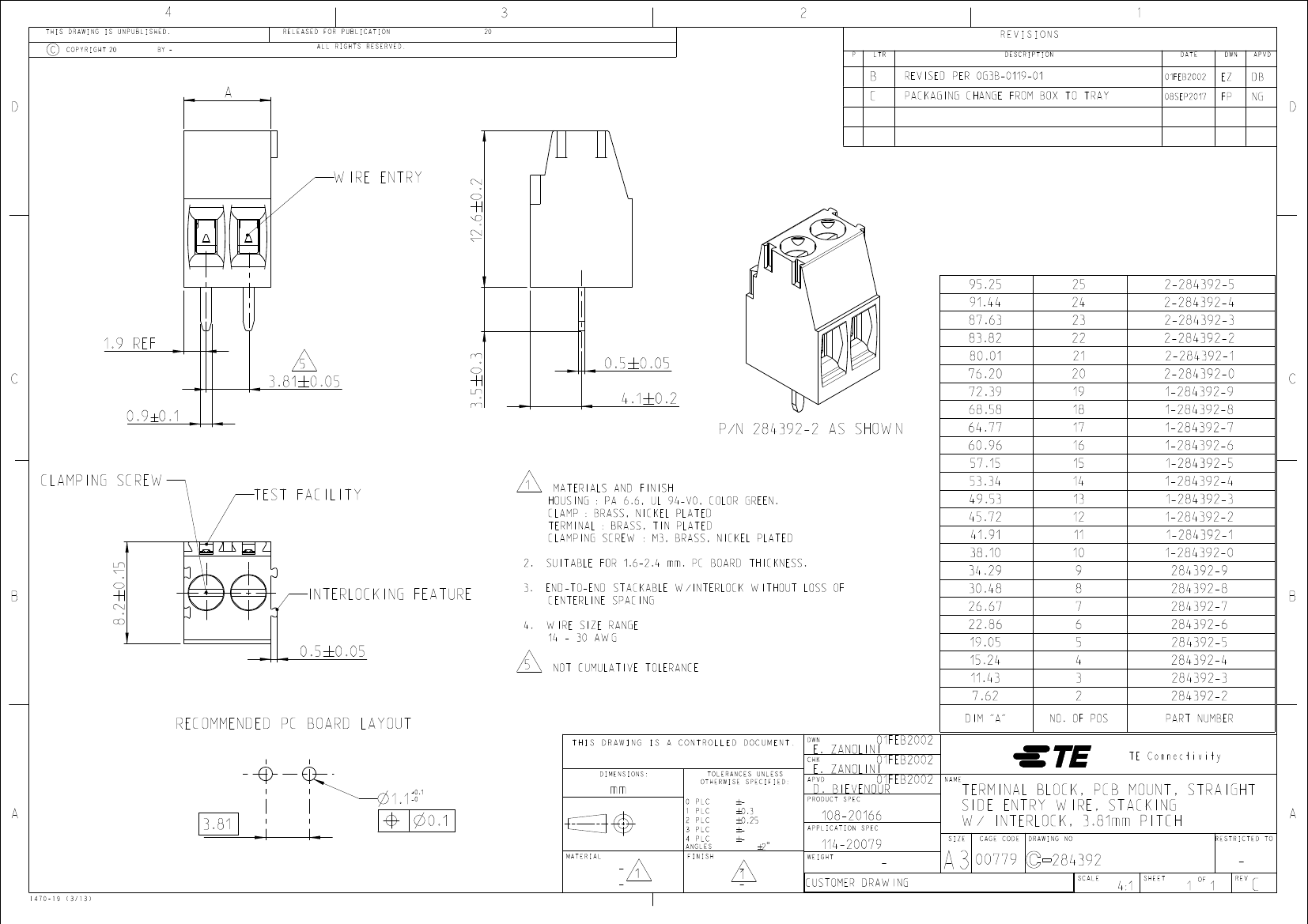

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

BY -

REVISED PER 0G3B-0119-01

PACKAGING CHANGE FROM BOX TO TRAY

01FEB2002

08SEP2017

WIRE ENTRY

12.6

1.9 REF

3.5

3.81 # 0.05

0.9 0.1

0.5

4.1

P/N 284392-2 AS SHOWN

CLAMPING SCREW

TEST FACILITY

MATERIALS AND FINISH

HOUSING : PA 6.6, UL 94-V0, COLOR GREEN.

CLAMP : BRASS, NICKEL PLATED

TERMINAL : BRASS, TIN PLATED

CLAMPING SCREW : M3, BRASS, NICKEL PLATED

SUITABLE FOR 1.6-2.4 mm. PC BOARD THICKNESS.

END-TO-END STACKABLE W/INTERLOCK WITHOUT LOSS OF

CENTERLINE SPACING

WIRE SIZE RANGE

14 - 30 AWG

NOT CUMULATIVE TOLERANCE

8.2

INTERLOCKING FEATURE

0.5

95.25

91.44

87.63

83.82

80.01

76.20

72.39

68.58

64.77

60.96

57.15

53.34

49.53

45.72

41.91

38.10

34.29

30.48

26.67

22.86

19.05

15.24

11.43

7.62

DIM "A"

NO. OF POS

2-284392-5

2-284392-4

2-284392-3

2-284392-2

2-284392-1

2-284392-0

1-284392-9

1-284392-8

1-284392-7

1-284392-6

1-284392-5

1-284392-4

1-284392-3

1-284392-2

1-284392-1

1-284392-0

284392-9

284392-8

284392-7

284392-6

284392-5

284392-4

284392-3

284392-2

PART NUMBER

TE Connectivity

RECOMMENDED PC BOARD LAYOUT

DWN

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

+0.1

-0

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

3.81

MATERIAL

ANGLES

PLC

0.3

0.25

01FEB2002

E. ZANOLINI

CHK

01FEB2002

E. ZANOLINI

APVD

01FEB2002

D. BIEVENOUR

PRODUCT SPEC

APPLICATION SPEC

NAME

108-20166

1470-19 (3/13)

FINISH

2 $

114-20079

WEIGHT

CUSTOMER DRAWING

00779

SIZE

TERMINAL BLOCK, PCB MOUNT, STRAIGHT

SIDE ENTRY WIRE, STACKING

W/ INTERLOCK, 3.81mm PITCH

CAGE CODE DRAWING NO

RESTRICTED TO

284392

SCALE

4:1

SHEET

REV
