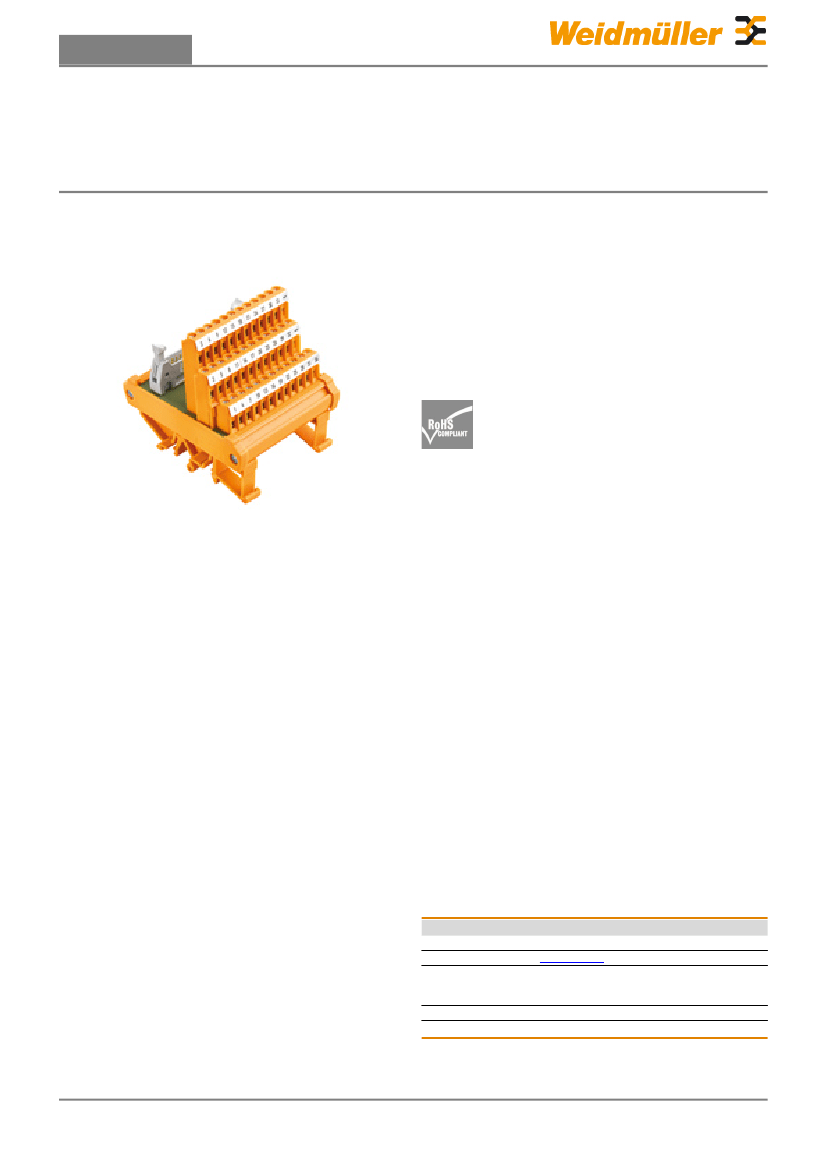

Data sheet
RSF
RS F14 LP3R 3/14
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Passive interfaces for signal transmission on a flat-cable
connector equipped with a clamping-yoke connection in
accordance with IEC 603-1 / DIN 41651.
The main features include:
• Group with 10- to 64-pole connectors
• One-to-one electrical connection between controller
and field connections.
• Very compact triple-level modules can be attached to
conventional TS35 or TS32 mounting rails.
• Longer attachment hooks
• Pin for the earth connection.
General ordering data
Type
Order No.
Version
GTIN (EAN)
Qty.
RS F14 LP3R 3/14
8012860000
Interface, RSF, Connector according
IEC60603-13/DIN41651, 14-pole, Screw
connection
4008190147174
1 pc(s).
Creation date December 18, 2013 6:47:12 PM CET
Catalogue status / We reserve the right to make technical changes.
1
Data sheet
RSF
RS F14 LP3R 3/14
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Technical data
45 mm
76 mm
Width
Net weight
Dimensions and weights
Length
Height
87 mm
114 g
Temperatures
Operating temperature
0...+55°C
Storage temperature
-40...+70 °C
Connection Data
Connection on control side
Connection (field side)
Protective earth connection
Connector according
IEC60603-13/DIN41651
LP3R 5.08mm
Flat-blade contact
Number of poles (control side)
Earthing
14-pole
Yes
Rating data
Rated voltage
60 V AC / 75 V DC
Rated current per connection
1A
Insulation coordination (EN50178)
According to
Surge voltage category
Pulse voltage test (1,2/50μs)
DIN EN 50178
II
0.8 kV
Rated insulation voltage
Pollution severity level
100 V
2
Connection field
Type of connection
Clamping range, max.
Solid, max. H05(07) V-U
Flexible, max. H05(07) V-K
Flexible with sleeve, min.
Min. wire cross-section, AWG [field]
Tightening torque, min.
Stripping length
Screw connection
6 mm²
6 mm²
4 mm²
0.5 mm²
AWG 26
0.5 Nm
6 mm
Clamping range, min.
Solid, min. H05(07) V-U
Flexible, min. H05(07) V-K
Flexible with sleeve, max.
Sleeve with plastic collar, max.
Max. wire cross-section, AWG [field]
Tightening torque, max.
0.13 mm²
0.5 mm²
0.5 mm²
2.5 mm²
2.5 mm²
AWG 12
0.6 Nm
Classifications
ETIM 3.0
eClass 5.1
eClass 7.1
EC001419
27-24-22-04
27-24-22-04
UNSPSC
eClass 6.2
30-21-18-01
27-24-22-04
Product information
Descriptive text accessories
Refer to the "Universal cables PAC-UNIV" section in this chapter
Approvals
Approvals
ROHS
Conform
Creation date December 18, 2013 6:47:12 PM CET
Catalogue status / We reserve the right to make technical changes.
2
Data sheet
RSF
RS F14 LP3R 3/14
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com
Drawings
Creation date December 18, 2013 6:47:12 PM CET
Catalogue status / We reserve the right to make technical changes.
