Part Number

Search

8209730000

Description
interface cbl dsub female W/scrw
CategoryThe connector    The connector
File Size73KB,2 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Download Datasheet Parametric View All

8209730000 Online Shopping

Suppliers Part Number Price MOQ In stock
8209730000 - - View Buy Now

8209730000 Overview

interface cbl dsub female W/scrw

8209730000 Parametric

Parameter NameAttribute value
MakerWeidmuller
Reach Compliance Codecompli
Factory Lead Time10 weeks
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Housing size2/A
Termination typeSOLDER
Total number of contacts15

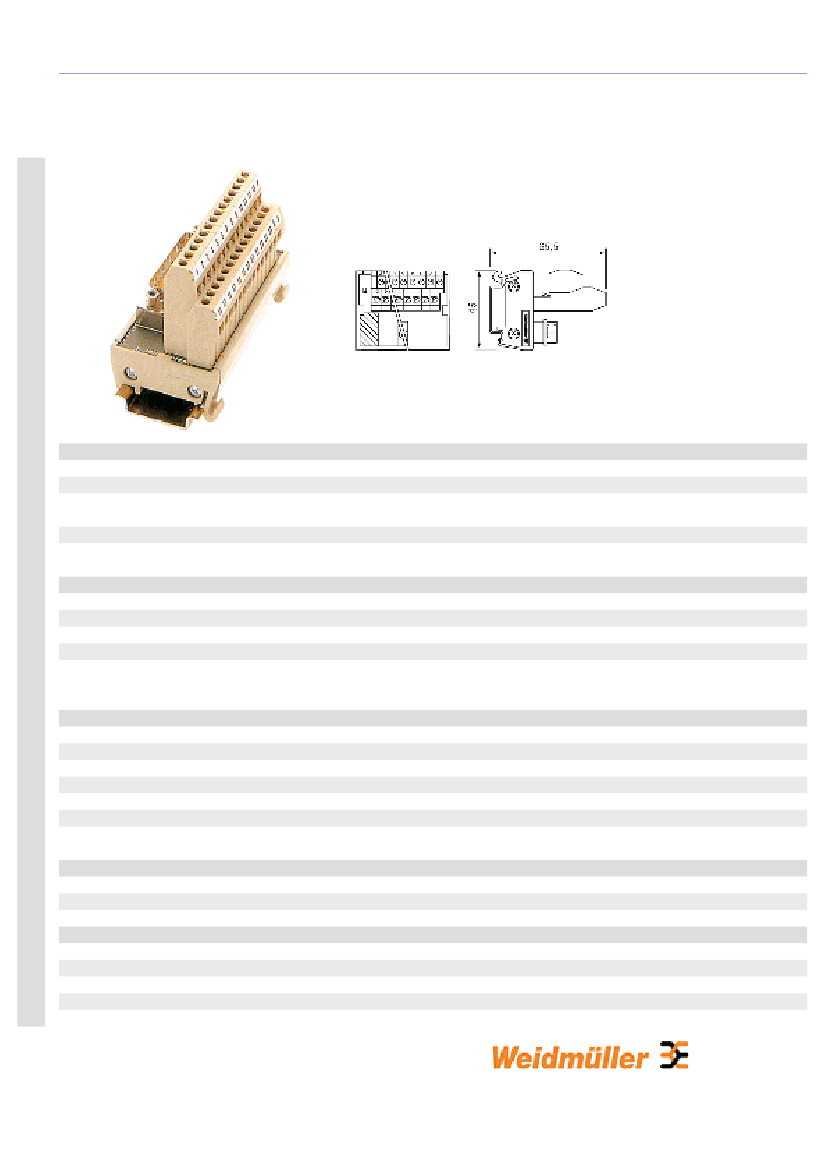

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 807-2 | RSSD 45 mm screw
connection/ SUB-D
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Connection data
Connection on control side
Connection on process side
Contact assembly
Design
Implementation of connection level / plug
connector
Ratings
Ambient temperature (operational)
Number of signals
Rated control voltage
Rated current per connection
Storage temperature
Test torque
Test voltage (~eff)
Insulation coordination (EN 50 178)
Overvoltage category
Pollution severity
Connection cross-section
Flexible, max. (H07V-U)
Flexible, max. AEHK
Flexible, min. (AEHK)
Flexible, min. (H07V-U)
Solid, max. (H07V-U)
8209730000
RS SD15B UNC LPK2
Interface unit, D-SUB, acc. to IEC 807-2, Number
of signals: 15
4008190296087
1 pc(s).
D-SUB, acc. to IEC 807-2
PCB terminal LPK 2 H
15-pole
Socket connector
1:1
0 °C...+55 °C
15
125 V AC/ 150 V DC
1.5 A
-40 °C...+70 °C
0.4 Nm
0.6 kV
III
2
1.5 mm²
1.5 mm²
0.5 mm²
0.5 mm²
2.5 mm²
-1-
