8537370000

Description
conn term block tension clamp
CategoryThe connector    The connector
File Size72KB,2 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Download Datasheet Parametric View All

8537370000 Online Shopping

Suppliers Part Number Price MOQ In stock
8537370000 - - View Buy Now

8537370000 Overview

conn term block tension clamp

8537370000 Parametric

Parameter NameAttribute value
MakerWeidmuller
Reach Compliance Codecompli
Factory Lead Time10 weeks
Body/casing typePLUG
Connector typeD SUBMINIATURE CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
DIN complianceNO
empty shellNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation typeBOARD AND PANEL
OptionsGENERAL PURPOSE
Housing size3/B
Termination typeSOLDER
Total number of contacts25

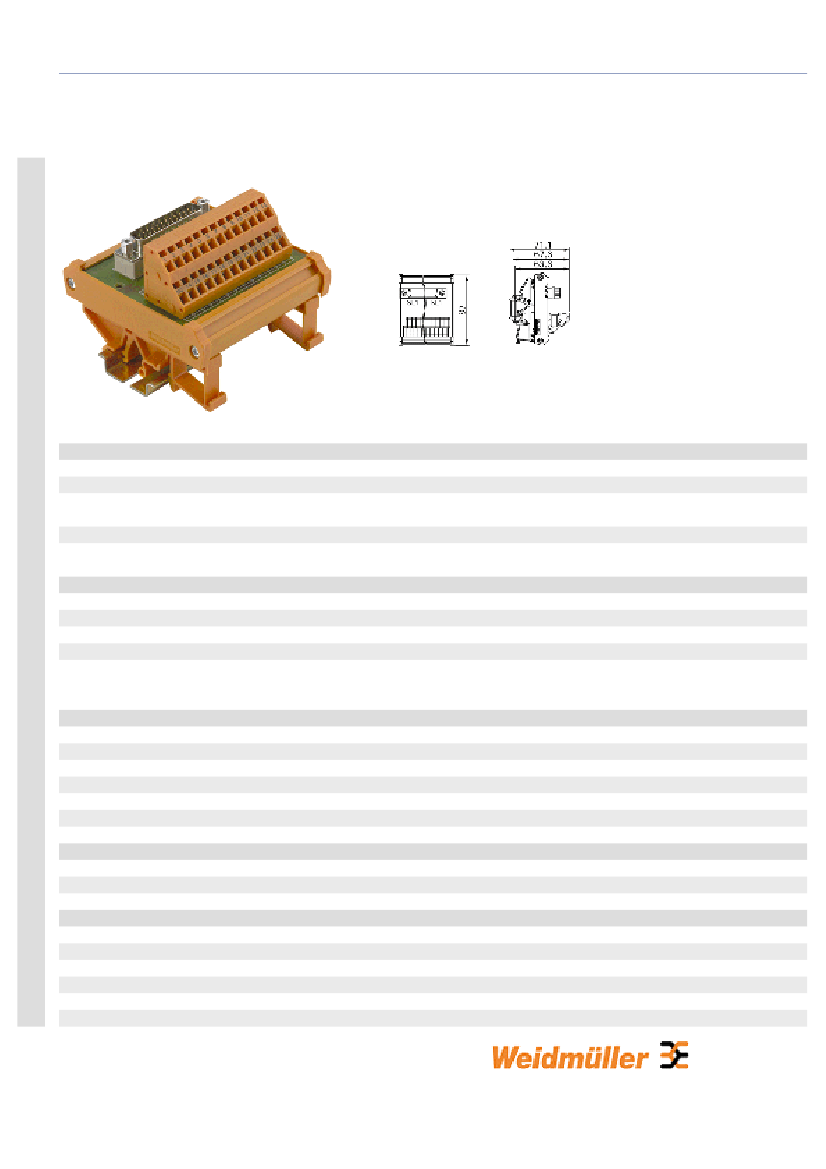

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 807-2 | RSSD tension spring
connection/ SUB-D
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Connection data
Connection on control side
Connection on process side
Contact assembly
Design
Implementation of connection level / plug
connector
Ratings
Ambient temperature (operational)
Number of signals
Rated control voltage
Rated current per connection
Storage temperature
Test voltage (~eff)
Insulation coordination (EN 50 178)
Overvoltage category
Pollution severity
Connection cross-section
Flexible, max. (H07V-U)
Flexible, max. AEHK
Flexible, min. (AEHK)
Flexible, min. (H07V-U)
Solid, max. (H07V-U)
Solid, min. (H07V-U)
8537370000
RS SD25 SZ
Interface unit, D-SUB, acc. to IEC 807-2, Number
of signals: 25
4032248173051
1 pc(s).
D-SUB, acc. to IEC 807-2
PCB terminal LM2NZF
25-pole
Male connectors
1:1
0 °C...+55 °C
25
125 V AC/ 150 V DC
1.5 A
-40 °C...+70 °C
0.6 kV
III
2
1.5 mm²
1.5 mm²
0.5 mm²
0.5 mm²
2.5 mm²
0.5 mm²
-1-
