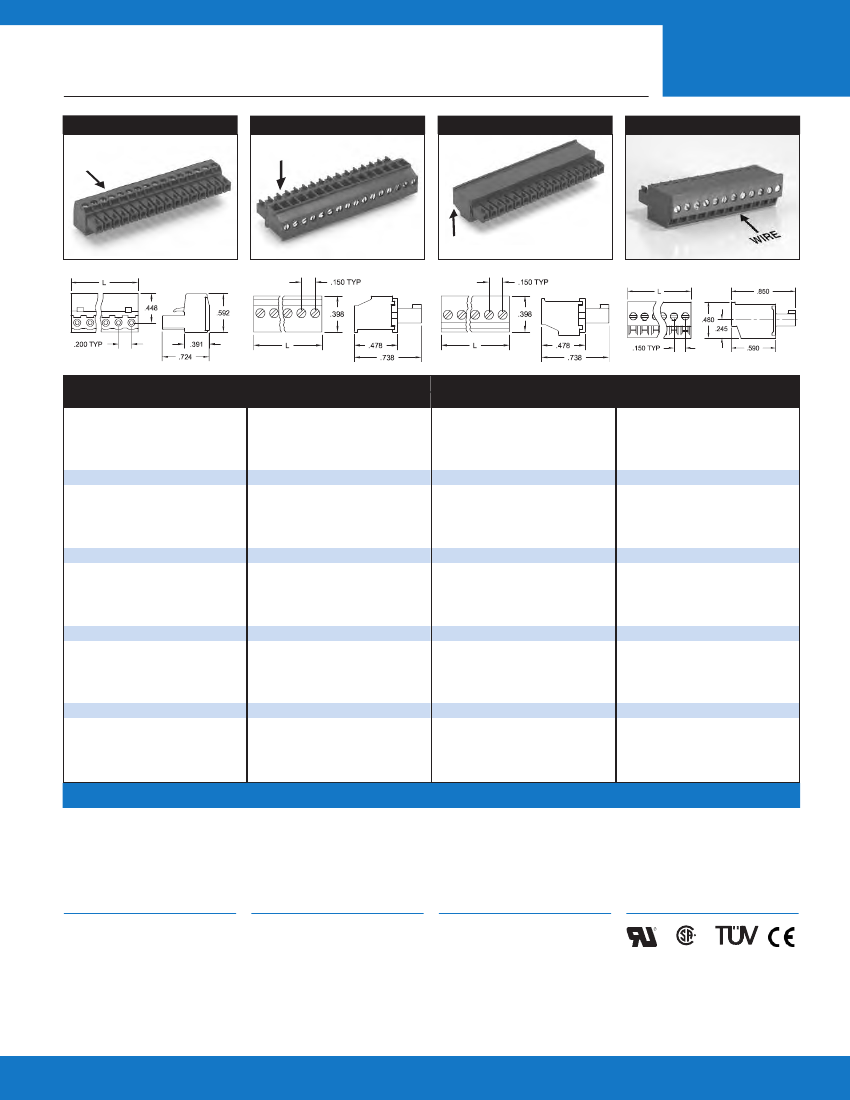

ELVP/ELVT/ELVF MINI-PLUGS
Right Angle/Straight/Front
ELVP Right Angle
E
WIR
.150"
( 3.81mm )
ELVT Bottom Entry
ELVF Front Entry
ELVT Top Entry
WIRE
WIR
E
Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.)
2
3
4
5
6
7
8
9
ELVP02100
ELVP03100
ELVP04100
ELVP05100
ELVP06100
ELVP07100
ELVP08100
ELVP09100
ELVP021G0
ELVP031G0
ELVP041G0
ELVP051G0
ELVP061G0
.300
.450
.600
.750
.900
2
3
4
5
6
7
8
9
ELVT02500
ELVT03500
ELVT04500
ELVT05500
ELVT06500
ELVT07500
ELVT08500
ELVT09500
ELVT025G0
ELVT035G0
ELVT045G0
ELVT055G0
ELVT065G0
.300
.450
.600
.750
.900
2
3
4
5
6
7
8
9
ELVT02600
ELVT03600
ELVT04600
ELVT05600
ELVT06600
ELVT07600
ELVT08600
ELVT09600
ELVT026G0
ELVT036G0
ELVT046G0
ELVT056G0
ELVT066G0
.300
.450
.600
.750
.900
2
3
4
5
6
7
8
9
ELVF02400
ELVF03400
ELVF04400
ELVF05400
ELVF06400
ELVF07400
ELVF08400
ELVF09400
ELVF024G0
ELVF034G0
ELVF044G0
ELVF054G0
ELVF064G0
.300
.450
.600
.750
.900
ELVP071G0 1.050
ELVP081G0 1.200
ELVP091G0 1.350
ELVP101G0 1.500
ELVP111G0 1.650
ELVP121G0 1.800
ELVP131G0 1.950
ELVP141G0 2.100
ELVP151G0 2.250
ELVP161G0 2.400
ELVP171G0 2.550
ELVP181G0 2.700
ELVP191G0 2.850
ELVP201G0 3.000
ELVT075G0 1.050
ELVT085G0 1.200
ELVT095G0 1.350
ELVT105G0 1.500
ELVT115G0 1.650
ELVT125G0 1.800
ELVT135G0 1.950
ELVT145G0 2.100
ELVT155G0 2.250
ELVT165G0 2.400
ELVT175G0 2.550
ELVT185G0 2.700
ELVT195G0 2.850
ELVT205G0 3.000
ELVT076G0 1.050
ELVT086G0 1.200
ELVT096G0 1.350
ELVT106G0 1.500
ELVT116G0 1.650
ELVT126G0 1.800
ELVT136G0 1.950
ELVT146G0 2.100
ELVT156G0 2.250
ELVT166G0 2.400
ELVT176G0 2.550
ELVT186G0 2.700
ELVT196G0 2.850
ELVT206G0 3.000
ELVF074G0 1.050
ELVF084G0 1.200
ELVF094G0 1.350
ELVF104G0 1.500
ELVF114G0 1.650
ELVF124G0 1.800
ELVF134G0 1.950
ELVF144G0 2.100
ELVF154G0 2.250
ELVF164G0 2.400
ELVF174G0 2.550
ELVF184G0 2.700
ELVF194G0 2.850
ELVF204G0 3.000
10 ELVP10100
11 ELVP11100
12 ELVP12100
13 ELVP13100
14 ELVP14100
15 ELVP15100
16 ELVP16100
17 ELVP17100
18 ELVP18100
19 ELVP19100
20 ELVP20100
10 ELVT10500
11 ELVT11500
12 ELVT12500
13 ELVT13500
14 ELVT14500
15 ELVT15500
16 ELVT16500
17 ELVT17500
18 ELVT18500
19 ELVT19500
20 ELVT20500
10 ELVT10600
11 ELVT11600
12 ELVT12600
13 ELVT13600
14 ELVT14600
15 ELVT15600
16 ELVT16600
17 ELVT17600
18 ELVT18600
19 ELVT19600
20 ELVT20600
10 ELVF10400
11 ELVF11400
12 ELVF12400
13 ELVF13400
14 ELVF14400
15 ELVF15400
16 ELVF16400
17 ELVF17400
18 ELVF18400
19 ELVF19400
20 ELVF20400
See page 13 for gold plating and marking options
SPECIFICA TIONS:
MATERIALS:
WIRE INST ALLATION:
APPROVALS:
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
3
Megohms
Dielectric Withstanding:
<1600V
Wire Pullout Force:
Per UL 486E, Section 14
Housing:
Polyamide, UL 94V-0,
black or green
Contact:
Copper alloy, optional finish
Clamp Screw:
Copper alloy, nickel finish
Wire Clamp:
Copper alloy, nickel finish
Wire Range:
#16-28 AWG
Wire Strip Length:
0.25" (.375" ELVF)
Recommended Tightening Torque:
2.2 lb-in. (0.25N-m)
Consult factory for specific product recognitions
Amphenol Pcd
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
19

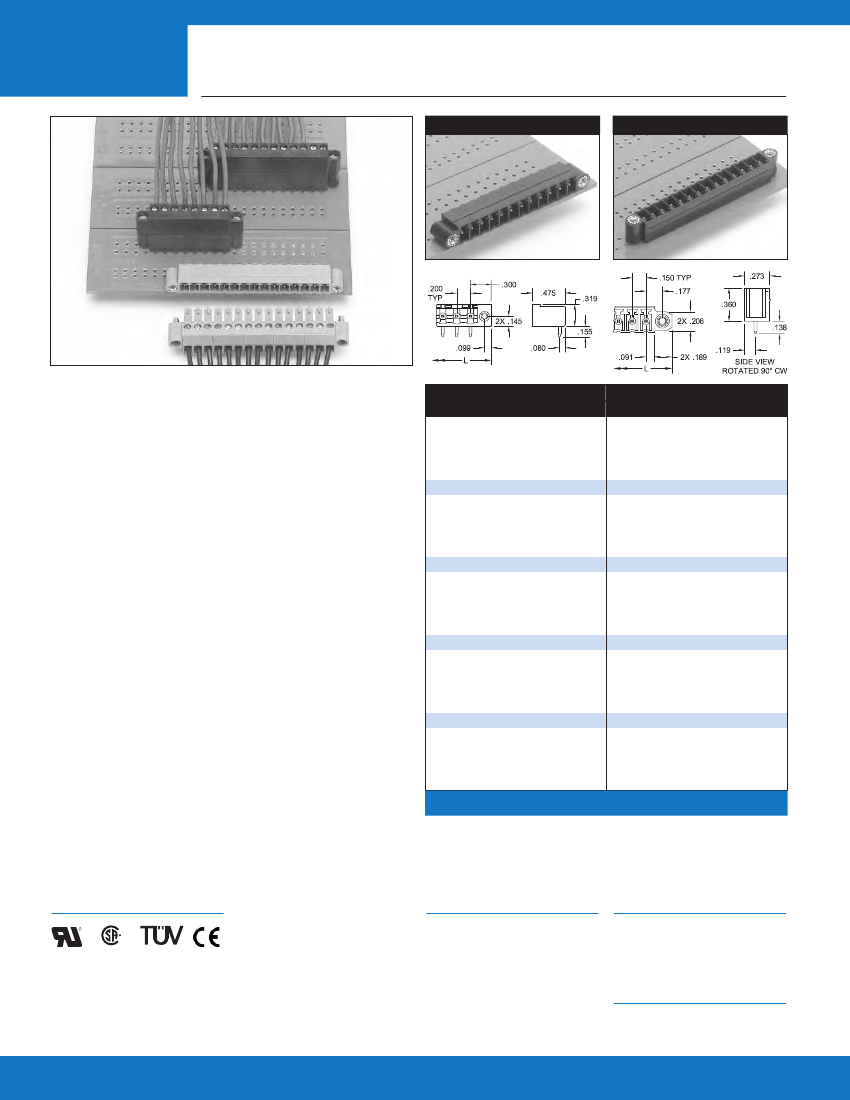

.150"
( 3.81mm )
ELVH MINI-HEADERS with LOCKING EARS
Vertical and Horizontal
ELVH Horizontal—Eared
ELVH Vertical—Eared
ELV CONNECTORS
WITH LOCKING EARS
These two pages present
the locking ear versions of
the .150" spacing (ELV)
plugs and headers depicted
on pages 16 and 17.
The integrally molded lock-
ing ears are available with
ELVP and ELVT plugs, and
ELVH series headers. Plug
ears hold a captive floating,
slot-head locking screw that
engages a threaded inser t
on the header ear. The
mounting screw is tightened
after plug and header are
firmly mated, securing the
connection. All plugs and
headers indicated on these
pages are intermateable
and interchangeable with
industry standard .150"
plugs and headers.
HEADERS
ELVH headers are molded
of ultra-high-temperature
polyamide, which will with-
stand temperatures to
260°C during the PCB pro-
duction process, and are
compatible with SMT reflow
soldering. The headers are
available in vertical and
horizontal versions. A
shrouded design and key-
ing capability prevent
mismating.
Catalog #
Pos
Black
Catalog #
Green
Catalog #
L
Black
(In.) Pos
Catalog #
Green
L
(In.)
2 ELVH02100E ELVH021G0E
3 ELVH03100E ELVH031G0E
.710
.860
2 ELVH02500E ELVH025G0E
3 ELVH03500E ELVH035G0E
.710
.860
4 ELVH04100E ELVH041G0E 1.010
5 ELVH05100E ELVH051G0E 1.160
6 ELVH06100E ELVH061G0E 1.310
7 ELVH07100E ELVH071G0E 1.460
8 ELVH08100E ELVH081G0E 1.610
9 ELVH09100E ELVH091G0E 1.760
4 ELVH04500E ELVH045G0E 1.010
5 ELVH05500E ELVH055G0E 1.160
6 ELVH06500E ELVH065G0E 1.310
7 ELVH07500E ELVH075G0E 1.460
8 ELVH08500E ELVH085G0E 1.610
9 ELVH09500E ELVH095G0E 1.760
10 ELVH10100E ELVH101G0E 1.910 10 ELVH10500E ELVH105G0E 1.910
11 ELVH11100E ELVH111G0E 2.060 11 ELVH11500E ELVH115G0E 2.060
12 ELVH12100E ELVH121G0E 2.210 12 ELVH12500E ELVH125G0E 2.210
13 ELVH13100E ELVH131G0E 2.360 13 ELVH13500E ELVH135G0E 2.360
14 ELVH14100E ELVH141G0E 2.510 14 ELVH14500E ELVH145G0E 2.510
15 ELVH15100E ELVH151G0E 2.660 15 ELVH15500E ELVH155G0E 2.660
16 ELVH16100E ELVH161G0E 2.810 16 ELVH16500E ELVH165G0E 2.810
17 ELVH17100E ELVH171G0E 2.960 17 ELVH17500E ELVH175G0E 2.960
18 ELVH18100E ELVH181G0E 3.110 18 ELVH18500E ELVH185G0E 3.110
19 ELVH19100E ELVH191G0E 3.260 19 ELVH19500E ELVH195G0E 3.260
20 ELVH20100E ELVH201G0E 3.410 20 ELVH20500E ELVH205G0E 3.410
See page 13 for gold plating and marking options
PLUGS
All ELV pluggable terminal
blocks incorporate moving
vise clamp wire termination.
ELVP blocks feature wire
entry parallel to the contact.
ELVT blocks offer wire entr y
perpendicular to the con-
tact—top or bottom entr y is
available.
VARIATIONS
See pages 12 and 13 for
additional information on
plug and header variations
and for ordering specifics.
APPROVALS:
ACCESSORIES
Polarizing keys and mark-
ing labels. See page 13.
SPECIFICA TIONS:
MATERIALS:
Consult factory for specific product recognitions
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
3
Megohms
Dielectric Withstanding:
<1600V
Housing:
Polyamide, UL 94V-0,
black or green
Contact:
Copper alloy, optional finish
Ear Insert, M2.5:
Brass, nickel finish
HEADER INST ALLATION:
Amphenol Pcd
20
Hole Diameter:
.047" min.
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com

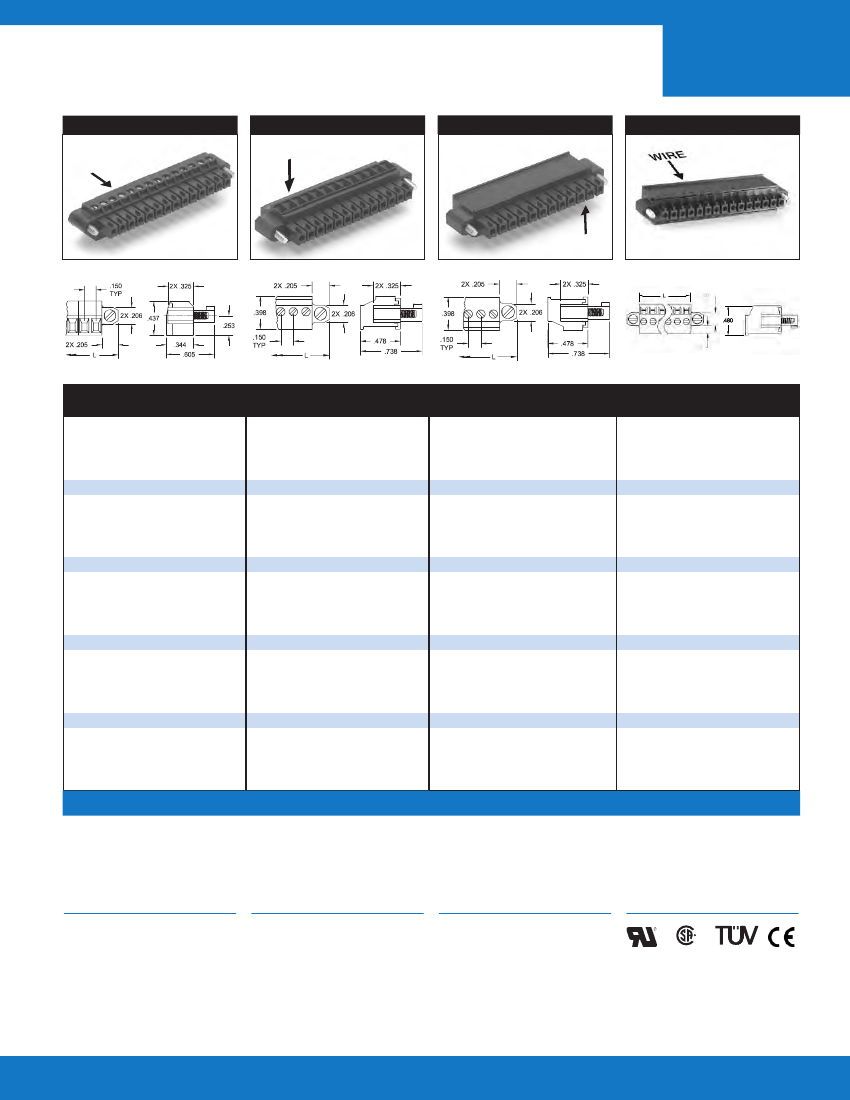

ELVP/ELVT/ELVF MINI-PLUGS with
.150"
( 3.81mm )
LOCKING EARS Right Angle/Straight/Front
ELVP Right Angle—Eared
IRE
ELVT Top Entry—Eared
ELVT Bottom Entry—Eared
ELVF Front Entry—Eared
WIRE
W
WIR
E
Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.)
Pos
Catalog #
Black
Catalog #
Green
L
(In.)
2 ELVP02100E ELVP021G0E
3 ELVP03100E ELVP031G0E
.710
.860
2 ELVT02500E ELVT025G0E
3 ELVT03500E ELVT035G0E
.710
.860
2 ELVT02600E ELVT026G0E
3 ELVT03600E ELVT036G0E
.710
.860
2 ELVF02400E ELVF024G0E
3 ELVF03400E ELVF034G0E
.710
.860
4 ELVP04100E ELVP041G0E 1.010
5 ELVP05100E ELVP051G0E 1.160
6 ELVP06100E ELVP061G0E 1.310
7 ELVP07100E ELVP071G0E 1.460
8 ELVP08100E ELVP081G0E 1.610
9 ELVP09100E ELVP091G0E 1.760
10 ELVP10100E ELVP101G0E 1.910
11 ELVP11100E ELVP111G0E 2.060
12 ELVP12100E ELVP121G0E 2.210
13 ELVP13100E ELVP131G0E 2.360
14 ELVP14100E ELVP141G0E 2.510
15 ELVP15100E ELVP151G0E 2.660
16 ELVP16100E ELVP161G0E 2.810
17 ELVP17100E ELVP171G0E 2.960
18 ELVP18100E ELVP181G0E 3.110
19 ELVP19100E ELVP191G0E 3.260
20 ELVP20100E ELVP201G0E 3.410
4 ELVT04500E ELVT045G0E 1.010
5 ELVT05500E ELVT055G0E 1.160
6 ELVT06500E ELVT065G0E 1.310
7 ELVT07500E ELVT075G0E 1.460
8 ELVT08500E ELVT085G0E 1.610
9 ELVT09500E ELVT095G0E 1.760
10 ELVT10500E ELVT105G0E 1.910
11 ELVT11500E ELVT115G0E 2.060
12 ELVT12500E ELVT125G0E 2.210
13 ELVT13500E ELVT135G0E 2.360
14 ELVT14500E ELVT145G0E 2.510
15 ELVT15500E ELVT155G0E 2.660
16 ELVT16500E ELVT165G0E 2.810
17 ELVT17500E ELVT175G0E 2.960
18 ELVT18500E ELVT185G0E 3.110
19 ELVT19500E ELVT195G0E 3.260
20 ELVT20500E ELVT205G0E 3.410
4 ELVT04600E ELVT046G0E 1.010
5 ELVT05600E ELVT056G0E 1.160
6 ELVT06600E ELVT066G0E 1.310
7 ELVT07600E ELVT076G0E 1.460
8 ELVT08600E ELVT086G0E 1.610
9 ELVT09600E ELVT096G0E 1.760
10 ELVT10600E ELVT106G0E 1.910
11 ELVT11600E ELVT116G0E 2.060
12 ELVT12600E ELVT126G0E 2.210
13 ELVT13600E ELVT136G0E 2.360
14 ELVT14600E ELVT146G0E 2.510
15 ELVT15600E ELVT156G0E 2.660
16 ELVT16600E ELVT166G0E 2.810
17 ELVT17600E ELVT176G0E 2.960
18 ELVT18600E ELVT186G0E 3.110
19 ELVT19600E ELVT196G0E 3.260
20 ELVT20600E ELVT206G0E 3.410
4 ELVF04400E ELVF044G0E 1.010
5 ELVF05400E ELVF054G0E 1.160
6 ELVF06400E ELVF064G0E 1.310
7 ELVF07400E ELVF074G0E 1.460
8 ELVF08400E ELVF084G0E 1.610
9 ELVF09400E ELVF094G0E 1.760
10 ELVF10400E ELVF104G0E 1.910
11 ELVF11400E ELVF114G0E 2.060
12 ELVF12400E ELVF124G0E 2.210
13 ELVF13400E ELVF134G0E 2.360
14 ELVF14400E ELVF144G0E 2.510
15 ELVF15400E ELVF154G0E 2.660
16 ELVF16400E ELVF164G0E 2.810
17 ELVF17400E ELVF174G0E 2.960
18 ELVF18400E ELVF184G0E 3.110
19 ELVF19400E ELVF194G0E 3.260
20 ELVF20400E ELVF204G0E 3.410
See page 13 for gold plating and marking option suffixes
SPECIFICA TIONS:
MATERIALS:
WIRE INST ALLATION:
APPROVALS:
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
3
Megohms
Dielectric Withstanding:
<1600V
Wire Pullout Force:
Per UL 486E, Section 14
Housing:
Polyamide, UL 94V-0,
black or green
Contact:
Copper alloy, optional finish
Clamp Screw:
Copper alloy, nickel finish
Wire Clamp:
Copper alloy, nickel finish
Ear Screw, M2.5:
Steel, nickel finish
Wire Range:
#16-28 AWG
Wire Strip Length:
0.25"
Recommended Tightening Torque:
2.2 lb-in. (0.25N-m)
Consult factory for specific product recognitions
Amphenol Pcd
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
21

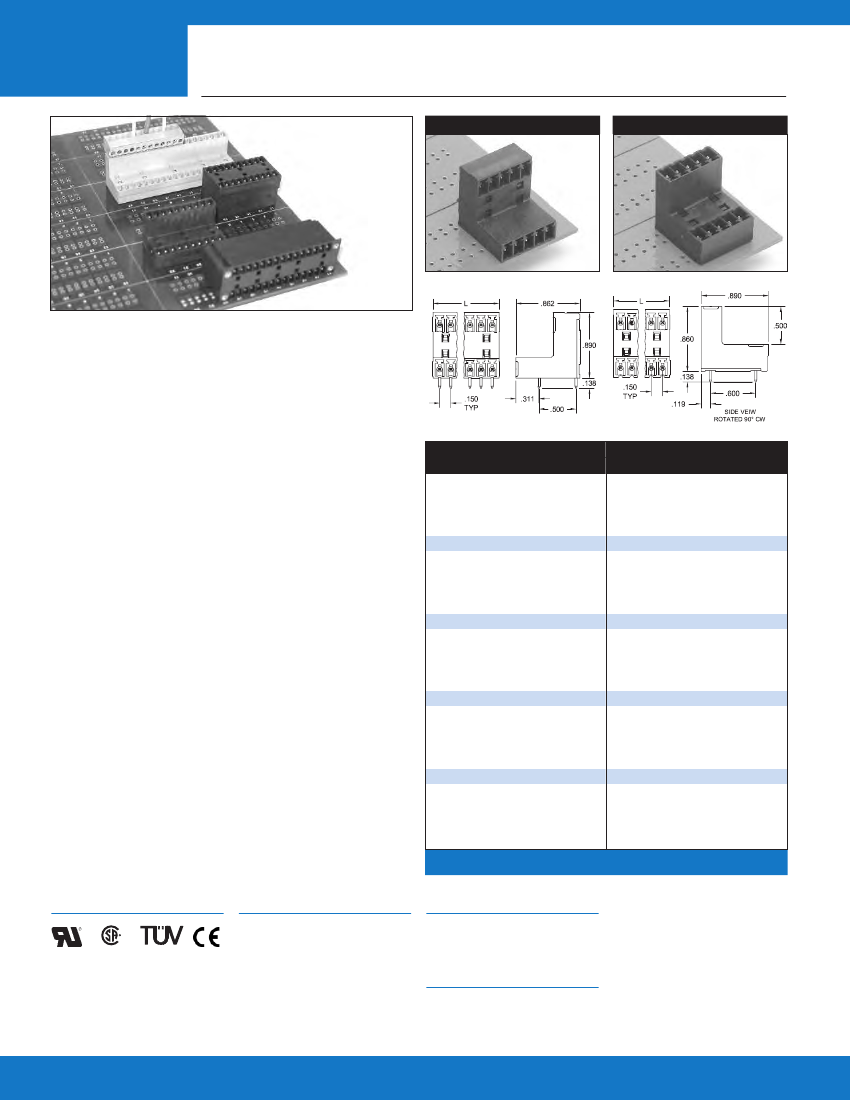

.150"
( 3.81mm )
ELVD 2-TIER STEPPED HEADERS
Vertical and Horizontal

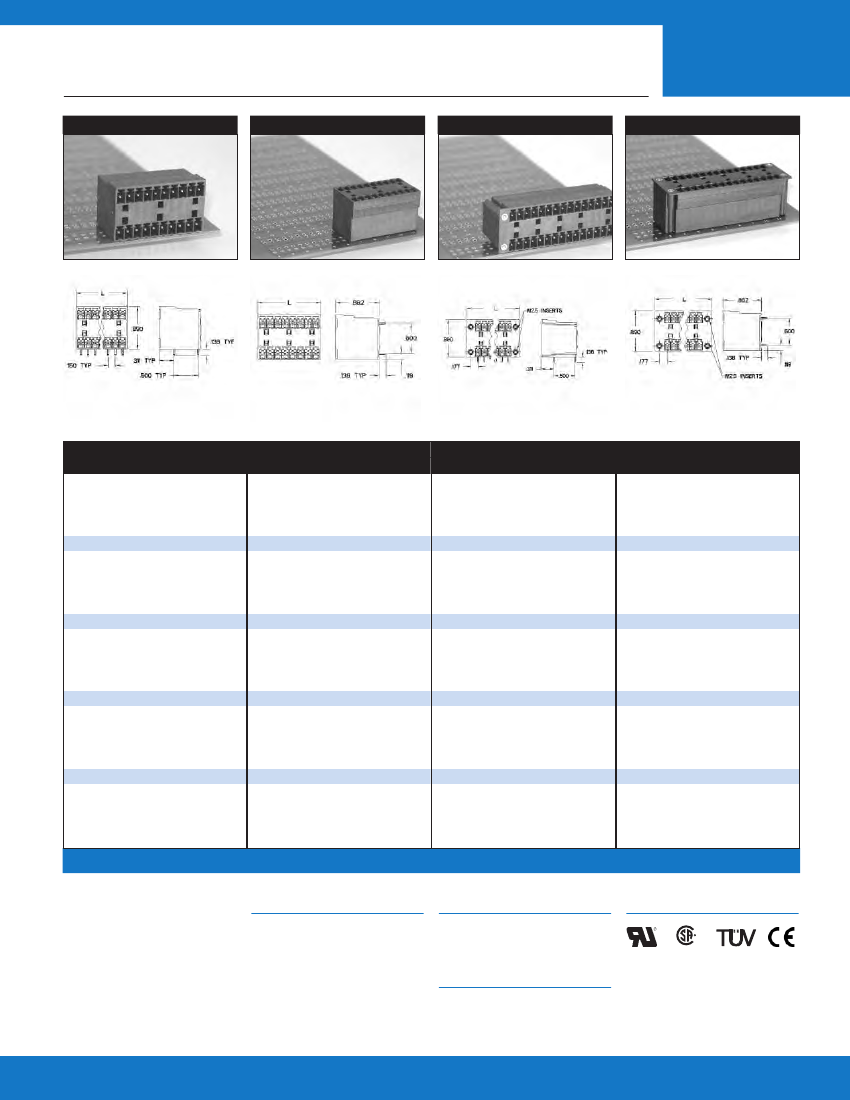

ELVD Horizontal
ELVD Vertical
2-TIER HEADERS
High-density ELVD and ELVA
2-tier headers accommo-
date two PCD ELV or SCVF
series plugs in a ver tical or
horizontal double row con-
figuration.
In-line contact rows and
walls provide a compact,
rectangular mating face for
panel cut-outs and equip-
ment I/O access. Plugs may
be installed side-by-side
without losing a contact
position. Each header row
ranges from 2 to 20 poles,
providing as many as 40
total circuits. The universal
plug interface accepts
equivalent competitive
plugs, as well as Amphenol
Pcd.
SMT Compatibility
The ultra-high-temperature
ELVD and ELVA withstand
260°C for three minutes,
which allows users to
reduce PCB assembly costs
by eliminating the need for
separate soldering opera-
tions for through-hole
terminal blocks in SMT
boards.
APPROVALS:
ELVD IN-LINE
STEPPED HEADER
ELVD 2-tier headers accept
two rows of plugs in an in-
line configuration, with the
upper row stepped back
from the lower for ease of
access and wiring.
Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.)
ELVA IN-LINE
STACKED HEADER
ELVA 2-tier in-line headers
will accept two plugs in a
vertical or horizontal config-
uration similar to the ELVD,
except that the top and bot-
tom contact rows are
stacked directly above each
other in the same ver tical
plane. Combined with in-
line row configuration and
end walls, this makes the
ELVA ideally suited for
equipment I/O applica-
tions.
4
6
8
ELVD04100
ELVD06100
ELVD08100
ELVD041G0
ELVD061G0
ELVD081G0
ELVD101G0
ELVD121G0
.332
.482
.632
4
6
8
ELVD04500
ELVD06500
ELVD08500
ELVD045G0 0.332
ELVD065G0 0.482
ELVD085G0 0.632
ELVD105G0 0.782
ELVD125G0 0.932
ELVD145G0 1.082
ELVD165G0 1.232
ELVD185G0 1.382
ELVD205G0 1.532
ELVD225G0 1.682
ELVD245G0 1.832
ELVD265G0 1.982
ELVD285G0 2.132
ELVD305G0 2.282
ELVD325G0 2.432
ELVD345G0 2.582
ELVD365G0 2.732
ELVD385G0 2.882
ELVD405G0 3.032
10 ELVD10100
12 ELVD12100
14 ELVD14100
16 ELVD16100
18 ELVD18100
20 ELVD20100
22 ELVD22100
24 ELVD24100
26 ELVD26100
28 ELVD28100
30 ELVD30100
32 ELVD32100
34 ELVD34100
36 ELVD36100
38 ELVD38100
40 ELVD40100
.782 10 ELVD10500
.932 12 ELVD12500
ELVD141G0 1.082 14 ELVD14500
ELVD161G0 1.232 16 ELVD16500
ELVD181G0 1.382 18 ELVD18500
ELVD201G0 1.532 20 ELVD20500
ELVD221G0 1.682 22 ELVD22500
ELVD241G0 1.832 24 ELVD24500
ELVD261G0 1.982 26 ELVD26500
ELVD281G0 2.132 28 ELVD28500
ELVD301G0 2.282 30 ELVD30500
ELVD321G0 2.432 32 ELVD32500
ELVD341G0 2.582 34 ELVD34500
ELVD361G0 2.732 36 ELVD36500
ELVD381G0 2.882 38 ELVD38500
ELVD401G0 3.032 40 ELVD40500
See page 13 for gold plating and marking options
SPECIFICA TIONS:
MATERIALS:
Consult factory for specific product recognitions
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
3
Megohms
Dielectric Withstanding:
<1600V
Housing:
Polyamide, UL 94V-0, black or
green
Contact:
Copper alloy, optional finish
HEADER INST ALLATION:
Hole Diameter:
.047"
Amphenol Pcd
22
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
ELVA 2-TIER STACKED HEADERS
Vertical and Horizontal
ELVA Horizontal
ELVA Vertical
ELVA Horizontal—Eared
.150"
( 3.81mm )
ELVA Vertical—Eared
Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.) Pos
Catalog #
Black
Catalog #
Green
L
(In.)
4
6
8
ELVA04100
ELVA06100
ELVA08100
ELVA041G0
ELVA061G0
ELVA081G0
ELVA101G0
ELVA121G0
.332
.482
.632
.782
.932
4
6
8
ELVA04500
ELVA06500
ELVA08500
ELVA045G0 0.332
ELVA065G0 0.482
ELVA085G0 0.632
ELVA105G0 0.782
ELVA125G0 0.932
ELVA145G0 1.082
ELVA165G0 1.232
ELVA185G0 1.382
ELVA205G0 1.532
ELVA225G0 1.682
ELVA245G0 1.832
ELVA265G0 1.982
ELVA285G0 2.132
ELVA305G0 2.282
ELVA325G0 2.432
ELVA345G0 2.582
ELVA365G0 2.732
ELVA385G0 2.882
ELVA405G0 3.032
4 ELVA04100E ELVA041G0E 0.710
6 ELVA06100E ELVA061G0E 0.860
8 ELVA08100E ELVA081G0E 1.010
10 ELVA10100E ELVA101G0E 1.160
12 ELVA12100E ELVA121G0E 1.310
14 ELVA14100E ELVA141G0E 1.460
16 ELVA16100E ELVA161G0E 1.610
18 ELVA18100E ELVA181G0E 1.760
20 ELVA20100E ELVA201G0E 1.910
22 ELVA22100E ELVA221G0E 2.060
24 ELVA24100E ELVA241G0E 2.210
26 ELVA26100E ELVA261G0E 2.360
28 ELVA28100E ELVA281G0E 2.510
30 ELVA30100E ELVA301G0E 2.660
32 ELVA32100E ELVA321G0E 2.810
34 ELVA34100E ELVA341G0E 2.960
36 ELVA36100E ELVA361G0E 3.110
38 ELVA38100E ELVA381G0E 3.260
40 ELVA40100E ELVA401G0E 3.410
4 ELVA04500E ELVA045G0E 0.710
6 ELVA06500E ELVA065G0E 0.860
8 ELVA08500E ELVA085G0E 1.010
10 ELVA10500E ELVA105G0E 1.160
12 ELVA12500E ELVA125G0E 1.310
14 ELVA14500E ELVA145G0E 1.460
16 ELVA16500E ELVA165G0E 1.610
18 ELVA18500E ELVA185G0E 1.760
20 ELVA20500E ELVA205G0E 1.910
22 ELVA22500E ELVA225G0E 2.060
24 ELVA24500E ELVA245G0E 2.210
26 ELVA26500E ELVA265G0E 2.360
28 ELVA28500E ELVA285G0E 2.510
30 ELVA30500E ELVA305G0E 2.660
32 ELVA32500E ELVA325G0E 2.810
34 ELVA34500E ELVA345G0E 2.960
36 ELVA36500E ELVA365G0E 3.110
38 ELVA38500E ELVA385G0E 3.260
40 ELVA40500E ELVA405G0E 3.410
10 ELVA10100
12 ELVA12100
14 ELVA14100
16 ELVA16100
18 ELVA18100
20 ELVA20100
22 ELVA22100
24 ELVA24100
26 ELVA26100
28 ELVA28100
30 ELVA30100
32 ELVA32100
34 ELVA34100
36 ELVA36100
38 ELVA38100
40 ELVA40100
10 ELVA10500
12 ELVA12500
14 ELVA14500
16 ELVA16500
18 ELVA18500
20 ELVA20500
22 ELVA22500
24 ELVA24500
26 ELVA26500
28 ELVA28500
30 ELVA30500
32 ELVA32500
34 ELVA34500
36 ELVA36500
38 ELVA38500
40 ELVA40500
ELVA141G0 1.082
ELVA161G0 1.232
ELVA181G0 1.382
ELVA201G0 1.532
ELVA221G0 1.682
ELVA241G0 1.832
ELVA261G0 1.982
ELVA281G0 2.132
ELVA301G0 2.282
ELVA321G0 2.432
ELVA341G0 2.582
ELVA361G0 2.732
ELVA381G0 2.882
ELVA401G0 3.032
See page 13 for gold plating and marking option suffixes
SPECIFICA TIONS:
MATERIALS:
APPROVALS:
Current Rating:
12A
Operating Voltage:
300V
Insulation Resistance:
>10
3
Megohms
Dielectric Withstanding:
<1600V
Housing:
Polyamide, UL 94V-0, black or
green
Contact:
Copper alloy, optional finish
HEADER INST ALLATION:
Consult factory for specific product recognitions
Hole Diameter:
.047"
Amphenol Pcd
Amphenol Pcd • 2 Technology Drive • Peabody, MA 01960 • www.amphenolpcd.com • 800.333.4723 • info@amphenolpcd.com
23
Embedded System
京公网安备 11010802033920号
EEWORLD
