8265540000

Description
interface cbl idc male 45mm 16pl
CategoryThe connector
File Size74KB,2 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

8265540000 Online Shopping

Suppliers Part Number Price MOQ In stock
8265540000 - - View Buy Now

8265540000 Overview

interface cbl idc male 45mm 16pl

8265540000 Parametric

Parameter NameAttribute value
Datasheets
8265540000
Standard Package1
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Interface Modules
Process Side ConnectiTerminal Blocks - Screw Connecti
Control Side ConnectiRectangular, Male
Control Side Cable RetaineLatches
Positions / Poles16
Features-
Voltage - Rated60VAC, 75VDC
Current Rating (Per Contact)1A
Operating Temperature0°C ~ 55°C
Length2.52" (64.00mm)
Width1.77" (45.00mm)
Wire Gauge-
Associated Produc38340-ND - DIN RAIL 35MMX7.5MM UNSLOT 2M49800-ND - DIN RAIL 35MMX7.5MM UNSLOT 2M0122800000-ND - DIN RAIL 32X15MM UNSLOT STEEL 2M0199360000-ND - BRACKET END TS32 FOR SAK16 PA BG0383530000-ND - ENDPLATE EW 35 VO GREY281-2903-ND - ENDPLATE EW 35 FOR TS 35 PA BG
Other NamesRI/IDC/16/GSE

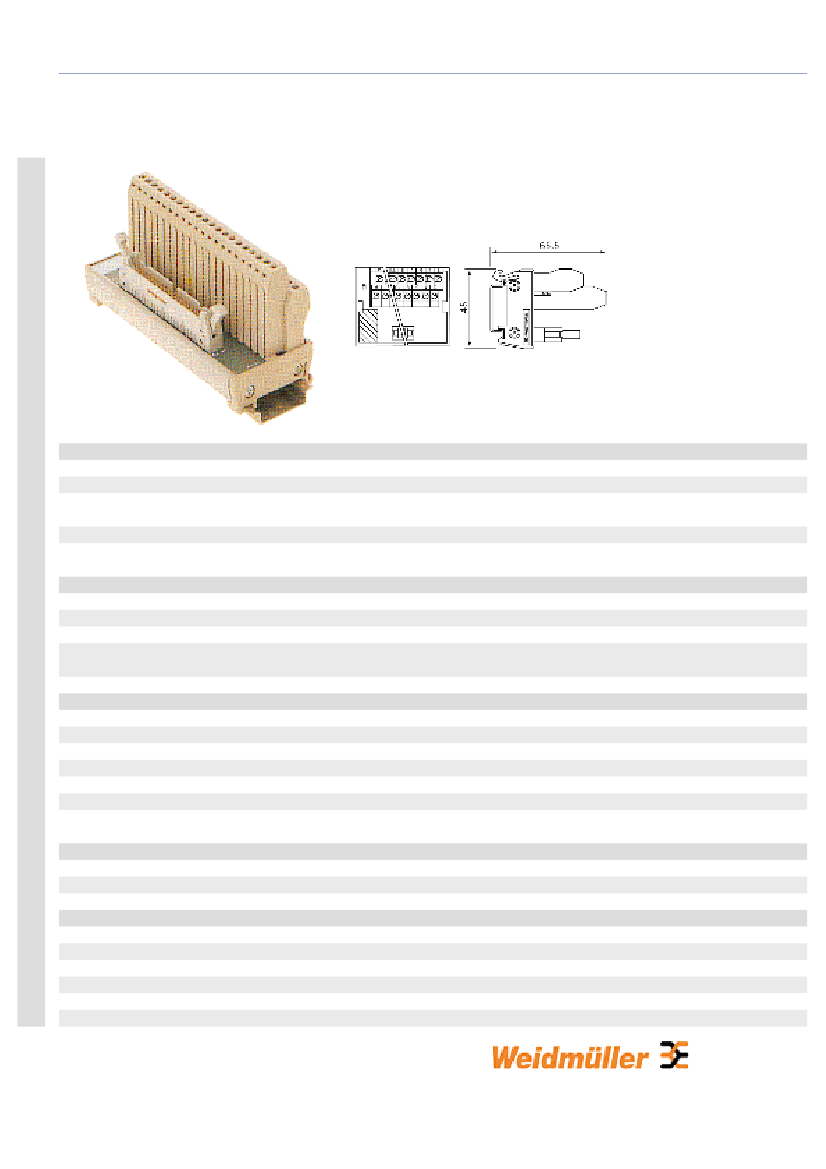

Product catalogue | Functional Electronics | Interface elements | Interface element IEC 603-1 | RSF 45 mm screw
connection / IEC 603-1
General ordering data
Order No.
Part designation
Version
EAN
Qty.
Connection data
Connection on control side
Connection on process side
Contact assembly
Implementation of connection level / plug
connector
Ratings
Ambient temperature (operational)
Number of signals
Rated control voltage
Rated current per connection
Storage temperature
Test torque
Test voltage (~eff)
Insulation coordination (EN 50 178)
Overvoltage category
Pollution severity
Connection cross-section
Flexible, max. (H07V-U)
Flexible, max. AEHK
Flexible, min. (AEHK)
Flexible, min. (H07V-U)
Solid, max. (H07V-U)
Solid, min. (H07V-U)
8265540000
RS F16 LPK 2H/18
Interface unit, Plug-in connector, acc. to IEC
603-1/ DIN 41651, Number of signals: 16
4008190431518
1 pc(s).
Plug-in connector, acc. to IEC 603-1/ DIN 41651
PCB terminal LPK 2 H
16-pole
1:1
0 °C...+55 °C
16
60 V AC/ 75 V DC
1A
-40 °C...+70 °C
0.4 Nm
1 kV
III
2
1.5 mm²
1.5 mm²
0.5 mm²
0.5 mm²
2.5 mm²
0.5 mm²
-1-
