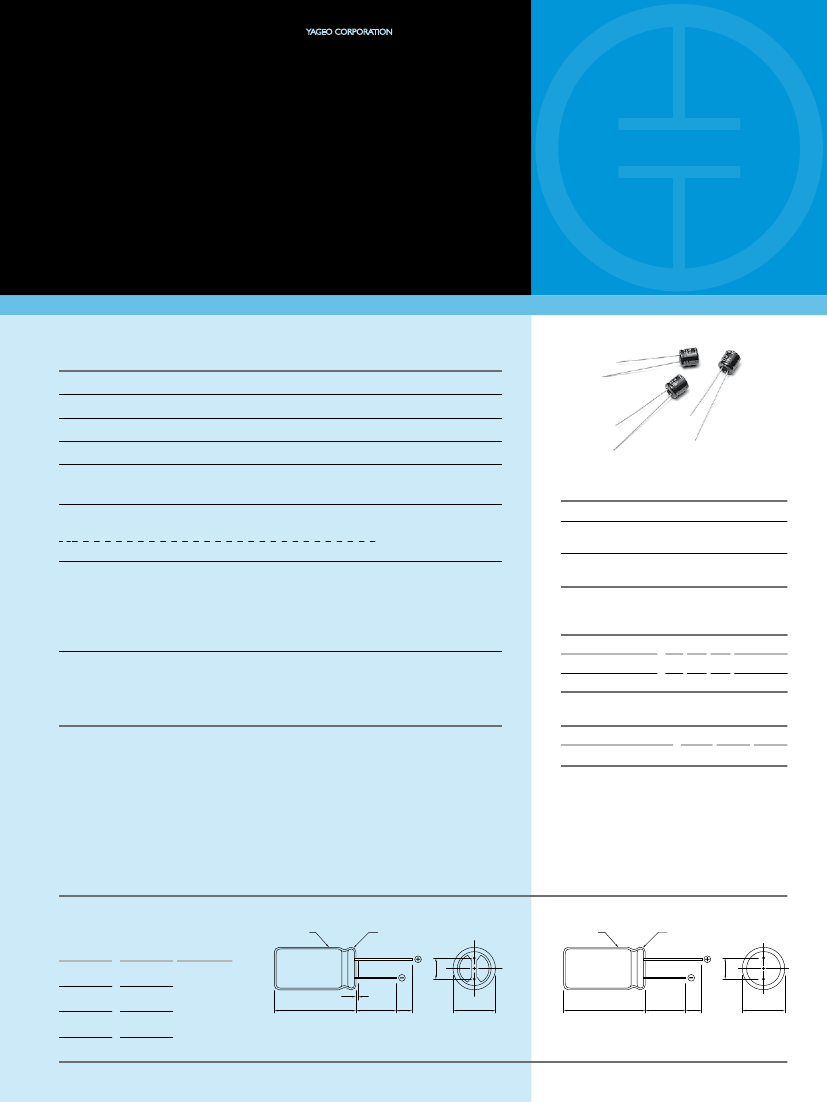

YAGEO CORPORATION
ELECTROLYTIC CAPACITORS
S5
[ For Super Miniature ]
105°C Single-Ended Lead, 5.0mm Height Type Aluminum Electrolytic Capacitors
Miniature Aluminum
Electrolytic Capacitors
ELECTRICAL CHARACTERISTICS
Operating Temperature Range : -40 ~ +105°C
Rated Voltage Range : 4 ~ 50V
Rated Capacitance Range : 0.1 ~ 470µF
Capacitance Tolerance : -20 ~ +20% at 120Hz, 20°C
DC Leakage Current (µA) : I = 0.01CV (µA) or 3µA whichever is greater.
(After Rated Voltage Applied for 2 Minutes )
Dissipation Factor : at 120 Hz, 20°C
W V (V) : 4
6.3
10
D.F (%) : 35
24
20
16
17
25
15
35
12
50
10
DESCRIPTION
The S5 series is smaller than SS series.
This type is designed for saving space and high density
insertion.
Applications : Camera, Car Audio, Miniaudio and Other
Industrial and Commercial Applications
MULTIPLIER FOR RIPPLE CURRENT
Frequency Coefficient
FREQUENCY (Hz)
0.1~47µF
100~330µF
Temperature Coefficient
TEMPERATURE (°C)
FACTOR
65
1.40
85
1.20
105
1.00
120 300 1K 10K~100K
1.00 1.20 1.30 1.50
1.00 1.10 1.15 1.20
Endurance : After the rated voltage has been applied at 105°C for 1000 hours, the capacitors shall
meet following requirements.
(a) Capacitance Change : Within 20% of Initial Value
(b) Dissipation Factor : 200% or Less of Initial Specified Value
(c) Leakage Current : Initial Specified Value or Less
Shelf Life : After leaving capacitors under load at 105°C for 500 hours.
(a) Capacitance Change : Within 20% of Initial Value
(b) Dissipation Factor : 200% or Less of Initial Specified Value
(c) Leakage Current : 200% or Less of Initial Specified Value
DIAGRAM OF DIMENSIONS
Rubber Stand-off
Vinyl Sleeve
(P.V.C)
Rubber End Seal
Vinyl Sleeve
(P.V.C)
F
±
0.5
Rubber End Seal
Dimensions: mm
Dø
4.0
5.0
6.3
8.0
F
1.5
2.0
2.5
3.5
dø
0.45
F
±
0.5
L
0.4Max.
15Min.
5Min.
D
±
0.5
L
15Min.
5Min.
D
±
0.5
L
≤
16 L + 1.5Max.
L
>
16 L + 2Max.
Dø = 8 & 10 L + 2.5Max.
Dø
<
20 Dø + 0.5
Dø
≥
20 Dø + 1
