BN274G0685MEN: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 250V, 6.8uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size64KB，1 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

BN274G0685MEN Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 250V, 6.8uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

BN274G0685MEN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2015586601
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	6.8 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	20%
Rated (AC) voltage (URac)	115 V
Rated (DC) voltage (URdc)	250 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

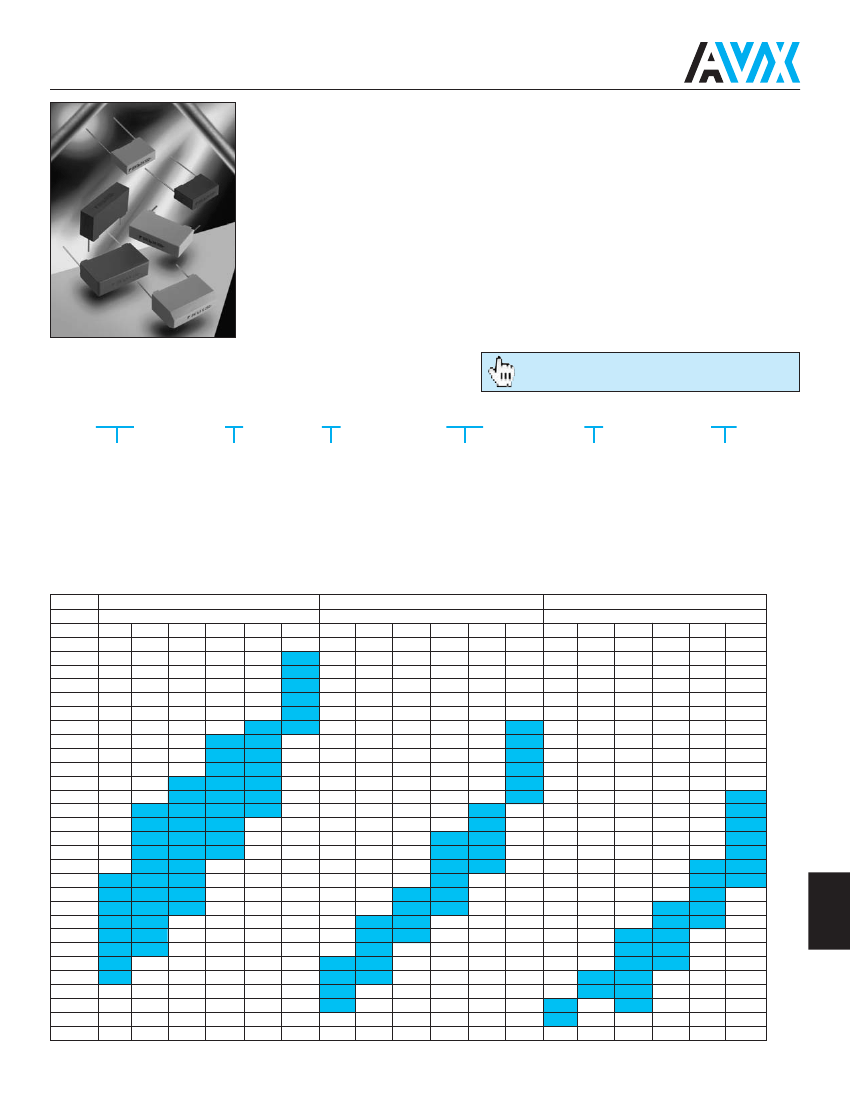

BN Film Capacitors

Radial Leaded (BN-RoHS) 7.5mm to 27.5mm

BN Series

Dielectric: Polyester film

Stacked-film for pitch 7.5, 10 & 15mm (63Vdc...400Vdc)

Wound capacitor

for pitch 7.5 & 10 & 15mm (630Vdc/1000Vdc)

for pitch 22.5 & 27.5mm (63Vdc/1000Vdc)

Leads: Radial tinned copper wire

Protection: Plastic case (UL94: V-O) / Polyurethane resin

Marking: Logo

Type

Nominal Capacitance

Tolerance (EIA)

DC Nominal Voltage

Example:

T BN 47n J 400

Delivery Mode: Bulk

Check for up-to-date CV Tables at

Taped (reel)

HOW TO ORDER

BN07

Identification

Code

Radial Leads

CPM85

BN 07

CPM85

BN 10

CPM85

BN 15

CPM85

BN 22

CPM85

BN 27

http://www.avx.com/docs/catalogs/bn.pdf

Dielectric Class

Polyester: 4

Voltage Code

D = 50/63 V

E = 100 V

G = 250 V

I = 400 V

K = 600/630 V

L = 1000 V

0104

––

Suffix

Radial types:

lead spacing 7.5/10/15mm

taped on reel H=16.5mm

Capacitance (EIA code)

Tolerance Code

Capacitance expressed by 2

J = ±5%

significant figures

K = ±10%

1st digit:

0 (zero)

M = ±20%

2nd and 3rd digit:

the 2

significant figures of the

capacitance value

4th digit:

- for values

≥

10 pF and

≤

990 µF:

the number of zeros to be added

to the capacitance values

BN22

Vr-/Vr~

250/115 400/200 630/220 1000/450 63/40

Pitch

Vr-/Vr~

Cap

6.8 nF

10 nF

15 nF

22 nF

27 nF

33 nF

47 nF

68 nF

82 nF

100 nF

120 nF

150 nF

220 nF

330 nF

470 nF

560 nF

680 nF

1 µF

1.5 µF

2.2 µF

3.3 µF

4.7 µF

6.8 µF

8.2 µF

10 µF

15 µF

20 µF

22 µF

63/40

BN15

Vr-/Vr~

100/63 250/115 400/200 630/220 1000/450 63/40

100/63

BN27

Vr-/Vr~

250/115 400/200 630/220 1000/450

Please consult AVX for additional values.

Leaded

Capacitors – Film
