1-282853-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1-282853-3

1-282853-3: Descriptionterm block rcpt 13pos R/A .400; CategoryThe connector; File Size41KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

1-282853-3 Overview

term block rcpt 13pos R/A .400

1-282853-3 Parametric

Parameter Name	Attribute value
Datasheets
282853
Standard Package	100
Category	Connectors, Interconnects
Family	Terminal Blocks - Wire to Board
Packaging	Bulk
Number of Levels	1
Positions Per Level	13
Pitch	0.400" (10.16mm)
Mating Orientati	Vertical with Board
Curre	17.5A
Voltage	600V
Wire Gauge	12-30 AWG
Mounting Type	Through Hole
Wire Terminati	Screw - Rising Cage Clam
Features	Interlocking (Side)
Col	Gree
Operating Temperature	-
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Torque - Screw	0.79 Nm (7.0 Lb-In)
Screw Thread	M3

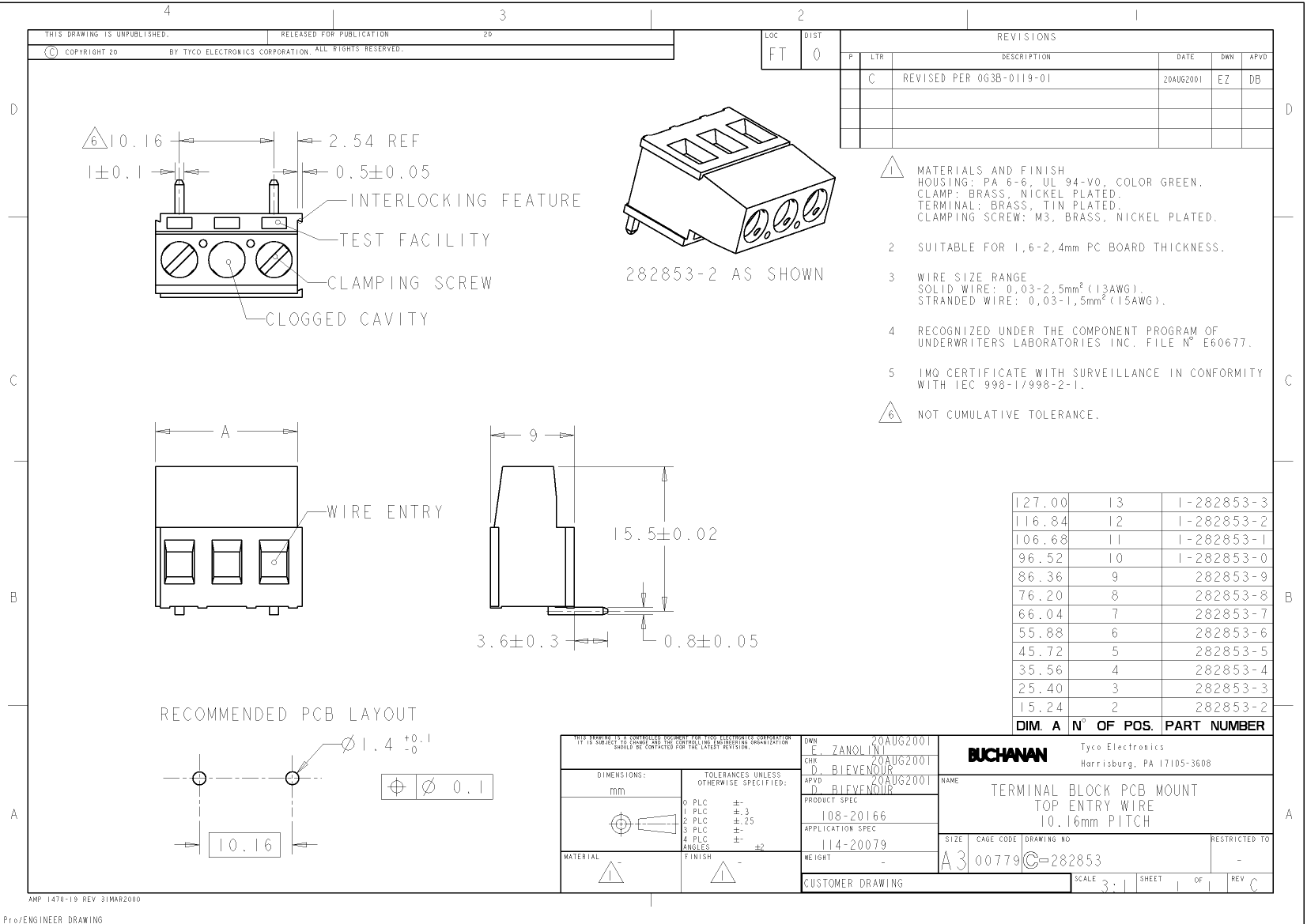

Preview

Download Datasheet

View All

1-282853-3 Related Products

	1-282853-3	282853-5	282853-6	282853-7	282853-3	282853-4	282853-2	1-282853-2	1-282853-1
Description	term block rcpt 13pos R/A .400	term block rcpt 5pos R/A .400	term block rcpt 6pos R/A .400	term block rcpt 7pos R/A .400	term block rcpt 3pos R/A .400	term block rcpt 4pos R/A .400	term block rcpt 2pos R/A .400	term block rcpt 12pos R/A .400	term block rcpt 11pos R/A .400
Standard Package	100	400	400	200	600	400	800	100	100
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board	Terminal Blocks - Wire to Board
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Number of Levels	1	1	1	1	1	1	1	1	1
Positions Per Level	13	5	6	7	3	4	2	12	11
Pitch	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)	0.400" (10.16mm)
Mating Orientati	Vertical with Board	Vertical with Board	Vertical with Board	Vertical with Board	Vertical with Board	Vertical with Board	Vertical with Board	Vertical with Board	Vertical with Board
Curre	17.5A	17.5A	17.5A	17.5A	17.5A	17.5A	17.5A	17.5A	17.5A
Voltage	600V	600V	600V	600V	600V	600V	600V	600V	600V
Wire Gauge	12-30 AWG	12-30 AWG	12-30 AWG	12-30 AWG	12-30 AWG	12-30 AWG	12-30 AWG	12-30 AWG	12-30 AWG
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Wire Terminati	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam	Screw - Rising Cage Clam
Features	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)	Interlocking (Side)
Col	Gree	Gree	Gree	Gree	Gree	Gree	Gree	Gree	Gree
Housing Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Nickel Plated
Torque - Screw	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)	0.79 Nm (7.0 Lb-In)
Screw Thread	M3	M3	M3	M3	M3	M3	M3	M3	M3
