Part Number

Search

39170-2015

Description
conn interface module dsub 15pos
CategoryThe connector
File Size143KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric Compare View All

39170-2015 Online Shopping

Suppliers Part Number Price MOQ In stock
39170-2015 - - View Buy Now

39170-2015 Overview

conn interface module dsub 15pos

39170-2015 Parametric

Parameter NameAttribute value

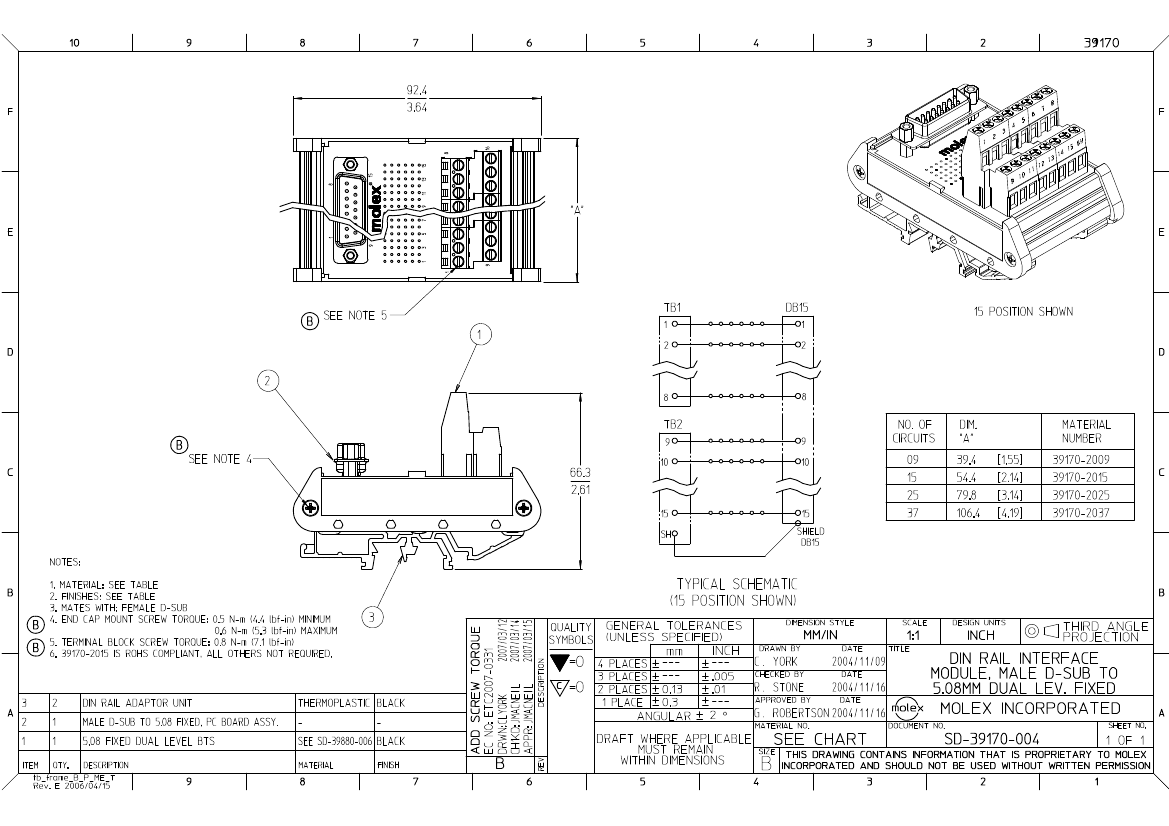

Datasheets
39170-20zz
3D Model
39170-2015.s
PCN Obsolescence/ EOL
39170 Series 31/Dec/2009
Standard Package1
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Interface Modules
Process Side ConnectiTerminal Blocks - Screw Connecti
Control Side ConnectiD-Sub, Male
Control Side Cable RetaineJackscrew Socke
Positions / Poles15
FeaturesComponent Are
Voltage - Rated300V
Current Rating (Per Contact)15A
Operating Temperature110°C
Length2.14" (54.36mm)
Width3.64" (92.45mm)
Wire Gauge12-26 AWG
Other Names039170-2015039170-2015-E03917020150391702015-E39170-2015-E391702015391702015-E

39170-2015 Related Products

39170-2015 39170-2009 39170-2037 39170-2025
Description conn interface module dsub 15pos conn interface module dsub 9pos conn interface module dsub 37pos conn interface module dsub 25pos
Standard Package 1 1 1 -
Category Connectors, Interconnects Connectors, Interconnects Connectors, Interconnects -
Family Terminal Blocks - Interface Modules Terminal Blocks - Interface Modules Terminal Blocks - Interface Modules -
Process Side Connecti Terminal Blocks - Screw Connecti Terminal Blocks - Screw Connecti Terminal Blocks - Screw Connecti -
Control Side Connecti D-Sub, Male D-Sub, Male D-Sub, Male -
Control Side Cable Retaine Jackscrew Socke Jackscrew Socke Jackscrew Socke -
Positions / Poles 15 9 37 -
Features Component Are Component Are Component Are -
Voltage - Rated 300V 300V 300V -
Current Rating (Per Contact) 15A 15A 15A -
Operating Temperature 110°C 110°C 110°C -
Length 2.14" (54.36mm) 1.55" (39.37mm) 4.19" (106.63mm) -
Width 3.64" (92.45mm) 3.64" (92.45mm) 3.64" (92.45mm) -
Wire Gauge 12-26 AWG 12-26 AWG 12-26 AWG -
Other Names 039170-2015039170-2015-E03917020150391702015-E39170-2015-E391702015391702015-E 039170-2009039170-2009-E03917020090391702009-E39170-2009-E391702009391702009-E 039170-2037039170-2037-E03917020370391702037-E39170-2037-E391702037391702037-E -
