P2013N-FE datasheet, PDF - EEWORLD Datasheet

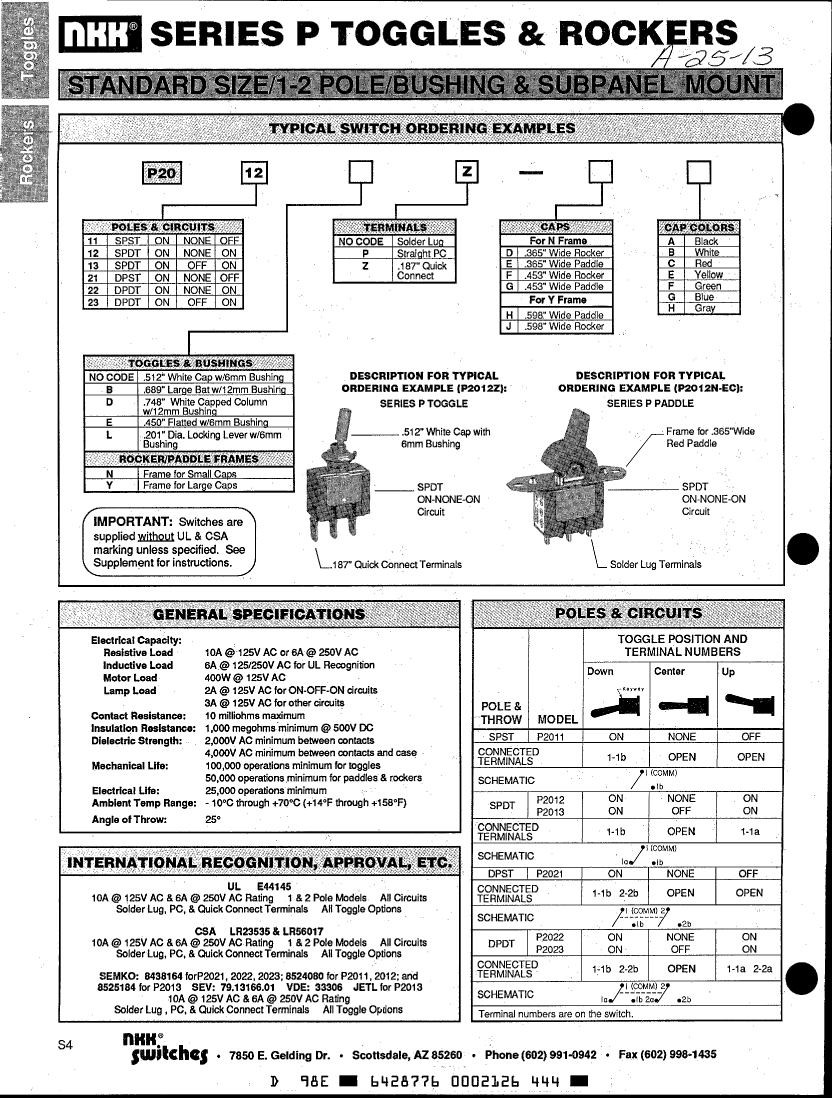

P2013N-FE: DescriptionRocker Switch, SPDT, On-off-on, Maintained, Solder Lug Terminal, Rocker Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size534KB，3 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

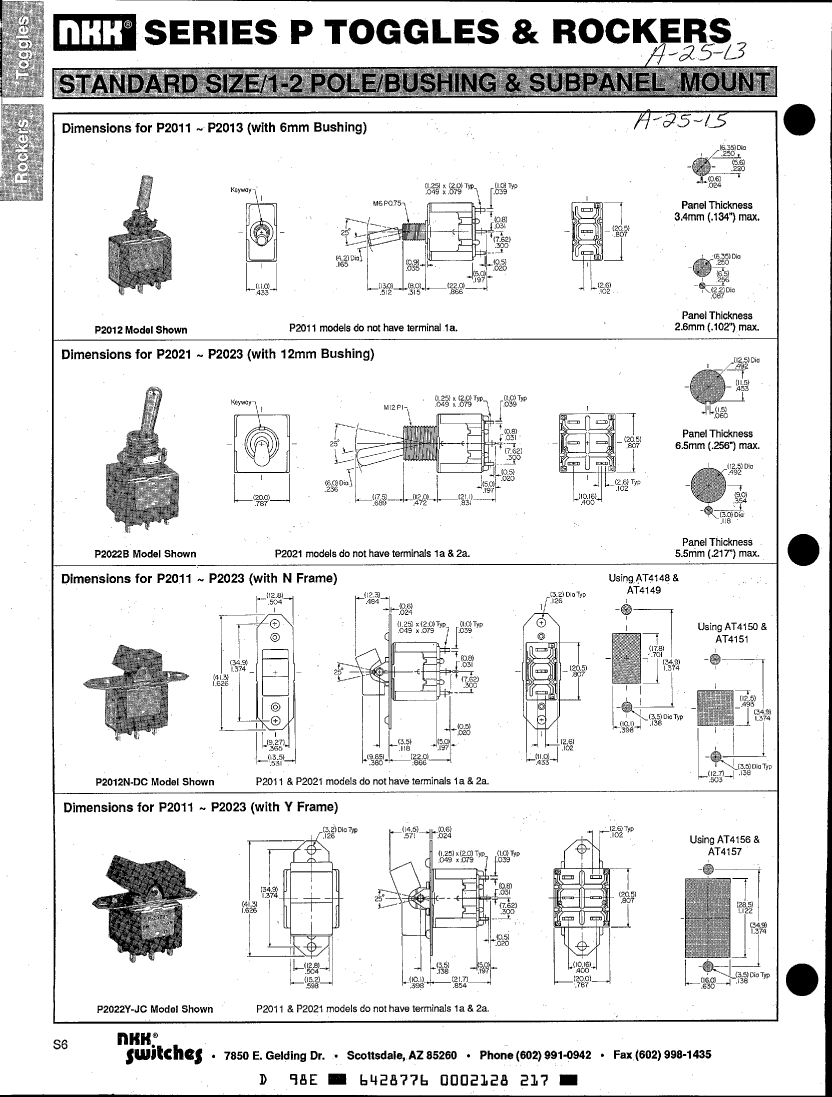

P2013N-FE Overview

Rocker Switch, SPDT, On-off-on, Maintained, Solder Lug Terminal, Rocker Actuator, Panel Mount

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1166890676
Reach Compliance Code	compliant
ECCN code	EAR99

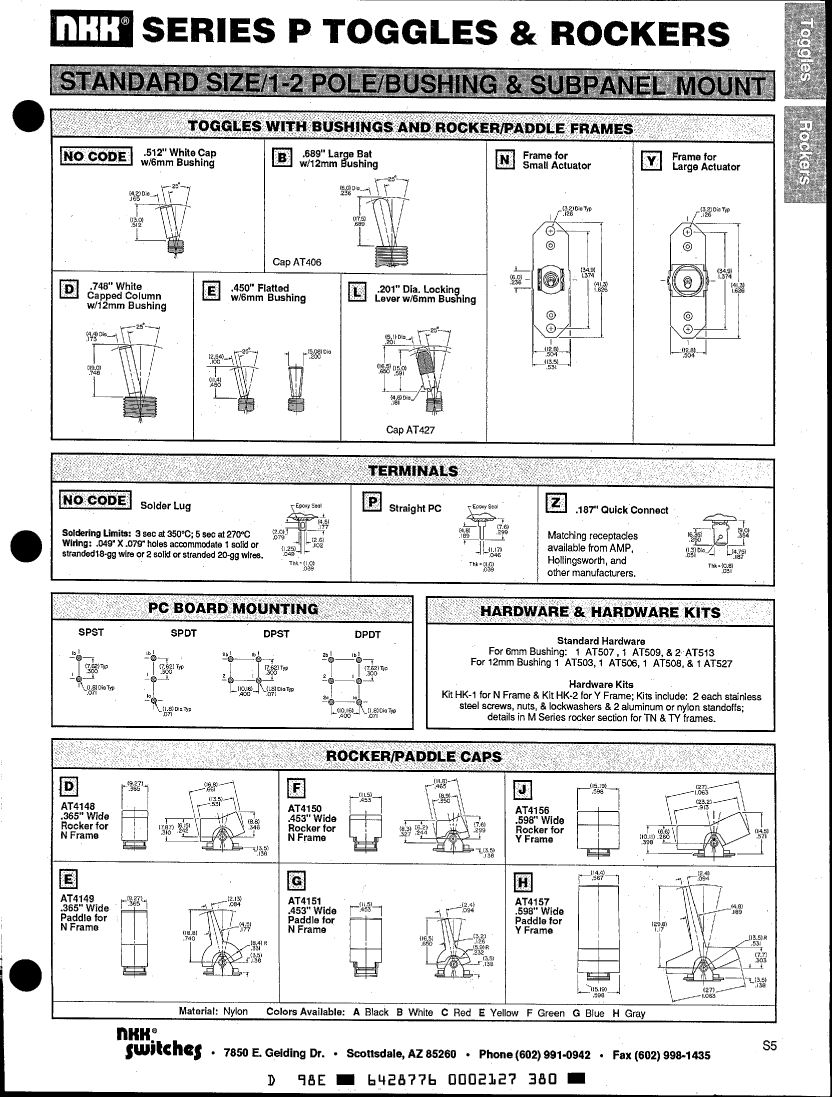

Actuator angle	25 deg
Actuator length	0.508 inch
Actuator type	ROCKER
Other features	SMALL CAP, ROCKER WIDTH=0.453
body width	10.9982 mm
Body length or diameter	20.4978 mm
Contact (AC) maximum rated load I	6A@250VAC
Contact (AC) maximum rated load M	3A@125VAC
Contact (AC) maximum rated R load	6A@250VAC
Maximum contact current (AC)	6 A
Contact function	ON-OFF-ON
Contact resistance	0.01 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	4000VAC V
Electrical life	25000 Cycle(s)
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Installation features	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
seal	EPOXY
surface mount	NO
Switch action	MAINTAINED
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Termination type	SOLDER LUG
