MINIATURE CERAMIC SMD CRYSTAL
Smaller package alternative for ABM7 series
ABM3
Pb in Glass, exemption 7C-I per RoHS II Directive
RoHS/RoHS II Compliant.
2011/65/EU Annex
5.0 X 3.2 X 1.3mm
| | | | | | | | | | | |
| | |
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable
FEATURES:
AT-cut fundamental or 3rd OT mode
Suitable for RoHS reflow profile
Tight Stability available ±10
Ceramic package hermetically glass sealed assures high precision and reliability.
APPLICATIONS:
Cellular telephones, pagers
Communication and test equipment
PCMCIA and wireless applications
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Operation Mode
Operating Temperature
Storage Temperature
Frequency Tolerance @+25°C
Frequency Stability over the Operating
Temperature ( ref. to +25°C)
Minimum
Typical
Maximum
Units
MHz
ºC
ºC
ppm
ppm
8.000
9.000
10.000
16.000
20.000
30.000
Notes
Fundamental
3
rd
Overtone
See options
See options
See options
F < 9.000 (Fund)
F < 10.000 (Fund)
F < 16.000 (Fund)
F < 20.000 (Fund)
F < 30.000 (Fund)
F
54.000 (Fund)
8.000
54.000
54.100
80.000
Fundamental or 3
rd
Overtone
-10
+60
-40
+90
-50
+50
-50
+50
Equivalent series resistance (R1)
140
120
60
40
30
25
60
7
18
10
-5
500
100
+5
pF
pF
µW
ppm
M
54.000 < F 80.000 (3
rd
OT)
Shunt capacitance (C0)
Load capacitance (CL)
Drive Level
Aging
Insulation Resistance
Standard
(See options if other
than STD)
@25°C±3°C
First year
@ 100Vdc ± 15V
LLC
1501 Hidden Creek Lane Spicewood TX 78751
Phone: 949-546-8000 | Fax: 949-546-8001
For terms and conditions of sales visit:
www.abracon.com
REVISED:
07/19/2018
ABRACON IS
ISO9001-2015
CERTIFIED
MINIATURE CERAMIC SMD CRYSTAL
ABM3
ABM3 -
Frequency in MHz
Please specify the frequency
in MHz.
e.g. 14.31818MHz
Load Capacitance (pF)
Please specify CL in pF
or S for series
Custom ESR if other
than standard
R
: Specify a value in
(e.g.: R40)
Operating Temp.
(See Table 1 for details)
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Pb in Glass, exemption 7C-I per RoHS II Directive
RoHS/RoHS II Compliant.
2011/65/EU Annex
5.0 X 3.2 X 1.3mm
| | | | | | | | | | | |
| | |
OPTIONS AND PART IDENTIFICATION: (Left blank if standard)
OPTIONS AND PART IDENTIFICATION:
MHz -
-
-
-
Packaging
Blank: Bulk
T: Tape & Reel
Freq. Stability
(See Table 1 for details)
U: ± 10 ppm
G: ± 15 ppm
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H: ± 35 ppm
Q: ± 100 ppm
Freq. Tolerance
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Table 1 Available Combinations of Operating Temp. and Freq. Stability
Operating Temp.
Std: -10°C ~ +60°C
E: 0°C ~ +70°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J: -40°C ~ +105°C
K: -40°C ~ +125°C
Freq. Stability
U:±10ppm
G:±15ppm
X:±20ppm
W:±25ppm
Y:±30ppm
H:±35ppm Std:±50ppm Q:±100ppm
LLC
1501 Hidden Creek Lane Spicewood TX 78751
Phone: 949-546-8000 | Fax: 949-546-8001
For terms and conditions of sales visit:
www.abracon.com
REVISED:
07/19/2018
ABRACON IS
ISO9001-2015
CERTIFIED
MINIATURE CERAMIC SMD CRYSTAL
ABM3

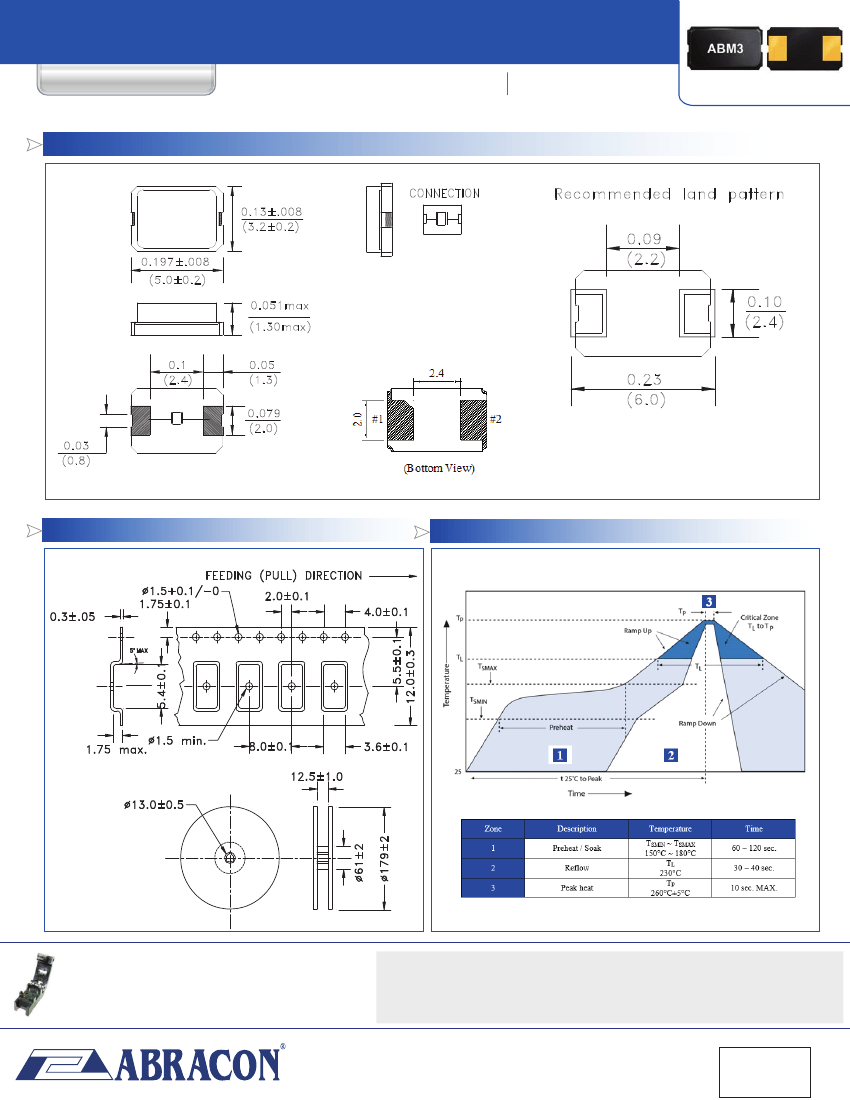

OUTLINE DRAWING:
Pb in Glass, exemption 7C-I per RoHS II Directive
RoHS/RoHS II Compliant.
2011/65/EU Annex
5.0 X 3.2 X 1.3mm
| | | | | | | | | | | |
| | |
Alternative bottom packaging 1:
Pin 1
Pin 2
Dimensions: inch (mm)
TAPE & REEL:
Tape and reel (1,000pcs/reel)
REFLOW PROFILE
Dimensions: mm
ATTENTION:
Abracon LLC’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial,
Industrial and, where designated, Automotive Applications. Abracon’s products are not specifically designed for
Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or
presenting an extreme operating environment, written consent and authorization from Abracon LLC is required.
Please contact Abracon LLC for more information.
Need a test socket for the ABM3 Series? To view
compatible
PRECISION TEST & BURN-IN SOCKETS
for these parts,
click here. P/N: AXS-5032-02-06
CE
LLC
1501 Hidden Creek Lane Spicewood TX 78751
Phone: 949-546-8000 | Fax: 949-546-8001
For terms and conditions of sales visit:
www.abracon.com
REVISED:
07/19/2018
ABRACON IS
ISO9001-2015
CERTIFIED
