A-TB762-HA12H

Description
terminal block
CategoryThe connector
File Size170KB,1 Pages
ManufacturerASSMANN WSW components
Environmental Compliance
Download Datasheet Parametric View All

A-TB762-HA12H Overview

terminal block

A-TB762-HA12H Parametric

Parameter NameAttribute value
Datasheets

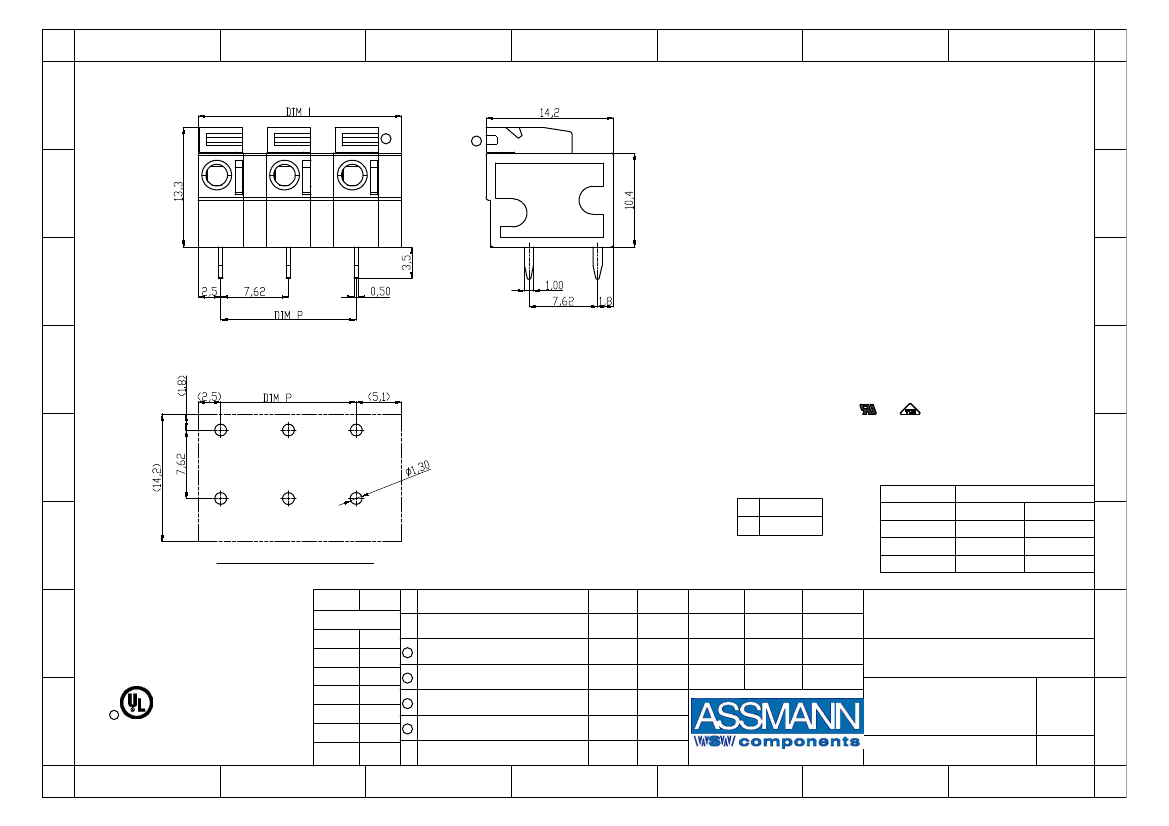

A-TB762-HAxxH Drawing
Standard Package500
CategoryConnectors, Interconnects
FamilyTerminal Blocks - Wire to Board
PackagingBulk
Number of Levels1
Positions Per Level12
Pitch0.300" (7.62mm)
Mating OrientatiHorizontal with Board
Curre10A
Voltage300V
Wire Gauge14-24 AWG
Mounting TypeThrough Hole
Wire TerminatiScrewless
FeaturesInterlocking (Side), Lever Actuated
ColGree
Operating Temperature-40°C ~ 115°C
Housing MaterialThermoplastic
Contact Material - PlatingBrass
Clamp Material - PlatingSteel, Stainless
Screw Material - Plating-
Torque - Screw-
Screw Thread-
1
A
2
3
4
5
6
7
A
1
1
Material
Terminal body(Contact pin):Brass
B
Electrical
housing): Thermoplastic (UL94V-0) ,
GREEN(RAL6018/T)
cULus/VDE
B
C
Voltage rating: 300VAC/450VAC
Current rating: 10A/10A
Solid wire(AWG): 14-24
Stranded wire(AWG): 14-24
Pull force:
Screw:
Wire strip length: 9-10mm
Withstanding Voltage: 1.6KV/2.5KV
C
D
D
Safety Approval:
c
us
E
DIMENSION
L
Nx7.62
2p-6p
7p-12p
13p-24p
Customer-No.
E
Poles
Tolerance
DIM L
DIM P
P (N-1)x7.62
F
RECOMMENDER PCB LAYOUT
N=Number of poles
F
Scale
Free
Drawn
3
2
Delete the Wrong dimension 37.51
Add the UL File No.
Update
Drawn
Modification
09.01.2017
19.04.2016
16.04.2013
19.04.2010
Date
Winnie
Winnie
Amy
Alex
Name
Approved
Date
19.04.2010
09.01.2017
Name
Alex
Winnie
TOLERANCE
G
RoHS compliant
Unit: mm
2
X.
X.X
X.XX
DIM
TOL
G
ASSMANN WSW-No.
A-TB762-HAxxH
Drawing-No.
1
0
H
File No.: E349947
ASS 4127 CO
Replace
rev03
