SPS-01T-187 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> SPS-01T-187

SPS-01T-187: Descriptionconn QC rcpt 20-26awg 0.187; CategoryThe connector; File Size192KB，9 Pages; ManufacturerJST; Environmental Compliance

Download Datasheet Parametric Compare View All

SPS-01T-187 Overview

conn QC rcpt 20-26awg 0.187

SPS-01T-187 Parametric

Parameter Name	Attribute value
Datasheets
PS Connec
Standard Package	10,000
Category	Connectors, Interconnects
Family	Terminals - Quick Connects, Quick Disconnect Connectors
Packaging	Tape & Reel (TR)
Terminal Type	Standard
Gende	Female
Tab Width	0.187" (4.75mm)
Tab Thickness	0.020" (0.51mm)
Tab Length	0.252" (6.40mm)
Length - Overall	0.677" (17.20mm)
Terminati	Crim
Wire Gauge	20-26 AWG
Insulati	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Features	-
Col	-
Contact Material	Brass
Contact Finish	Ti
Insulation Diamete	0.051" ~ 0.134" (1.30mm ~ 3.40mm)
For Use With	455-1110-ND - CONN HOUSING PS .187 3POS VERT455-1109-ND - CONN HOUSING PS .187 DUAL VERT455-1108-ND - CONN HOUSING PS .187 SINGLE VERT
Associated Produc	455-1107-ND - TOOL HAND CRIMP .187 PS 20-26AWG
Other Names	455-1106-2

Preview

Download Datasheet

View All

CONNECTOR

Connectors for tabs

• Secure locking, easy insertion

• Stable contact performance

• Mis-insertion prevention mechanism and

housing lance

• Tab mis-mating prevention mechanism

(Short housing type)

• The product compatible with glow wire is

also available for short housing type.

Specifications –––––––––––––––––––

• Current rating: 25 A AC, DC (#250 Tab /AWG #10)

• Voltage rating: 250 V AC, DC

• Temperature range:

40˚C to

105˚C

(including temperature rise in applying

electrical current)

• Contact resistance: Initial value/ 3 mΩ max.

After environmental tests/ 6 mΩ max.

• Insulation resistance: 1,000 MΩ min.

• Withstanding voltage: 2,000 VAC/minute

• Applicable wire:

#110...AWG #24 to #16 #187...AWG #26 to #14

#205...AWG #22 to #14

#250...AWG #22 to #10

Standards ––––––––––––––––––––

Certified LR20812

R9850196

Contact

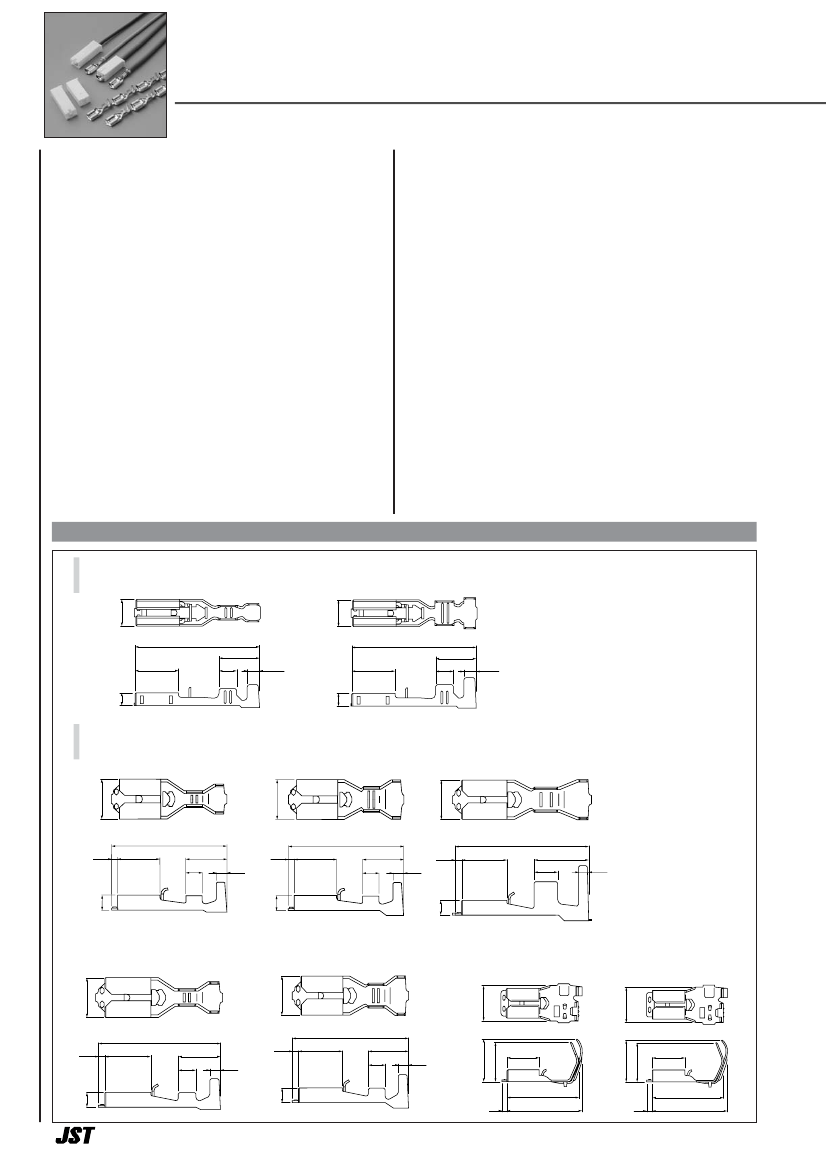

#110 Series

SPS-01T-110

3.7

Recognized E60389

• Applicable Tab: #110 Tab 0.5 mm thick

#187 Tab 0.5 mm/ 0.8 mm thick

#205 Tab 0.5 mm/ 0.8 mm thick

#250 Tab 0.8 mm thick

* Contact JST when you use the glow wire correspondence

product of PS-250-G (Short housing type).

* Refer to "General Instruction and Notice when using

Terminals and Connectors" at the end of this catalog.

* Contact JST for details.

* Compliant with RoHS.

SPS-41T-110

3.7

17.2

5.7

17.2

5.7

1.75

2.5

1.75

2.5

1.8

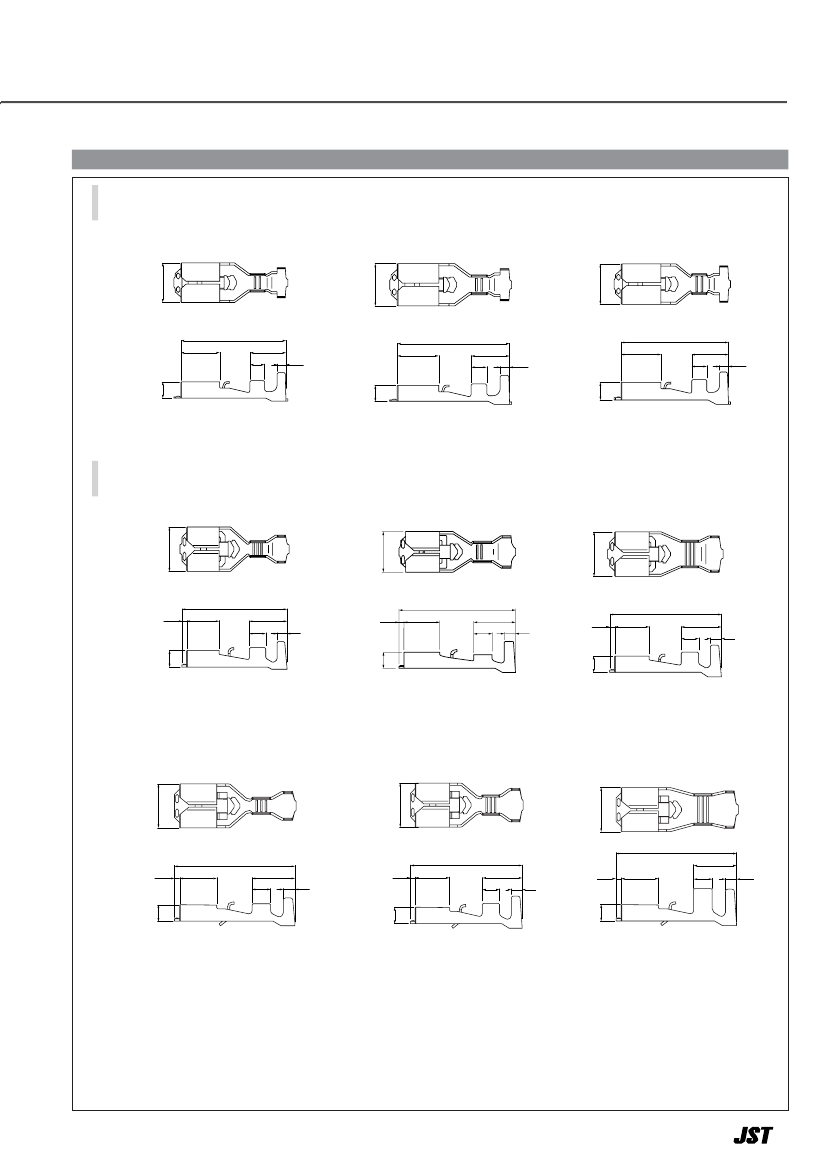

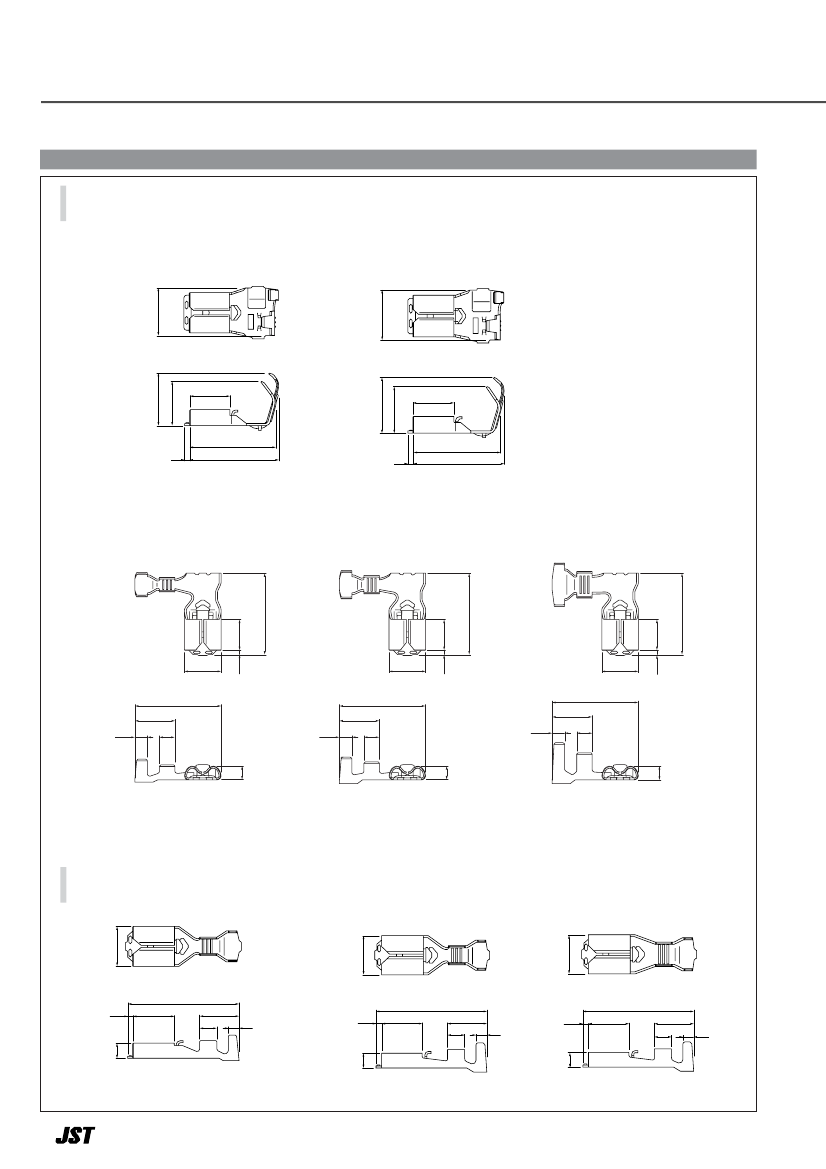

#187 Series

SPS-01T-187

(for 0.5 mm thick tabs)

SPS-51T-187

(for 0.5 mm thick tabs)

1.8

SPS-82T-187

(for 0.5 mm thick tabs)

5.6

17.2

0.9

6.4

2.5

1.5

0.9

6.4

5.6

17.2

6.1

2.5

1.6

0.8

6.4

5.6

18.8

7.7

3.2

1.7

2.2

SPS-01T-187-8

(for 0.8 mm thick tabs)

SPS-51T-187-8

(for 0.8 mm thick tabs)

SFPS-41T-187

(for 0.5 mm thick tabs)

6.8

SFPS-41T-187-8

(for 0.8 mm thick tabs)

6.8

5.6

17.2

0.9

6.4

2.5

6.2

1.5

0.9

6.4

17.2

6.1

7.6

2.5

1.6

6.3

2.2

13.9

14.7

7.6

13.9

14.7

SPS-01T-187 Related Products

	SPS-01T-187	PS-250(N)	PS-187(N)	PS-187-2A-15(N)	PS-250-2A-15(N)	PS-187-3V(N)	FPS-187	SFPS-41T-187	SPS-51T-187	SPS-61T-250
Description	conn QC rcpt 20-26awg 0.187	conn housing PS .250 single vert	conn housing PS .187 single vert	conn housing PS .187 dual vert	conn housing PS .250 dual vert	conn housing PS .187 3pos vert	conn housing PS .187 right angle	conn QC rcpt 16-22awg 0.187	conn QC rcpt 14-20awg 0.187	conn QC rcpt 14-18awg 0.250
Standard Package	10,000	1,000	1,000	500	500	2,500	-	-	-	-
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	-	-	-	-
Family	Terminals - Quick Connects, Quick Disconnect Connectors	Terminals - Housings, Boots	Terminals - Housings, Boots	Terminals - Housings, Boots	Terminals - Housings, Boots	Terminals - Housings, Boots	-	-	-	-
Terminal Type	Standard	Quick Connect, Disconnec	Quick Connect, Disconnec	Quick Connect, Disconnec	Quick Connect, Disconnec	Quick Connect, Disconnec	-	-	-	-
Gende	Female	Female, Receptacle	Female, Receptacle	Female, Receptacle	Female, Receptacle	Female, Receptacle	-	-	-	-
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	-	-	-	-
Associated Produc	455-1107-ND - TOOL HAND CRIMP .187 PS 20-26AWG	455-1117-2-ND - CONN QC RCPT 14-18AWG 0.250455-1115-2-ND - CONN QC RCPT 18-22AWG 0.250	455-1149-2-ND - CONN QC RCPT 14-20AWG 0.187455-1106-2-ND - CONN QC RCPT 20-26AWG 0.187	455-1149-2-ND - CONN QC RCPT 14-20AWG 0.187455-1106-2-ND - CONN QC RCPT 20-26AWG 0.187	455-1117-2-ND - CONN QC RCPT 14-18AWG 0.250455-1115-2-ND - CONN QC RCPT 18-22AWG 0.250	455-1149-2-ND - CONN QC RCPT 14-20AWG 0.187455-1106-2-ND - CONN QC RCPT 20-26AWG 0.187	-	-	-	-
Other Names	455-1106-2	(W)PS-250(N)455-1112PS-250	(W)PS-187(N)455-1108PS-187	(W)PS-187-2A-15(N)455-1109PS-187-2A-15	455-1113PS-250-2A-15	455-1110PS-187-3V	-	-	-	-
Material	-	Nyl	Nyl	Nyl	Nyl	Nyl	-	-	BRASS	BRASS
