16MXR82000MST20X35: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 8200uF, Through Hole Mount; CategoryPassive components capacitor; File Size79KB，4 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

16MXR82000MST20X35 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 16V, 20% +Tol, 20% -Tol, 8200uF, Through Hole Mount

16MXR82000MST20X35 Parametric

Parameter Name	Attribute value
Objectid	2022377990
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	8200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	1.086646 mA
Manufacturer's serial number	MXR
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	16 V
ripple current	2080 mA
surface mount	NO
Delta tangent	0.5
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

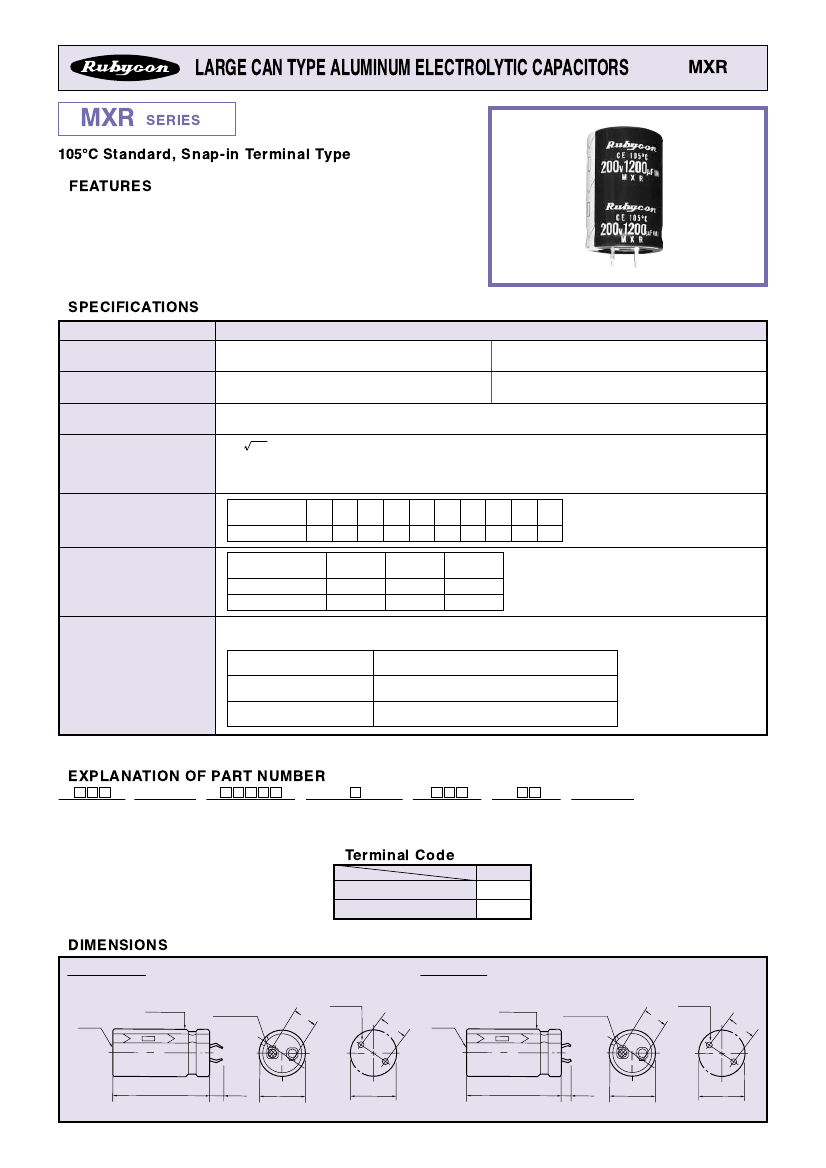

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

MXR

SERIES

105¡C Standard, Snap-in Terminal Type

♦

FEATURES

•

Load Life : 105°C 3000 hours.

•

Smaller size with higher ripple current endurance than MXP series.

♦

SPECIFICATIONS

Items

Category Temperature Range

Rated Voltage Range

Capacitance Tolerance

Ι=3

Leakage Current(MAX)

Characteristics

-40~+105°C

10~100V.DC

±20%(20°C,

120Hz)

(After 5 minutes application of rated voltage)

-25~+105°C

160~450V.DC

Ι=

Leakage Current

(µA)

Rated Voltage

(V)

Rated Capacitance

(µF)

(20°C, 120Hz)

Dissipation Factor(MAX)

Rated Voltage

10 16 25 35 50 63 80 100 160~ 315~

(V)

250 450

tan

0.55 0.50 0.45 0.40 0.35 0.30 0.25 0.20 0.15 0.15

Rated Voltage

(V)

Z(-25°C)/Z(20°C)

Z(-40°C)/Z(20°C)

10~100

160~250

315~450

(120Hz)

Impedance Ratio(MAX)

After applying rated voltage with rated ripple current for 3000hrs at 105°C, the capacitors shall meet the following requirements.

Capacitance Change

Endurance

Dissipation Factor

Leakage Current

Not more than 200% of the specified value.

Not more than the specified value.

Within

±20%

of the initial value.

♦

EXPLANATION

MXR

Rated Voltage

Series

OF PART NUMBER

DxL

Rated Capacitance

Capacitance Tolerance

Option

Terminal Code

Case Size

♦

Terminal

Code

Standard Terminal

Short Terminal

Blank

(mm)

•

Short terminal type

♦

DIMENSIONS

•

Standard terminal type

SLEEVE

VENT

2-ø2

NEGATIVE

±0.1

VENT

SLEEVE

2-ø2

NEGATIVE

±0.1

L±2

6±1

øD±1

MOUNTING HOLES

L±2

∗

4±0.5

∗For

ø35, 3.5±0.5

øD±1

MOUNTING HOLES
