TECHNICAL CHARACTERISTICS
MATERIAL
INSULATOR: PA 66
FLAMABILITY RATING: UL94-V0
COLOR: GREY/WHITE
WIRE GUARD: STAINLESS STEEL
CONTACT: BRASS
SOLDER TAIL PLATING: TIN
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 UP TO 105°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING:
WORKING VOLTAGE:
WITHSTANDING VOLTAGE:
CONTACT RESISTANCE:
STANDARD
c
us
CERTIFIED E315414
MECHANICAL
SOLID WIRE:
STRANDED WIRE:
28-14 AWG / 0.08-2.08 MM²
28-14 AWG / 0.08-2.08 MM²
cULus
16A
300VAC
1.3KV
20 mOhm max
A
B
A
B
WIRE STRIPE LENGTH: 6-7 MM
PITCH: 5.00 MM
SOLDERING
JEDEC LEAD FREE WAVE SOLDERING
PACKAGING
BOX
DIMENSION
A= 5.00 x (NB.PIN - 1)
B= 5.00 x (NB.PIN - 1) + 1
C
RoHS Compliant
G
F
E
D
C
B
A
REV
21-SEP-15
13-AVR-15
29-JUL-13
02-JUL-12
DATE
MECHANICAL
DWG REVIEW
DWG REVIEW
PDF
FILE
AK
QP
QL
GG
BY
APPROVAL: FBr
SCALE:
SHEET: 1/2
DRAW: MARVIN
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM

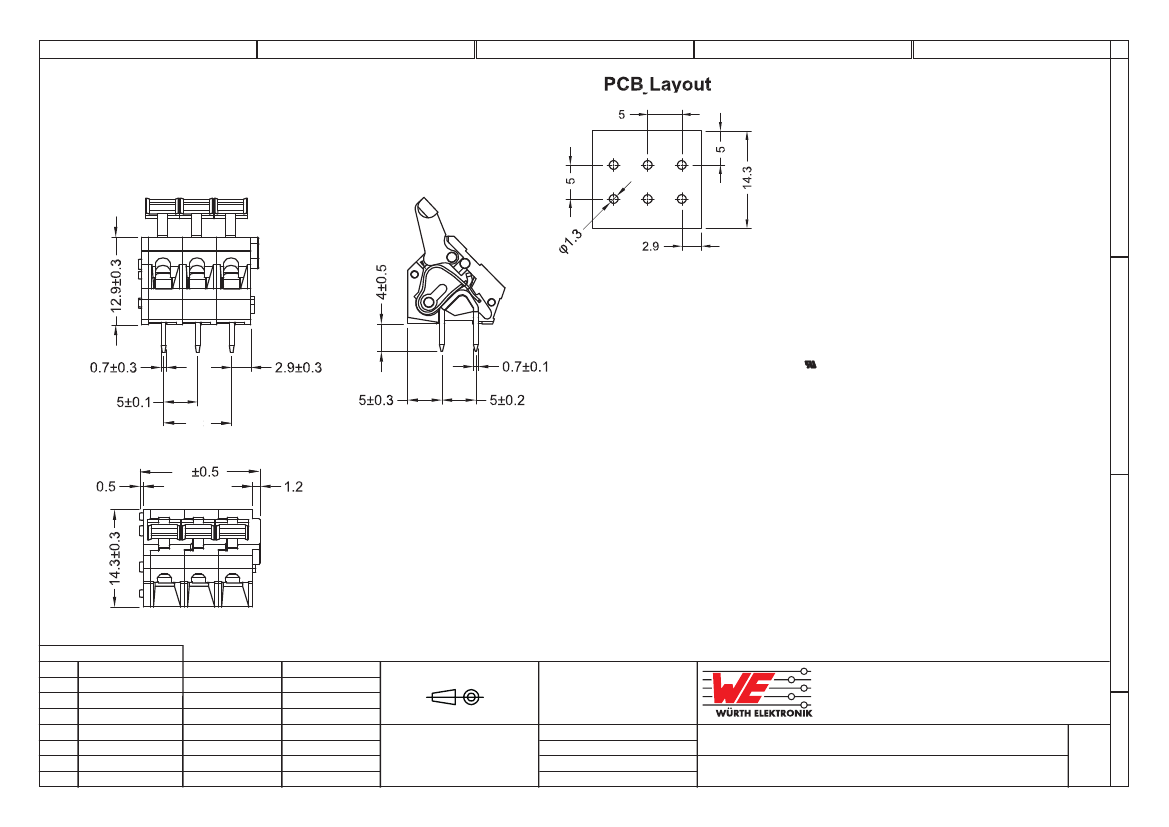

DESCRIPTION: SERIE 4147 - 5.00 MM SCREWLESS 45° ENTRY
2.00 MM² WIRES WR-TBL
WERI PART NO: 691 414 720 0xx B
SIZE
A4
D
1
2
3
4
5
Cautions and Warnings:
This electronic component is designed and developed with the intention for use
in general electronics equipments.
Before incorporating the components into any equipments in the field such as aerospace, aviation,
nuclear control, submarine, transportation, (automotive control, train control, ship control),
transportation signal, disaster prevention, medical, public information network etc. where higher safety
and reliability are especially required or if there is possibility of direct damage or injury to human body,
Wurth Elektronik must be asked for a written approval.
In addition, even electronic component in general electronic equipments, when used in electrical circuits
that require high safety, reliability functions or performance, the sufficient reliability evaluation-check
for the safety must be performed before by the user before usage.
A
B
C
RoHS Compliant
G
F
E
D
C
B
A
REV
10-SEP-14
DATE
PDF
FILE
QL
BY
APPROVAL: JC
SCALE:
SHEET:
2/2
DRAW: QL
WERI PART NO: DISCLAIMER
PROJECTION:
GENERAL TOLERANCE
.X = +/- 0.2
.XX = +/- 0.15
UNIT: MM
DESCRIPTION: DISCLAIMER
SIZE
A4
D
