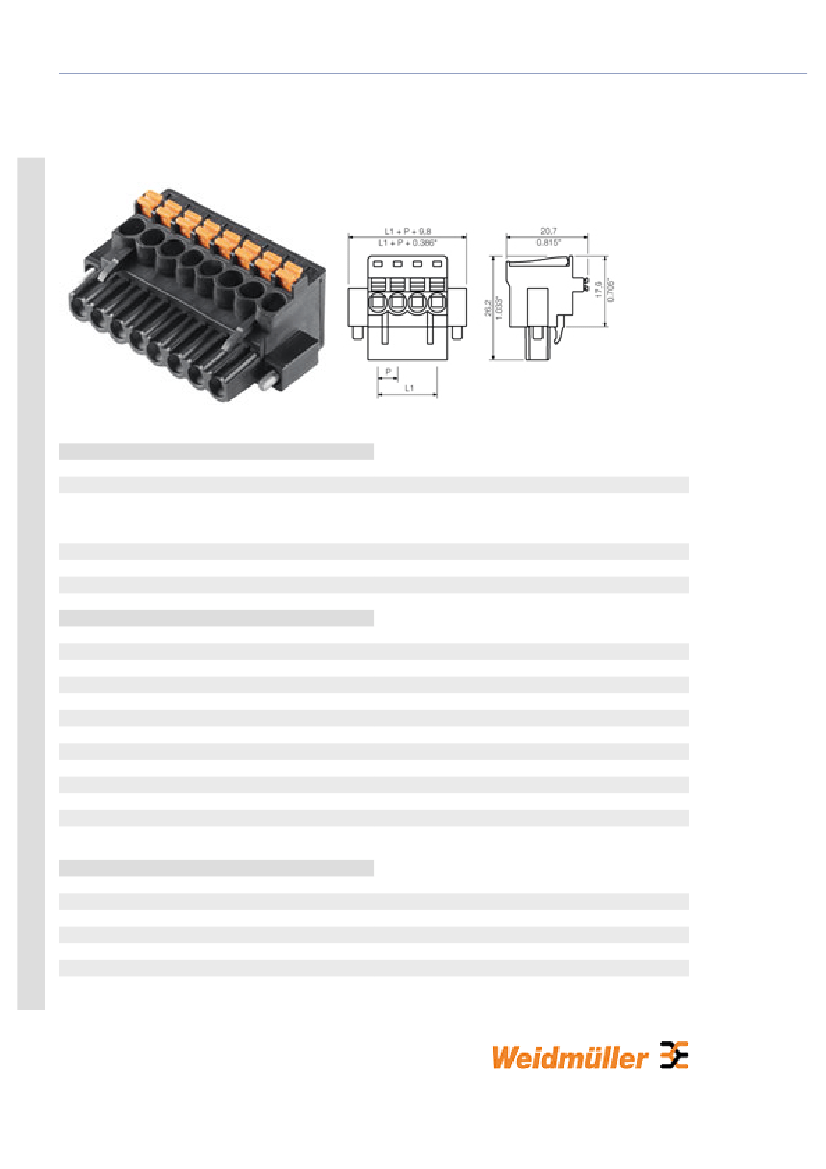

Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/90/270 | BLF 5.00/90F SN
Connectable conductors
Clamping range, min.
Clamping range, max.
Conductor connection cross-section AWG, min.
Conductor connection cross-section AWG, max.
Solid, min. H05(07) V-U
Solid, max. H05(07) V-U
Stranded, max. H07V-R
Stranded, min. H07V-R
Flexible, min. H05(07) V-K
Flexible, max. H05(07) V-K
w. wire end ferrule, DIN 46228 pt 1, min
with wire end ferrule, DIN 46228 pt 1, max.
w. plastic collar ferrule, DIN 46228 pt 4, min.
with plastic collar ferrule, DIN 46228 pt 4, max.
Gauge to EN 60999 a x b; ø
DIN IEC rating data
Rated current, min. No. of poles (Tu=20°C)
Rated current, max. No. of poles (Tu=20°C)
Rated current, no. of poles (Tu=40°C), min.
Rated current, no. of poles (Tu=40°C), max.
Rated voltage for overvoltage class/pollution
severity II/2
Rated voltage for overvoltage class/pollution
severity III/2
Rated voltage at overvoltage category/pollution
degree III/3
Rated impulse withstand voltage for overvoltage
class/pollution severity II/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/2
Rated impulse withstand voltage for overvoltage
class/pollution severity III/3
Short-time withstand current resistance
CSA rating data
Rated voltage (Use group B)
Rated current (use group B)
UL 1059 rating data
Rated voltage (use group B)
Rated current (use group B)
Approvals
Approvals institutes
Classifications
eClass 6.0
Notes
Notes
0.13 mm²
3.31 mm²
AWG 26
AWG 12
0.2 mm²
2.5 mm²
2 mm²
0 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
2.4 mm x 1.5 mm
18.5 A
6A
12.5 A
6A
400 V
320 V
250 V
4 kV
4 kV
4 kV
3 x 1s with 120 A
300 V
10 A
300 V
10 A
CSA; CURUS
27-26-07-08
-2-
Product catalogue | PCB connection systems | PCB plug-in connectors | Pitch 5.00 / 5.08 mm (0.197 / 0.200 inch) |
Female PUSH IN socket block with spring connection in 5.00/5.08 pitch | BLF 5.00-5.08/90/270 | BLF 5.00/90F SN
Notes
Similar products
Order No.
1979460000
1979470000
1979480000
1979490000
1979500000
1979510000
1979520000
1979530000
1979540000
1979550000
1979560000
1979570000
1979580000
1979590000
1979600000
1979610000
1979620000
1979630000
Part designation
BLF 5.00/02/90F SN BK BX
BLF 5.00/03/90F SN BK BX
BLF 5.00/04/90F SN BK BX
BLF 5.00/05/90F SN BK BX
BLF 5.00/06/90F SN BK BX
BLF 5.00/07/90F SN BK BX
BLF 5.00/08/90F SN BK BX
BLF 5.00/09/90F SN BK BX
BLF 5.00/10/90F SN BK BX
BLF 5.00/11/90F SN BK BX
BLF 5.00/12/90F SN BK BX
BLF 5.00/13/90F SN BK BX
BLF 5.00/14/90F SN BK BX
BLF 5.00/15/90F SN BK BX
BLF 5.00/16/90F SN BK BX
BLF 5.00/17/90F SN BK BX
BLF 5.00/18/90F SN BK BX
BLF 5.00/19/90F SN BK BX
Version
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 2, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 3, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 4, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 5, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 6, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 7, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 8, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 9, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 10, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 11, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 12, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 13, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 14, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 15, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 16, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 17, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 18, 90°, Box
PCB plug-in connector, PUSH IN, Clamping range, max.: 3.31 mm²,
Pitch in mm: 5 mm, No. of poles: 19, 90°, Box
-3-
