3-5331677-8: Descriptionconn socket rcpt .026-.029 30au; CategoryThe connector; File Size89KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-5331677-8 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-5331677-8	-	-	View	Buy Now

3-5331677-8 Overview

conn socket rcpt .026-.029 30au

3-5331677-8 Parametric

Parameter Name	Attribute value
Datasheets
5331677
Product Photos
3-5331677-8
RoHS Informati
3-5331677-8 Statement of Compliance
RoHS 2 Stateme

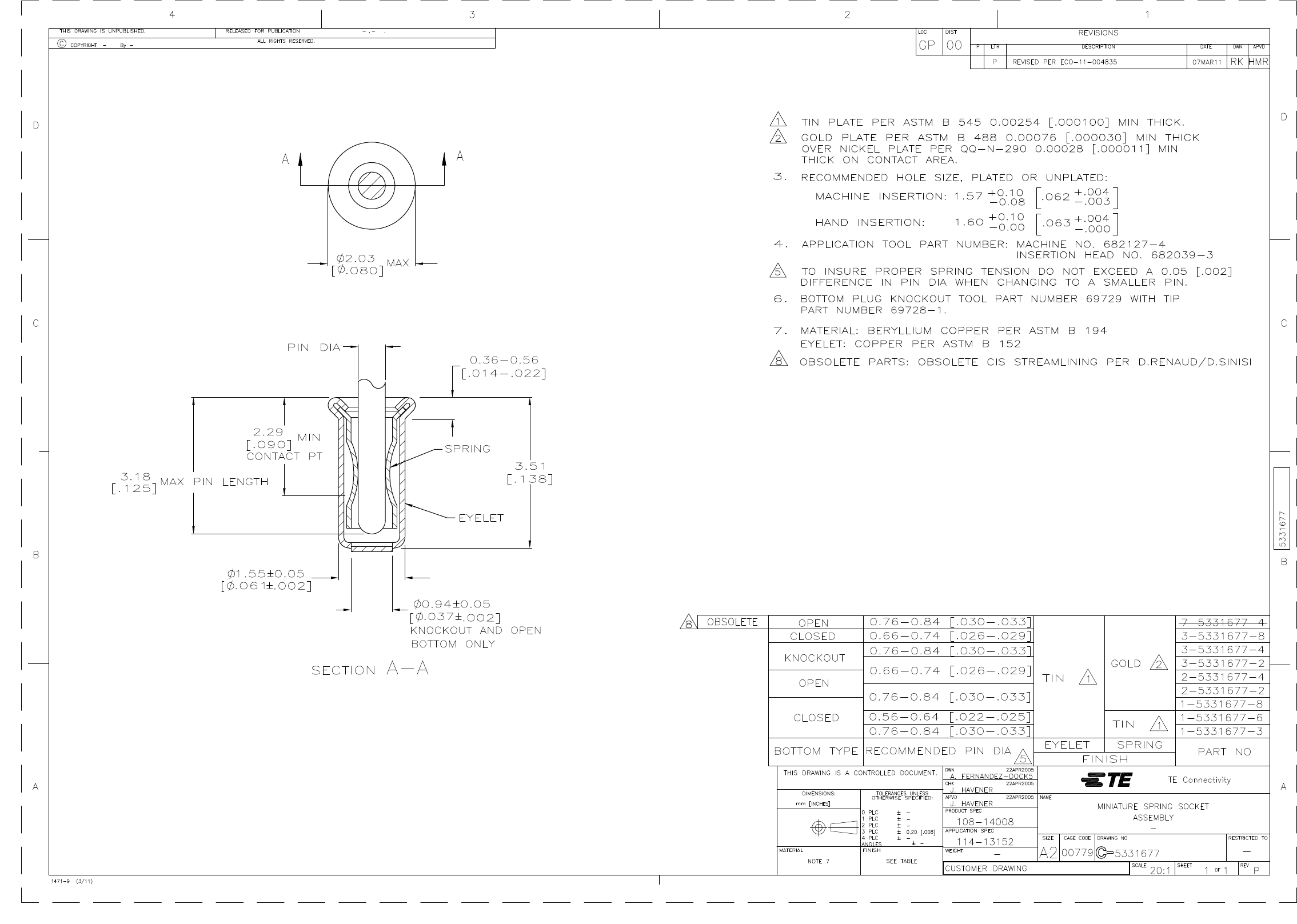

Catalog Drawings
Flat Bottom
3D Model
3-5331677-8.pdf
Standard Package	2,000
Category	Connectors, Interconnects
Family	Terminals - PC Pin Receptacles, Socket Connectors
Packaging	Bulk
Tail Type	No Tail
Terminati	Solde
Length - Overall	0.138" (3.51mm)
Accepts Pin Diamete	0.026" ~ 0.029" (0.66mm ~ 0.74mm)
Mounting Hole Diamete	0.062" ~ 0.063" (1.57mm ~ 1.60mm)
Pin Hole Diamete	-
Flange Diamete	0.080" (2.03mm)
Tail Diamete	-
Socket Depth	0.125" (3.18mm)
Contact Material	Beryllium Coppe
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Features	Closed Bottom
Operating Temperature	-
Board Thickness	-
Insertion Force	-
Dynamic Catalog	Miniature Spring Sockets
Other Names	353316778A32375

Preview

Download Datasheet

View All

3-5331677-8 Related Products

	3-5331677-8	1-5331677-8	3-5331677-2	1-5331677-6	1-5331677-3	3-5331677-4
Description	conn socket rcpt .026-.029 30au	conn socket rcpt .030-.033 30au	conn socket rcpt .026-.029 30au	conn socket rcpt .022-.025 tin	conn socket rcpt .030-.033 tin	conn socket rcpt .030-.033 30au
Standard Package	2,000	2,000	20,000	20,000	10,000	10,000
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors	Terminals - PC Pin Receptacles, Socket Connectors
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Tail Type	No Tail	No Tail	No Tail	No Tail	No Tail	No Tail
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Length - Overall	0.138" (3.51mm)	0.138" (3.51mm)	0.138" (3.51mm)	0.138" (3.51mm)	0.138" (3.51mm)	0.138" (3.51mm)
Accepts Pin Diamete	0.026" ~ 0.029" (0.66mm ~ 0.74mm)	0.030" ~ 0.033" (0.76mm ~ 0.84mm)	0.026" ~ 0.029" (0.66mm ~ 0.74mm)	0.022" ~ 0.025" (0.56mm ~ 0.64mm)	0.030" ~ 0.033" (0.76mm ~ 0.84mm)	0.030" ~ 0.033" (0.76mm ~ 0.84mm)
Mounting Hole Diamete	0.062" ~ 0.063" (1.57mm ~ 1.60mm)	0.062" ~ 0.063" (1.57mm ~ 1.60mm)	0.062" ~ 0.063" (1.57mm ~ 1.60mm)	0.062" ~ 0.063" (1.57mm ~ 1.60mm)	0.062" ~ 0.063" (1.57mm ~ 1.60mm)	0.062" ~ 0.063" (1.57mm ~ 1.60mm)
Flange Diamete	0.080" (2.03mm)	0.080" (2.03mm)	0.080" (2.03mm)	0.080" (2.03mm)	0.080" (2.03mm)	0.080" (2.03mm)
Socket Depth	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)	0.125" (3.18mm)
Contact Material	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe	Beryllium Coppe
Contact Finish	Gold	Gold	Gold	Ti	Ti	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	100µin (2.54µm)	100µin (2.54µm)	30µin (0.76µm)
Features	Closed Bottom	Closed Bottom	Knockout Bottom	Closed Bottom	Closed Bottom	Knockout Bottom
